Product Summary

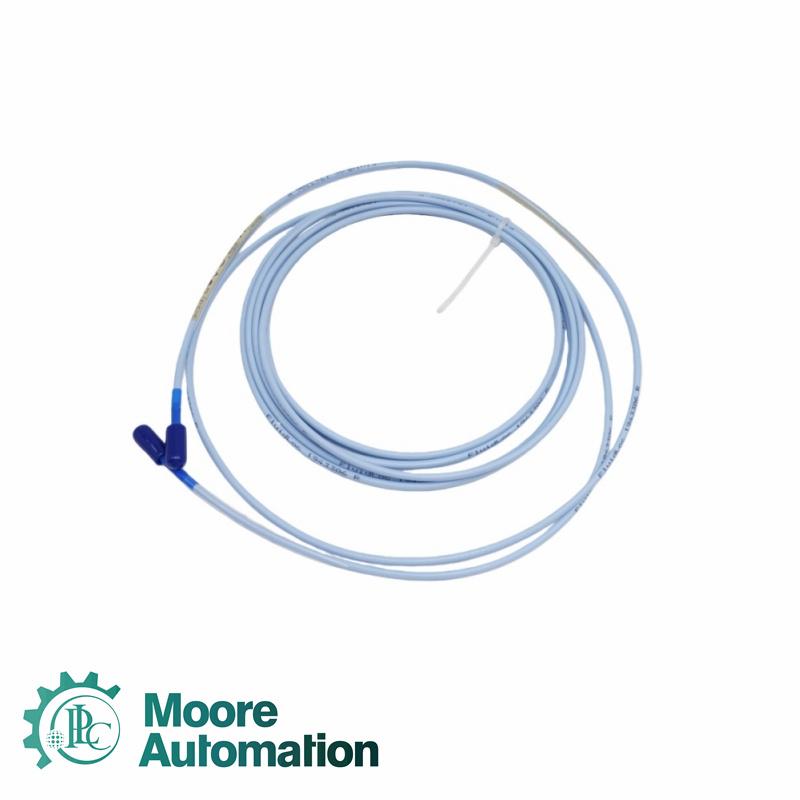

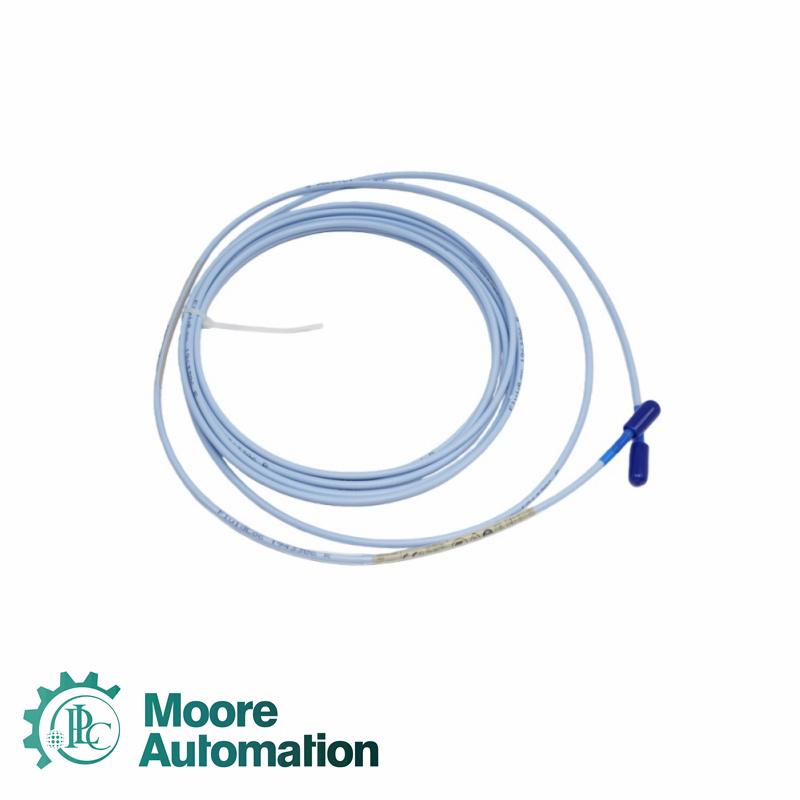

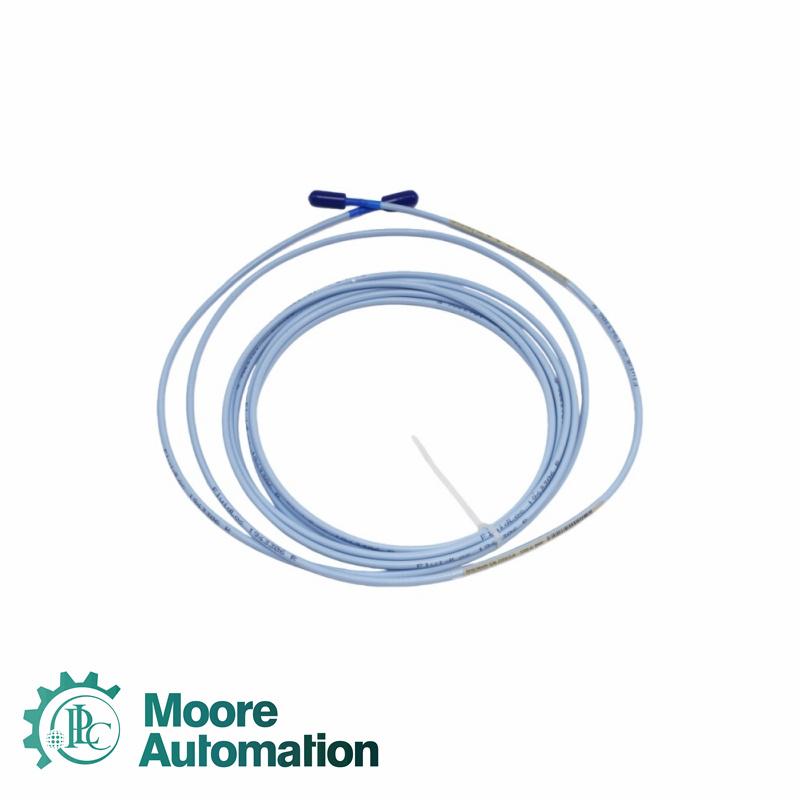

The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems.
|
Call for Pricing? |
|
|
Sale Manager: John Yang |
Email: sales3@askplc.com |
|
Mobile(WhatsApp): 86-18150117685 |
|
Full Details
|
Cable Length Option |
4.0 meters (11.5 feet) |
|
Connector Protector and Cable Option |
Armored cable |
|
Agency Approval Option |
Not required |
|
Dimension |
20 × 20 × 2 cm |
|
Weight |
0.2 kg |
|
Extension Cable Capacitance |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring |
0.2 to 1.5 mm² (16 to 24 AWG) |
|
Linear Range |
2 mm (80 mils) |
|
Standard Cable Material |
75 Ω triaxial, fluoroethylene propylene (FEP) insulated |
|
Operating Temperature Range |
-52°C to +177°C (-62°F to +350°F) |
|
Storage Temperature Range |
-52°C to +177°C (-62°F to +350°F) |
|
Minimum Cable Bend Radius |
25.4 mm (1.0 in) |
|
Connector Material |
Gold-plated brass or gold-plated beryllium copper |
|
Maximum Connector Torque |
0.565 N•m (5 in•lbf) |
Frequently Asked Questions
111
If You Choose Us！
1. We will provide you the product info and picture
2. Large stock, fast delivery
3. Competitive prices and immediate quotation
4. Professional service, professional technical support
5. Strict test machine before shipment.
6. We could help you to get any components which is difficult to get
Application
Thermal Power Plants: Using a 4-meter armored metal cable to transmit high-frequency vibration signals from the main turbine shaft over long distances while minimizing electromagnetic interference around high-temperature enclosures.
Refineries: Transmitting displacement signals in explosion-proof hydrocracking compressor units operating in oil-contaminated environments, with the stainless-steel armor layer effectively protecting against mechanical wear and external tensile forces.
Hydropower Plants: Connecting low-speed shaft runout probes across wide turbine bearing supports, ensuring reliable transmission of non-contact low-frequency clearance variation signals without signal loss.
Ethylene Plants: Extending dynamic oil-film and Keyphasor signals from the core bearings of cracked-gas compressor trains to field instrument cabinets, providing high-precision and highly interchangeable electrical connections.
Natural Gas Compressor Stations: Applied in high-temperature sections of gas turbine-driven compressors for long-distance pipelines, using the armored cable's high-temperature resistance for long-distance transmission of rotational speed and shaft displacement data.
