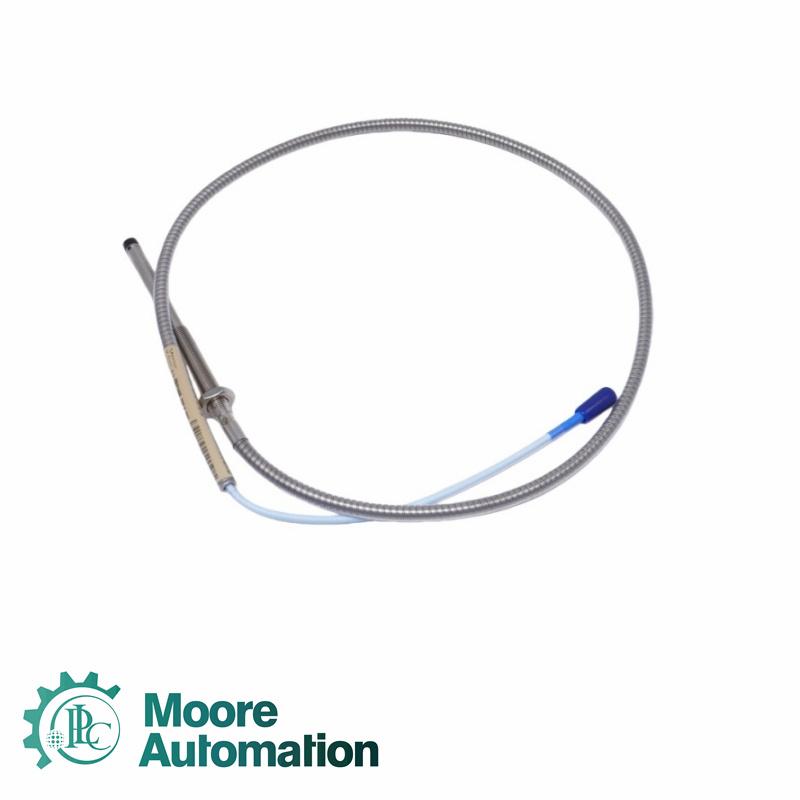

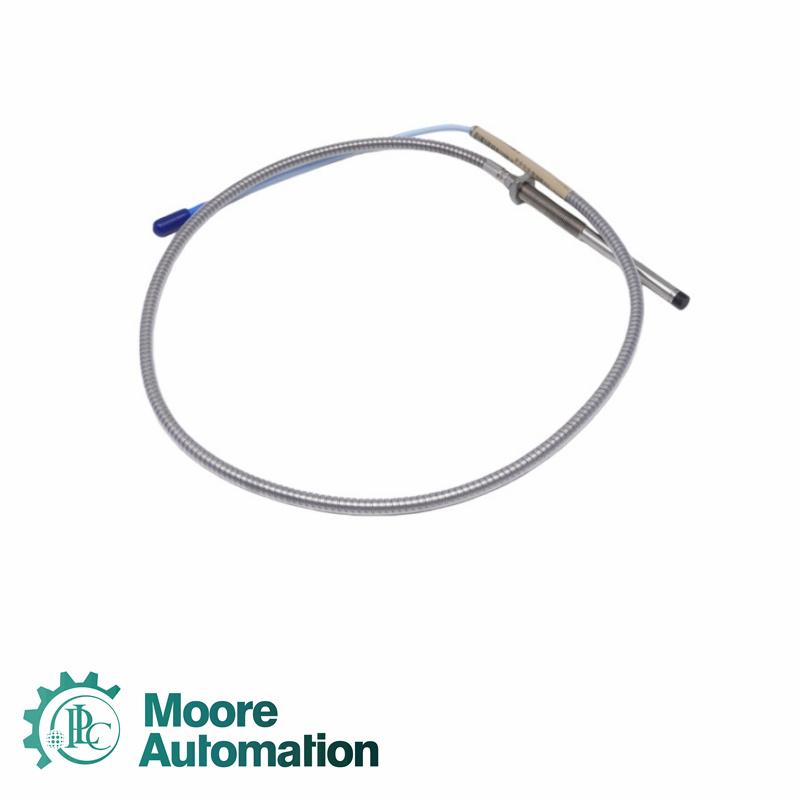

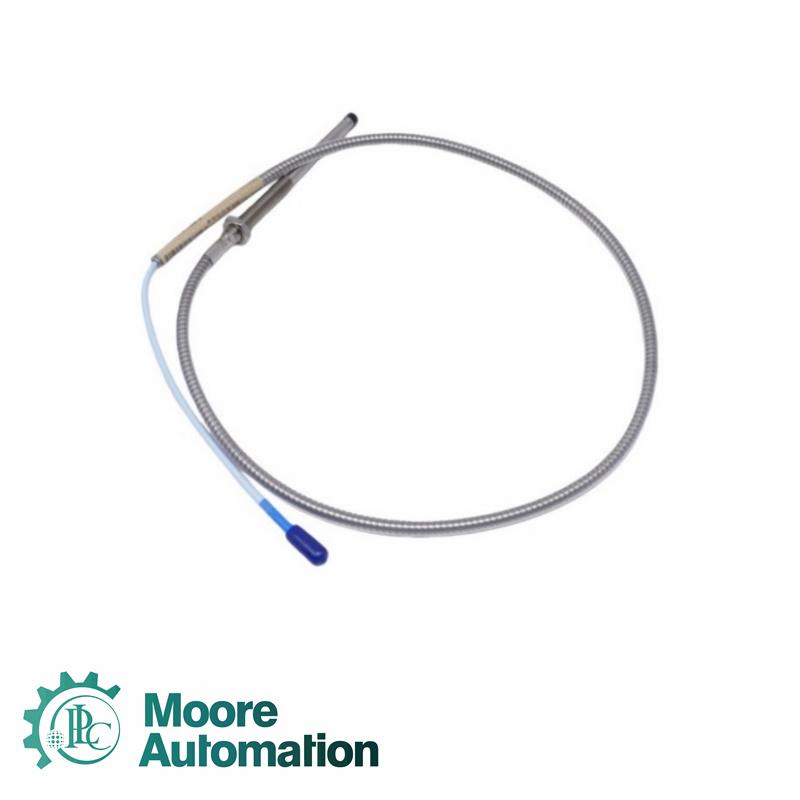

The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. |
|
|
Property |
Characteristics |
|
Unthreaded Length Option (Minimum): |
60 mm |
|
Overall Case Length Option (Minimum): |
130 mm |
|
Total Length: |
5.0 m (16.4 ft) |
|
Connector Type: |
Miniature coaxial ClickLoc connector with protector, standard cable |
|
Agency Approval: |
CSA, ATEX, IECEx |
|
Probe Case Thread: |
M10 x 1 |
|
Max Thread Engagement Length: |
15 mm |
|
Dimensions: |
18 x 18 x 2 cm |
|
Weight: |
0.1 kg |
|
Operating Temperature: |
-52 °C to +177 °C (-62 °F to +350 °F) |
|
Storage Temperature: |
-52 °C to +177 °C (-62 °F to +350 °F) |
|
Supply Sensitivity: |
< 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm² (16 to 24 AWG) |
Over the years, we have grown into a trusted global supplier with operations centers in Xiamen, China and Hong Kong, China. Our business spans the globe, with most of our valued customers located in the Middle East, Europe, the UK, Asia, and the USA.
|
Quick to get a competitive price |
|
Sale Manager: John Yang |
|
More brands you may want to find |
|
----(DCS)Distributed Control System ABB/Invensys/Foxboro/Invensys Triconex/Westinghouse/Woodword/HIMA/Yokogawa/Honeywell/Emerson ----(PLC)Programmable Logic Controller Rockwell/Allen-Bradley/Schneider/Modicon/GE Fnauc/Siemens/Prosoft/Bachmann/Woodhead ----(TSI)Turbocharger Stratified Injection Bently Nevada/EPRO/ENTEK |
Application
Radial vibration: Measures the relative vibration of the shaft within the bearing.
Axial displacement (thrust): Monitors the movement of the shaft relative to the thrust bearing to prevent collisions.
Keyphasor: Provides speed and phase reference.
Typical plants: Power plants, chemical plants, oil refineries, large pumping stations.
FAQ
Q: What is the 330104-06-13-05-01-05?
A: It is a 3300 XL 8 mm Proximity Probe.
Q: Does this 330104-06-13-05-01-05 require an extension cable?
A: Yes. A 0.5-meter probe typically requires a 4.5-meter or 8.5-meter extension cable to connect to the preamplifier.
Q: Can 330104-06-13-05-01-05 be used with non-ferromagnetic metals?
A: The standard 3300 XL is calibrated for 4140 steel. If the target material is aluminum, stainless steel, or copper, its linearity and sensitivity will deviate significantly.
Q: How to Check Price and Availability for 330104-06-13-05-01-05?
A: Please contact John Yang for sales at +86-18150117685 or request a quote.
