Brief description |

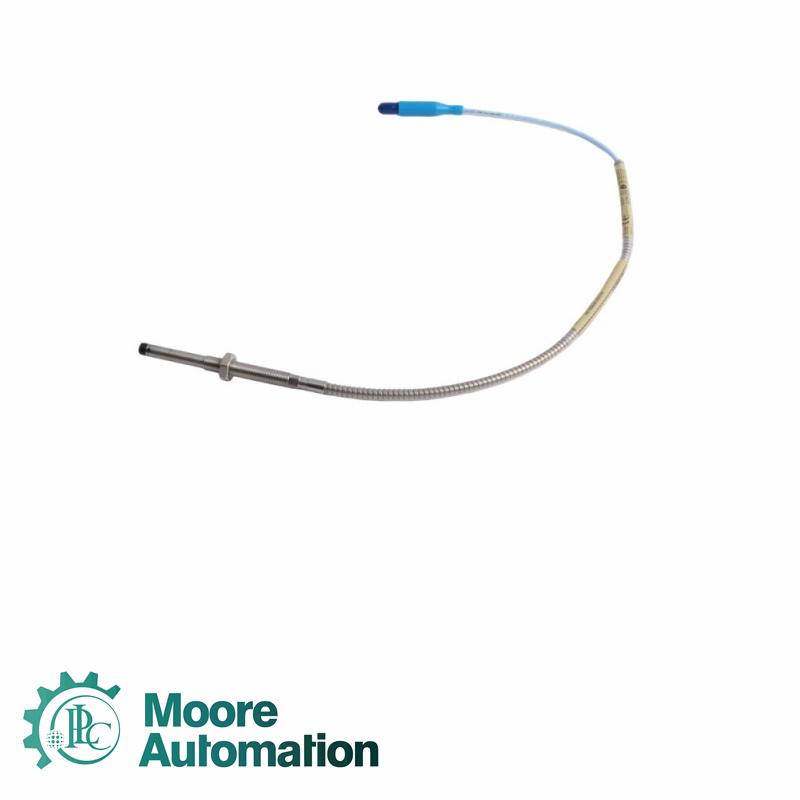

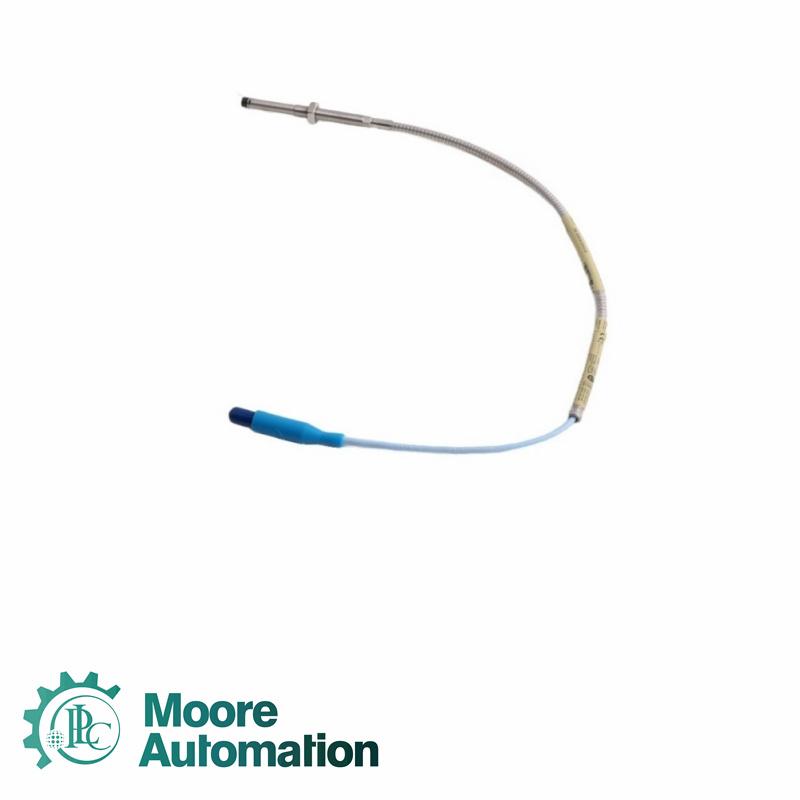

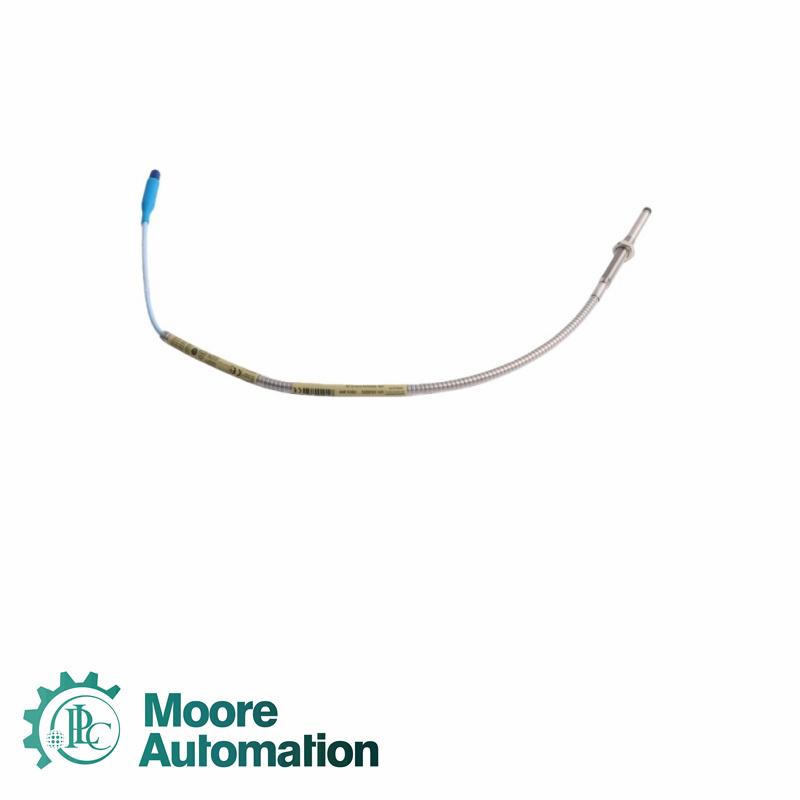

The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
|
Technical parameters |
|
|
Unthreaded Length Option (Minimum Unthreaded Length) |
40 mm |
|
Overall Case Length Option (Minimum Case Length) |
90 mm |
|
Total Length Option |
5.0 meters (16.4 feet) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread |
M10×1 |
|
Maximum Length of Thread Engagement |
15 mm |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance |
50 Ω |
|
Field Wiring |
0.2 to 1.5 mm² (16 to 24 AWG) |
|
Linear Range |
2 mm (80 mils) |
|
Probe Tip Material |
Polyphenylene sulfide |
|
Probe Case Material |
AISI 303 or 304 stainless steel |
|
Contact me for a big surprise！ |
Email: sales3@askplc.com
Mobile(WhatsApp): 86-18150117685
John Yang is 24 hours online for you
|
Trust moore--Trustworthy global supplier |
Over the years, we have grown into a trusted global supplier with operations centers in Xiamen, China and Hong Kong, China. Our business spans the globe, with most of our valued customers located in the Middle East, Europe, the UK, Asia, and the USA.
|
Application |
Oil Refining Plants: Measure shaft displacement and vibration of rotating equipment.
LNG Plants: Monitor compressor and pump bearing oil film vibration.
Chemical Plants: Protect compressors and pumps from abnormal vibration.
Steel Plants: Monitor blower and fan shaft conditions.
Mining Plants: Monitor mill bearing low-frequency shaft swing.
|
FAQ |
Q: What is the unthreaded length of 330104-04-09-50-02-05?
A: The minimum unthreaded length dimension is 40 mm.
Q: What is the overall housing length of 330104-04-09-50-02-05?
A: The minimum overall housing length dimension is 90 mm.
Q: What is the overall length of 330104-04-09-50-02-05?
A: The overall length is 5.0 meters (16.4 feet).
Q: What cable specification is used for 330104-04-09-50-02-05?
A: It uses standard cable with Miniature coaxial ClickLoc connector.
Q: What is the weight of 330104-04-09-50-02-05?
A: The weight is 0.1 kg.
|
