Brief description |

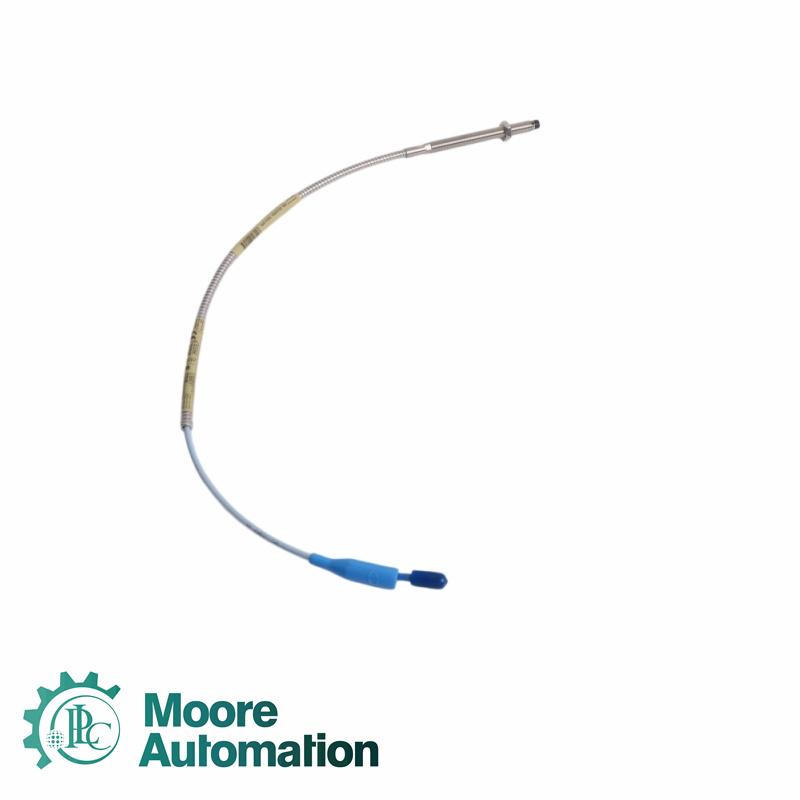

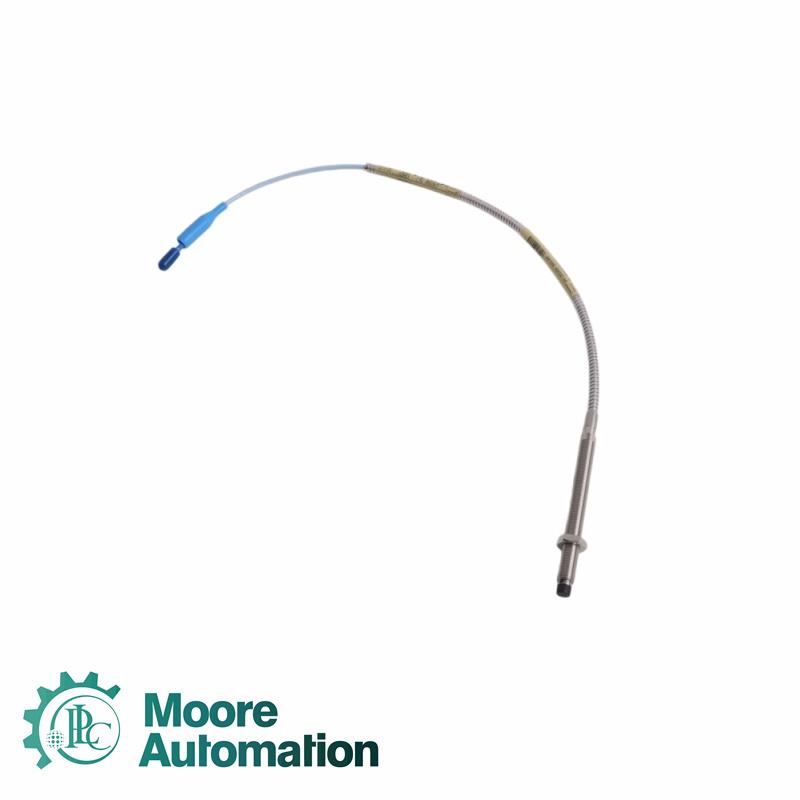

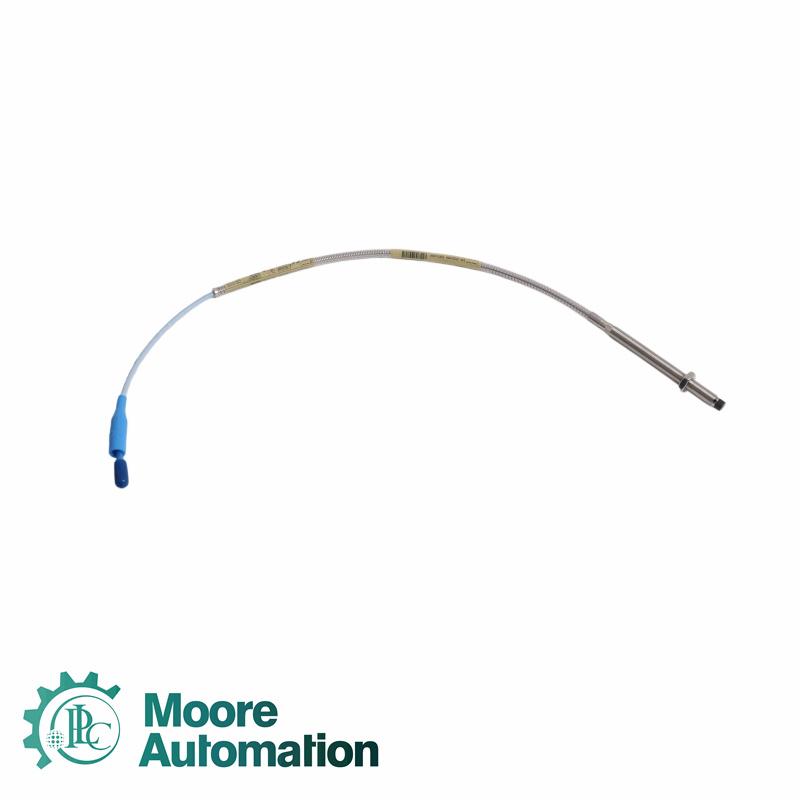

The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
|
Technical parameters |
|
|
Unthreaded Length Option (Minimum Unthreaded Length) |
0.0 mm |
|
Overall Case Length Option (Minimum Case Length) |
100 mm |
|
Total Length Option |
0.5 meter (1.6 feet) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, FluidLoc cable |
|
Agency Approval Option |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread |
M10×1 |
|
Maximum Length of Thread Engagement |
15 mm |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance |
50 Ω |
|
Field Wiring |
0.2 to 1.5 mm² (16 to 24 AWG) |
|
Linear Range |
2 mm (80 mils) |
|
Probe Tip Material |
Polyphenylene sulfide |
|
Probe Case Material |
AISI 303 or 304 stainless steel |
|
Contact me for a big surprise！ |
Email: sales3@askplc.com
Mobile(WhatsApp): 86-18150117685
John Yang is 24 hours online for you
|
Trust moore--Trustworthy global supplier |
Over the years, we have grown into a trusted global supplier with operations centers in Xiamen, China and Hong Kong, China. Our business spans the globe, with most of our valued customers located in the Middle East, Europe, the UK, Asia, and the USA.
|
Application |
Thermal Power Plants: Monitor turbine generator shaft vibration and axial displacement.
Hydroelectric Power Plants: Monitor hydro generator shaft runout and axial movement.
Petrochemical Plants: Monitor heavy-duty compressors and blower rotors.
Steel Plants: Monitor blast furnace blowers and gearbox shaft conditions.
Natural Gas Plants: Monitor turbine and compressor bearing displacement.
|
FAQ |
Q: What is the overall housing length of 330104-00-10-05-12-05?
A: The overall housing length dimension is 100 mm.
Q: What is the overall length of 330104-00-10-05-12-05?
A: The overall length is 0.5 meters (1.6 feet).
Q: What cable and connector specifications are used for 330104-00-10-05-12-05?
A: It uses FluidLoc cable and Miniature coaxial ClickLoc connector.
Q: What is the housing thread specification of 330104-00-10-05-12-05?
A: The thread specification is M10x1.
Q: What is the linear range of 330104-00-10-05-12-05?
A: The linear range is 2 mm (80 mils).
|
