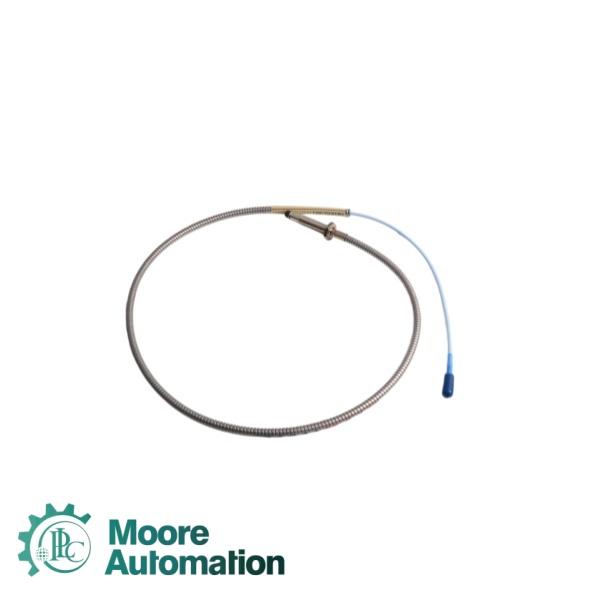

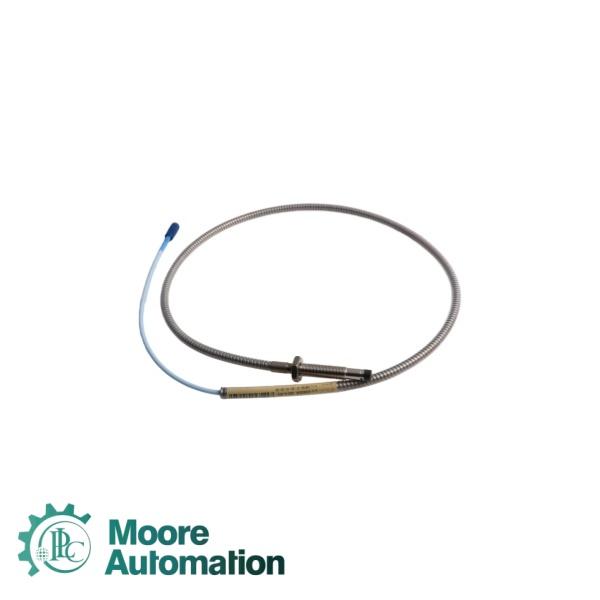

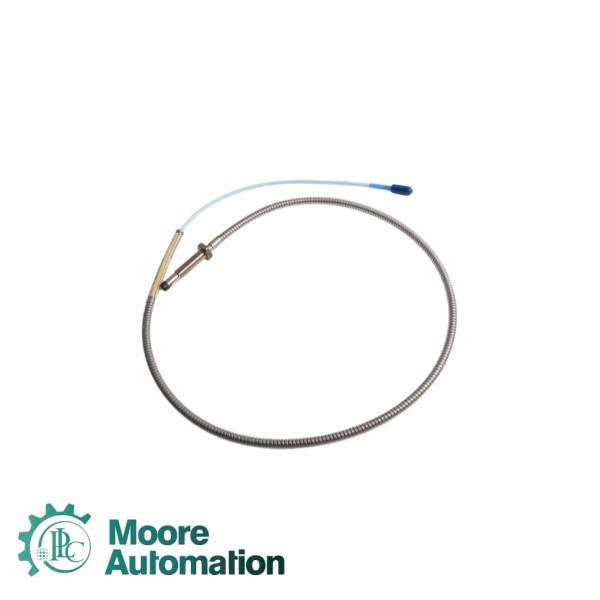

Bently Nevada 330104-01-15-50-02-05 3300 XL 8 mm Proximity Probes

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

Brand:
Bently Nevada
Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Product Origin:
USA
Lead Time:
3-5 days

Product Detail

Sale Manager:	Email:	Mobile(WhatsApp):
Yuki Huang	Sales6@askplc.com	+86-17359287459

Item Details

Unthreaded Length	0 1=10mm
Overall Case Length	1 5=150mm
Total Length	50:5.0 meters (16.4 feet)
Connector and Cable-Type	02:Miniature coaxial ClickLoc connector, standard cable
Agency Approval	05:CSA, ATEX, IECEx Approvals
Sensitivity (ISF)	7.87 V/mm (200 mV/mil) ±5%
Linear Range	2 mm (80 mils)
Linear Range Start	0.25 mm (10 mils) from probe tip
Frequency Response	0 to 10 kHz (±3 dB)
Output Signal	Negative DC voltage, proportional to gap (typically -1 V to -17 Vdc)
Recommended Gap Setting	1.27 mm (50 mils) at -9 Vdc
Resolution	<1 μm (typical)
Linearity Error	< ±1% of full scale
Probe (Operating Temperature)	-51°C to +177°C (-60°F to +351°F)
Extension Cable (Operating Temperature)	-51°C to +177°C (-60°F to +351°F)
Storage Temperature	-55°C to +200°C
Minimum Target Material	AISI 4140 steel (or equivalent electromagnetic properties)
Minimum Shaft Diameter	76.2 mm (3 inches)
Minimum Target Size	15.2 mm (0.6 inches)

Features

One of the key advantages of the 330104-01-15-50-02-05 is its full interchangeability with other 3300 XL 8 mm system components. The 330104-01-15-50-02-05 can be mixed and matched with various probes, extension cables, and Proximitor sensors without requiring individual component match calibration.

The 330104-01-15-50-02-05 delivers a standard Incremental Scale Factor (ISF) of 7.87 V/mm (200 mV/mil) with ±5% accuracy at room temperature. The 330104-01-15-50-02-05 also maintains deviation from best fit straight line (DSL) of less than ±0.025 mm (±1 mil).

The 330104-01-15-50-02-05 offers a frequency response of 0 to 10 kHz (±3 dB), making the 330104-01-15-50-02-05 suitable for capturing both low-frequency position changes and high-frequency vibration signals.

The 330104-01-15-50-02-05 is built to withstand harsh industrial environments. The probe tip of the 330104-01-15-50-02-05 operates reliably from -51°C to +177°C (-60°F to +351°F), with certain configurations supporting extended ranges up to +218°C (+425°F).

The 330104-01-15-50-02-05 features a probe tip made of Polyphenylene sulfide (PPS) and a probe case constructed from AISI 303/304 stainless steel, ensuring durability and corrosion resistance in demanding industrial settings.

The 330104-01-15-50-02-05 weighs only 0.16 kg (0.35 lbs) and measures approximately 1.8 × 1.6 × 120 cm, making the 330104-01-15-50-02-05 easy to handle and install in confined machinery spaces.

Q & A

Q: What is Bently Nevada known for?

A: Bently Nevada is known for being a global leader in machinery protection and condition monitoring systems for critical rotating equipment.

Q: What industries does Bently Nevada serve?

A: Oil & gas, power generation, chemical processing, mining, and pulp & paper industries.

Q: What types of measurements do Bently Nevada products provide?

A: Vibration, axial position, speed, eccentricity, temperature, and casing expansion monitoring.

Q: Are Bently Nevada products compliant with international standards?

A: Yes, they comply with API 670, IEC, ISO, ATEX, CSA, and IECEx standards.

Q: What is the 3500 monitoring system?

A: The 3500 system is a rack-based machinery protection system that provides continuous online monitoring, alarm detection, and relay outputs for machine shutdown.
