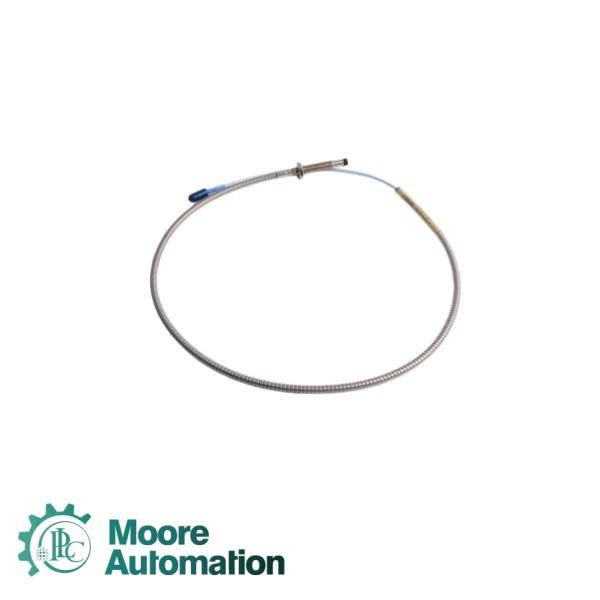

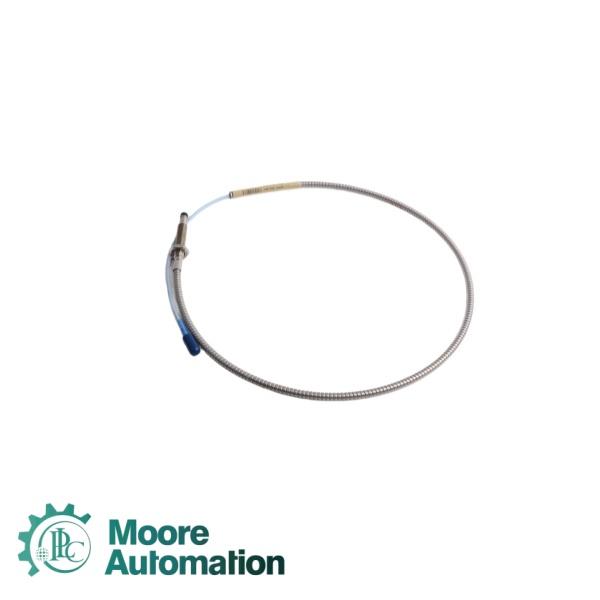

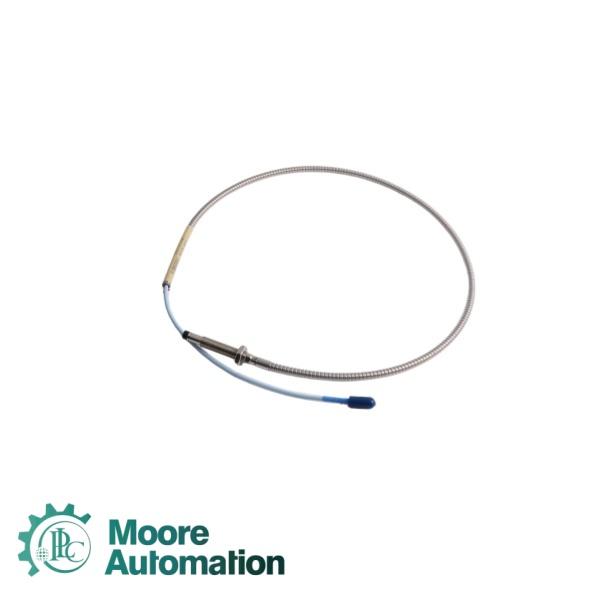

Bently Nevada 330104-01-09-50-02-05 3300 XL 8 mm Proximity Probes

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

Brand:
Bently Nevada
Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Product Origin:
USA
Lead Time:
3-5 days

Product Detail

Sale Manager:	Email:	Mobile(WhatsApp):
Yuki Huang	Sales6@askplc.com	+86-17359287459

Item Details

Unthreaded Length	0 1=10mm
Overall Case Length	0 9=90mm
Total Length	50:5.0 meters (16.4 feet)
Connector and Cable-Type	02:Miniature coaxial ClickLoc connector, standard cable
Agency Approval	05:CSA, ATEX, IECEx Approvals
Sensitivity (ISF)	7.87 V/mm (200 mV/mil) ±5%
Linear Range	2 mm (80 mils)
Linear Range Start	0.25 mm (10 mils) from probe tip
Frequency Response	0 to 10 kHz (±3 dB)
Output Signal	Negative DC voltage, proportional to gap (typically -1 V to -17 Vdc)
Recommended Gap Setting	1.27 mm (50 mils) at -9 Vdc
Resolution	<1 μm (typical)
Linearity Error	< ±1% of full scale (≤ ±38 μm)
Probe (Operating Temperature)	-51°C to +177°C (-60°F to +351°F)
Extension Cable (Operating Temperature)	-51°C to +177°C (-60°F to +351°F)
Storage Temperature	-55°C to +200°C (-67°F to +392°F)
Minimum Target Material	AISI 4140 steel (or equivalent electromagnetic properties)
Minimum Shaft Diameter	76.2 mm (3 inches)
Minimum Target Size	15.2 mm (0.6 inches) diameter

Features

The 330104-01-09-50-02-05 delivers a standard Incremental Scale Factor (ISF) of 7.87 V/mm (200 mV/mil) with ±5% accuracy . The linearity error of the 330104-01-09-50-02-05 is within ±1% of full scale .

The 330104-01-09-50-02-05 is built to withstand harsh industrial environments. The probe tip of the 330104-01-09-50-02-05 operates reliably from -51°C to +177°C, ensuring dependable performance in extreme conditions .

One of the key advantages of the 330104-01-09-50-02-05 is its full interchangeability with other 3300 XL 8 mm system components. The 330104-01-09-50-02-05 can be mixed and matched with various probes, extension cables, and Proximitor sensors without requiring individual component match calibration .

The 330104-01-09-50-02-05 features a probe tip made of Polyphenylene sulfide (PPS) and a probe case constructed from AISI 303/304 stainless steel, ensuring durability and corrosion resistance in demanding industrial settings .

The 330104-01-09-50-02-05 weighs only 0.16 kg and measures approximately 1.8 × 1.6 × 120 cm, making the 330104-01-09-50-02-05 easy to handle and install in confined machinery spaces .

The 330104-01-09-50-02-05 offers a resolution of <1 μm for detailed dynamic motion analysis, enabling precise detection of small-scale vibration and position changes.

Q & A

Q: What is Bently Nevada known for?

A: Bently Nevada is known for being a global leader in machinery protection and condition monitoring systems for critical rotating equipment.

Q: What industries does Bently Nevada serve?

A: Oil & gas, power generation, chemical processing, mining, and pulp & paper industries.

Q: What types of measurements do Bently Nevada products provide?

A: Vibration, axial position, speed, eccentricity, temperature, and casing expansion monitoring.

Q: Are Bently Nevada products compliant with international standards?

A: Yes, they comply with API 670, IEC, ISO, ATEX, CSA, and IECEx standards.

Q: What is the 3500 monitoring system?

A: The 3500 system is a rack-based machinery protection system that provides continuous online monitoring, alarm detection, and relay outputs for machine shutdown.
