Product Summary

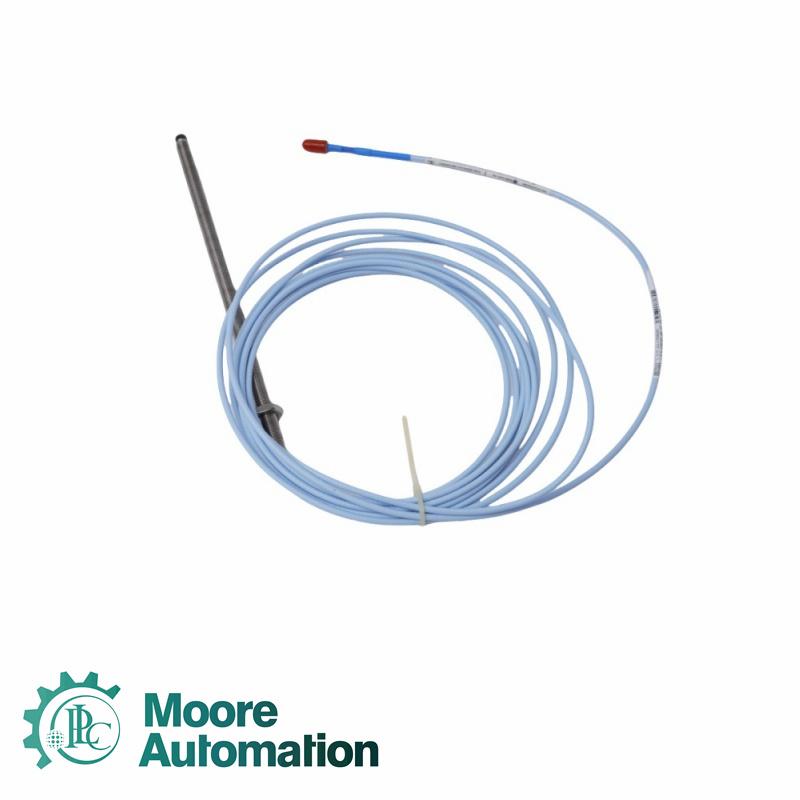

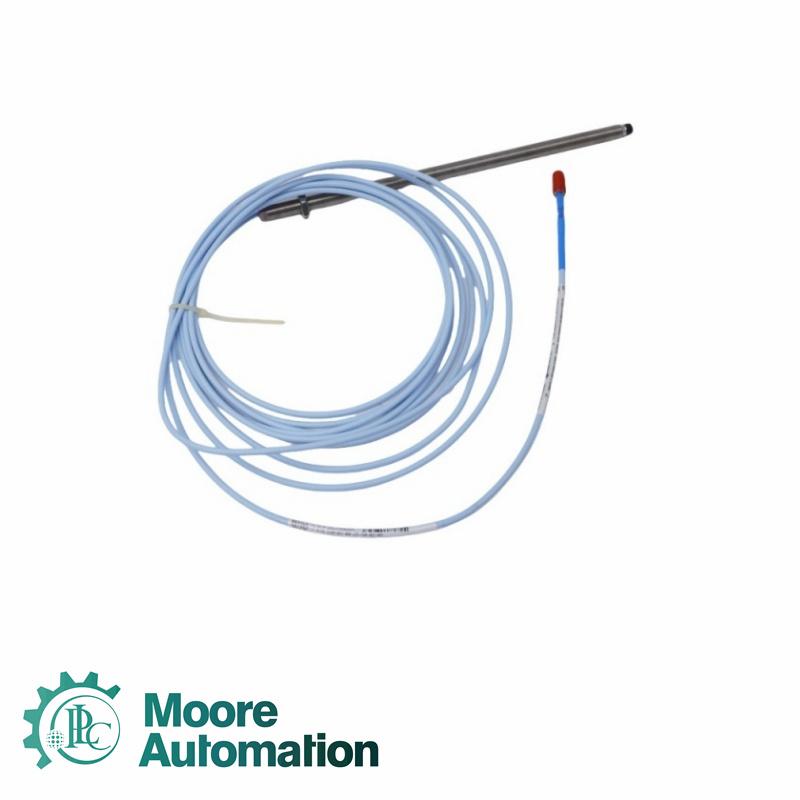

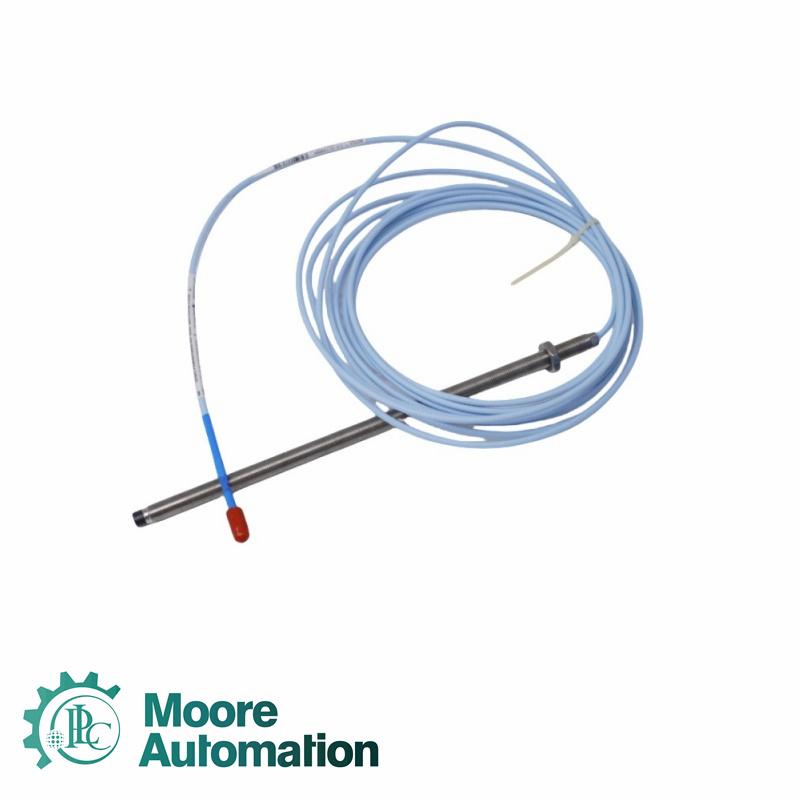

The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems.
|
Call for Pricing? |
|
|
Sale Manager: John Yang |
Email: sales3@askplc.com |
|
Mobile(WhatsApp): 86-18150117685 |
|
Full Details
|
Unthreaded Length Option (Minimum unthreaded length) |
0 mm |
|
Overall Case Length Option (Minimum case length) |
220 mm |
|
Total Length Option |
5.0 meters (16.4 feet) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, FluidLoc cable |
|
Agency Approval Option |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread |
M10 × 1 |
|
Maximum Length of Thread Engagement |
15 mm |
|
Dimension |
18 × 18 × 2 cm |
|
Weight |
0.1 kg |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance |
50 Ω |
|
Field Wiring |
0.2 to 1.5 mm² (16 to 24 AWG) |
|
Linear Range |
2 mm (80 mils) |
|
Probe Tip Material |
Polyphenylene sulfide |
|
Probe Case Material |
AISI 303 or 304 stainless steel |
Frequently Asked Questions
111
If You Choose Us！
1. We will provide you the product info and picture
2. Large stock, fast delivery
3. Competitive prices and immediate quotation
4. Professional service, professional technical support
5. Strict test machine before shipment.
6. We could help you to get any components which is difficult to get
Application
Hydropower Plants: Monitoring shaft runout and thrust bearing clearance at low rotational speeds to ensure long-term stable operation of the main shaft.
Nuclear Power Plants: Monitoring the bearing condition of main feedwater pumps and circulating water pumps in high-humidity, high-pressure environments to ensure the safety of critical nuclear island pump machinery.
Refineries: Monitoring centrifugal compressor speed and Keyphasor signals in high-temperature, oil-contaminated environments, providing hard criteria for interlock protection systems.
Ethylene Plants: Real-time monitoring of dynamic oil-film clearance in cracked-gas compressor trains to detect critical bearing wear at an early stage.
Steel Mills: Monitoring the axial displacement of blast furnace blowers and TRT generators under high-dust, high-load operating conditions to prevent continued operation of degraded equipment.
