Product information

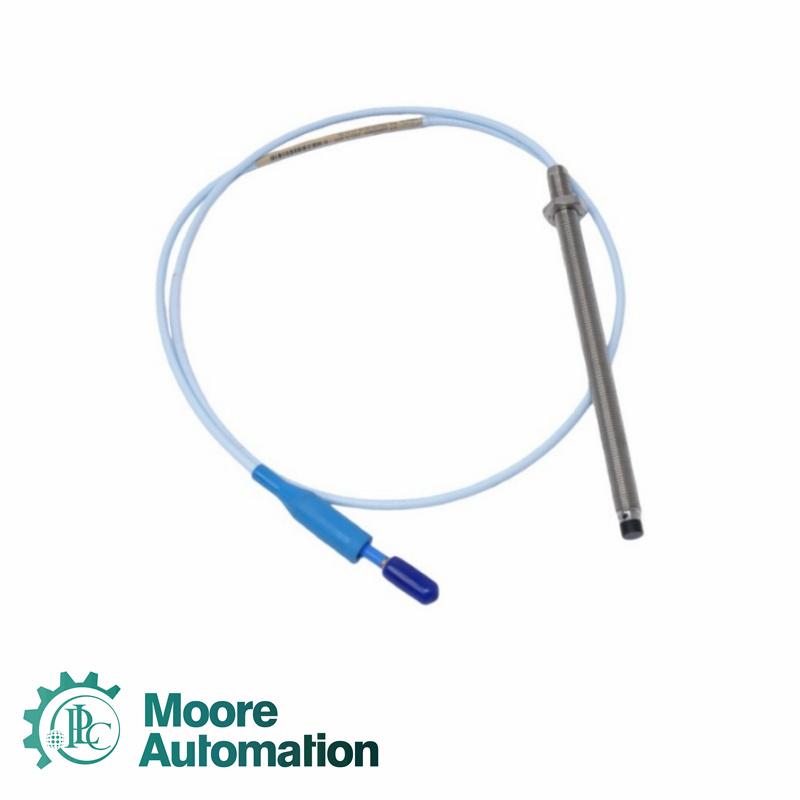

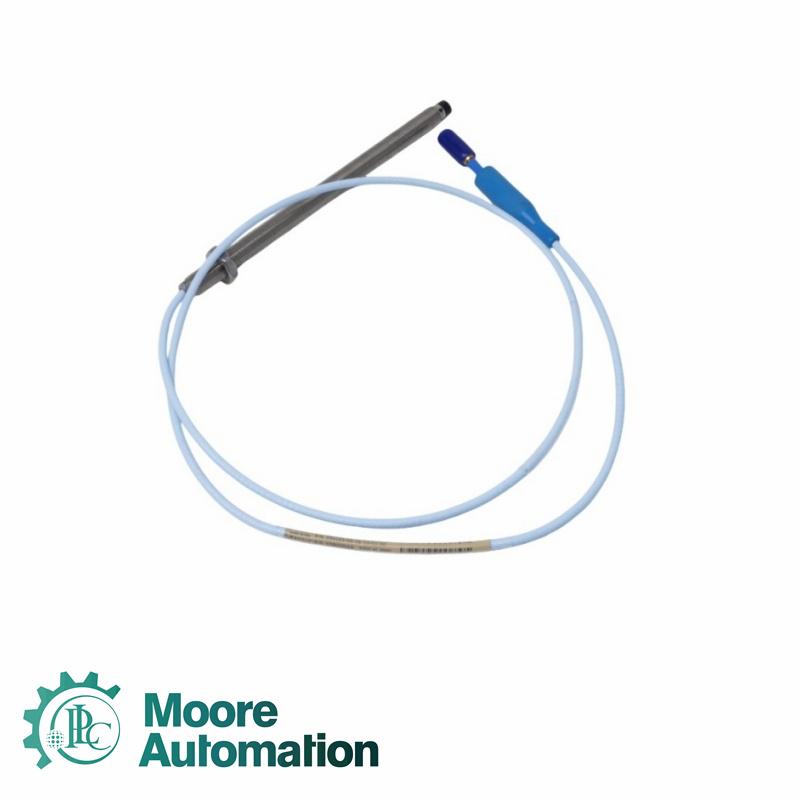

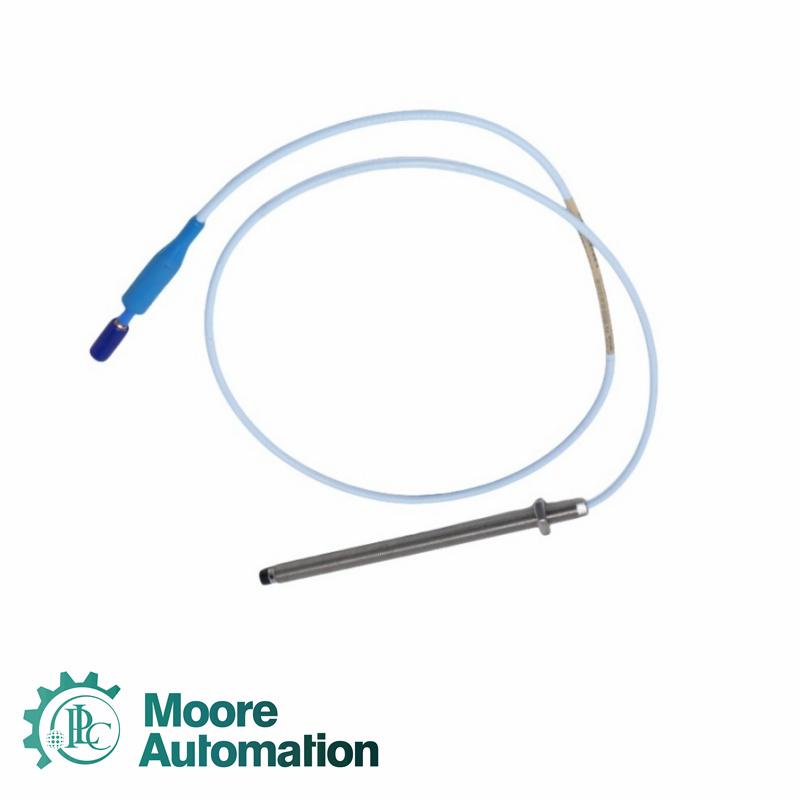

The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems.
Unthreaded Length Option (Minimum unthreaded length)
0 mm
Overall Case Length Option (Minimum case length)
160 mm
Total Length Option
5.0 meters (16.4 feet)
Connector and Cable-Type Option
Miniature coaxial ClickLoc connector, FluidLoc cable
Agency Approval Option
CSA, ATEX, IECEx Approvals
Probe Case Thread
M10 × 1
Maximum Length of Thread Engagement
15 mm
Dimension
18 × 18 × 2 cm
Weight
0.1 kg
Operating and Storage Temperature
-52°C to +177°C (-62°F to +350°F)
Supply Sensitivity
Less than 2 mV change in output voltage per volt change in input voltage
Output Resistance
50 Ω
Field Wiring
0.2 to 1.5 mm² (16 to 24 AWG)
Linear Range
2 mm (80 mils)
Our Service For You
12 months warranty for all products
Original and new packing
3-5 working days shipping
High efficiency application
Good quality with long life span
Frequently Asked Questions (FAQ)
Q: Can the 330103-00-16-50-12-05 be used with older non-XL 3300 series preamplifiers?
A: Yes, they are physically and electrically compatible, but the overall system performance will be limited by the standards of older non-XL systems.
Q: What is the technical purpose of the gold plating on the connector of the 330103-00-16-50-12-05?
A: To prevent oxidation of the connector in harsh industrial environments and to prevent distortion of high-frequency vibration signals due to poor contact.
Q: What field pain points does the FluidLoc cable technology in the 330103-00-16-50-12-05 address?
A: To prevent lubricating oil inside the unit from leaking out through the gaps in the cable cores.
Q: Why is the unthreaded length option (A) for 330103-00-16-50-12-05"00"?
A: "00" indicates that the entire probe housing is threaded, meaning the unthreaded length is 0 mm.
Q: What target material is the 330103-00-16-50-12-05 calibrated by default at the factory?
A: Electromagnetic characteristic calibration is performed by default on AISI 4140 steel.
Application
Thermal Power Plants: Paired X-Y axis monitoring of radial vibration and axial displacement to prevent severe shaft vibration and rotor-to-stator rub.
Hydropower Plants: Monitoring shaft runout and thrust bearing clearance at low rotational speeds to ensure long-term stable operation of the main shaft.
Nuclear Power Plants: Monitoring the bearing condition of main feedwater pumps and circulating water pumps in high-humidity, high-pressure environments to ensure the safety of critical nuclear island pump machinery.
Refineries: Monitoring centrifugal compressor speed and Keyphasor signals in high-temperature, oil-contaminated environments, providing hard criteria for interlock protection systems.
Ethylene Plants: Real-time monitoring of dynamic oil-film clearance in cracked-gas compressor trains to detect critical bearing wear at an early stage.
