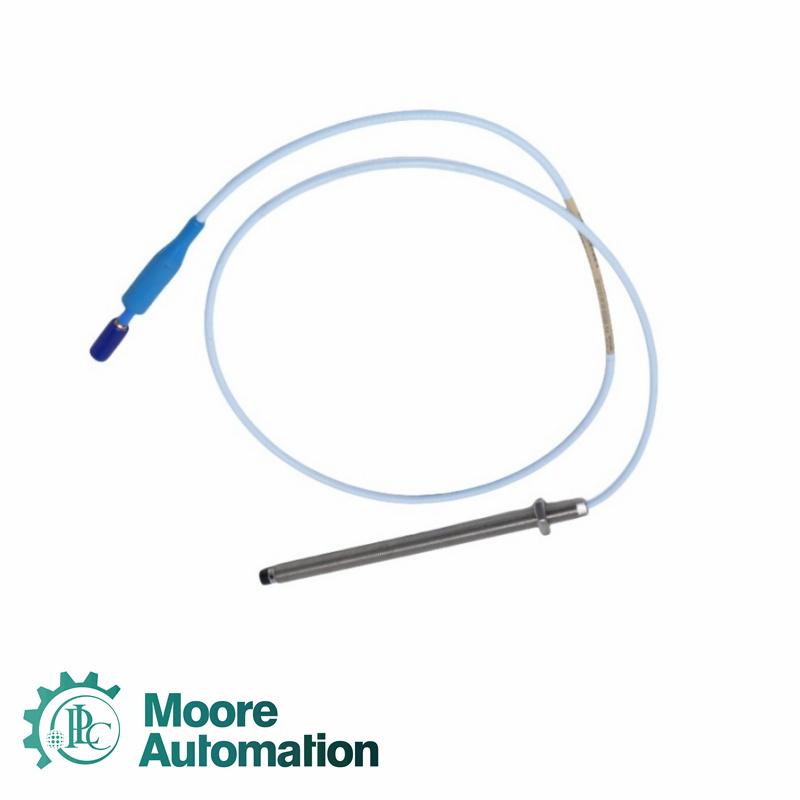

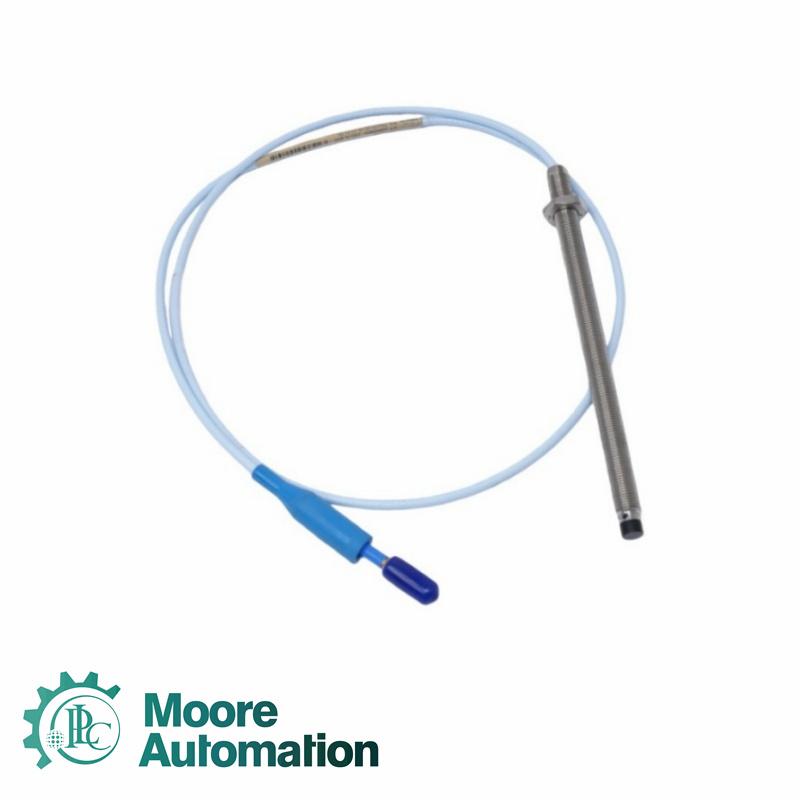

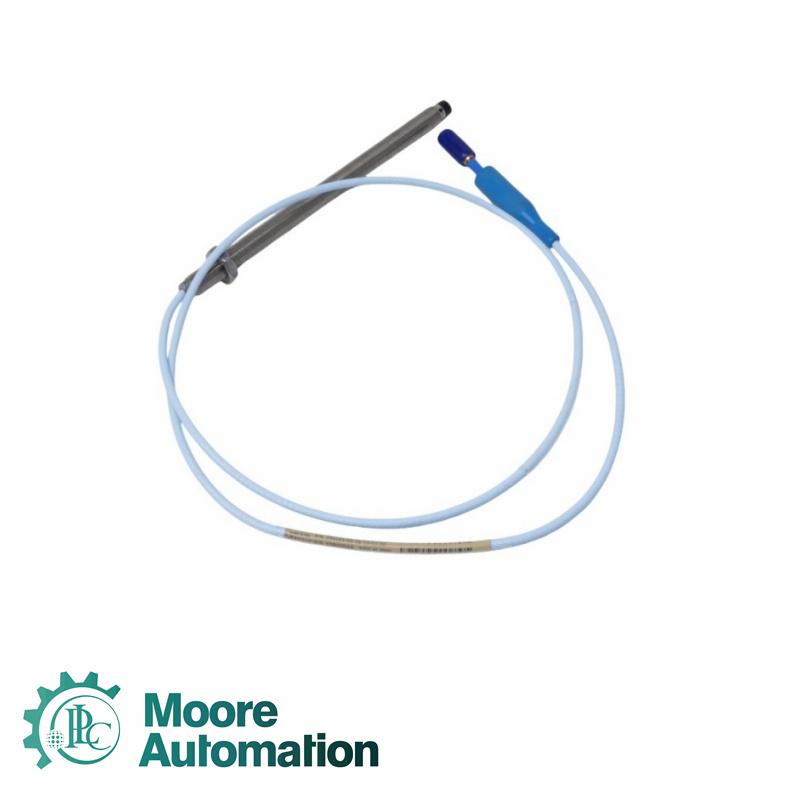

Bently Nevada 330103-00-16-50-12-00 3300 XL 8 mm Proximity Probe

Our company's advantageous brands

Foxboro/GE/Siemens/Moore/Emerson/Ovation/BentlyNevada/ABB/ICS/TRICONEX/Honeywell/

Westinghouse/Epro/Yokogawa/Allen-bradley/ Schneider /HIMA/Woodhead/Woodward

Overview of the Product

The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems.

Applicaiton

Thermal Power Plants: Used on turbine bearings, feedwater pumps, and generator housings for easy gap adjustment in tight spaces.

Oil Refineries: Installed on compressors and pumps for micrometer displacement monitoring and fault prevention.

Steel Manufacturing Plants: Used on blast furnace fans, gas fans, and rolling mill gearboxes for shaft runout monitoring.

Crude Oil Pipeline Plants: Applied to large oil transfer pumps for external maintenance without major disassembly.

Large Fertilizer Plants: Used on ammonia and CO₂ compressors as key TSI monitoring components.

Frequently Asked Questions

Q: What mounting thread does 330103-00-16-50-12-00 use? Is it armored?
A: The prefix 330103 indicates that it uses an M10 x 1 metric thread and is a standard cable design without armor protection.

Q: What specific oil-resistant industrial applications does the suffix "12" indicate of the 330103-00-16-50-12-00 cable?
A: "12" indicates the inclusion of a mini coaxial ClickLoc connector with a protective sleeve, and the cable's FluidLoc anti-fluid leakage characteristics (effectively preventing lubricating oil from turbines or fans from leaking through the copper core to the sealed terminals).

Q: Since it comes with a 5-meter cable, what is the physical impedance of the 330103-00-16-50-12-00?
A: The nominal DC resistance from the central conductor to the shielding layer of the 5.0-meter probe is approximately 8.73 ± 0.70 Ω at room temperature (while the 1.0-meter probe is only approximately 4.90 ± 0.39 Ω).

Q: Does the suffix "50" indicate any special electrical system configuration for 330103-00-16-50-12-00?
A: Indicated by the suffix "50" is a 5.0-meter (16.4-foot) cable included with the probe, eliminating the need for extension cables in a 5-meter measurement system and allowing direct connection to the system preamplifier.

Q: What industrial certification standards does the "00" option at the end represent?
A: Indicated by the last two "00"s is compliance with common multinational certification bodies (including intrinsically safe explosion-proof and non-flammable certifications such as ATEX, IECEx, and CSA), classifying it as an internationally recognized standard component.
