Product Information

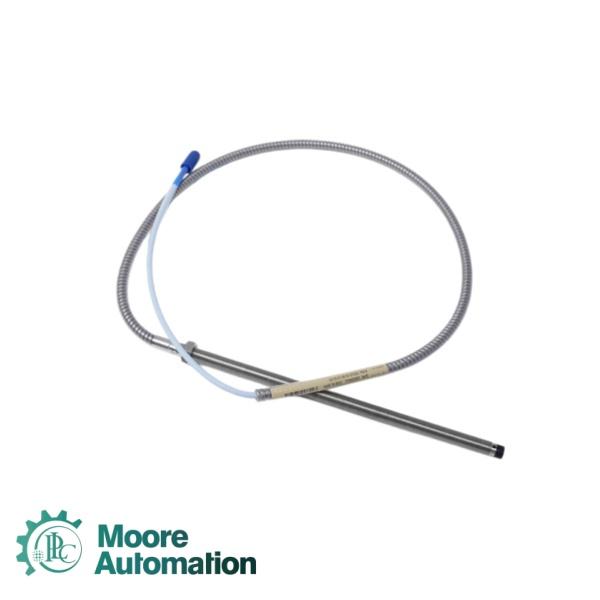

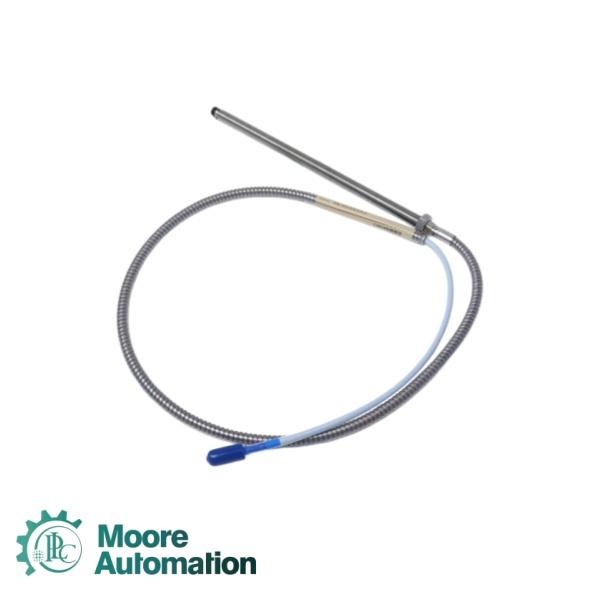

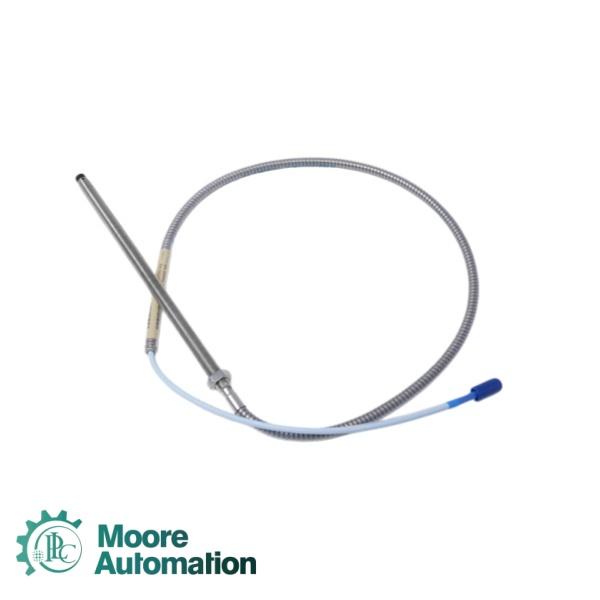

The Bently Nevada 330102-10-40-10-02-00 is a non-contacting eddy current probe engineered for critical industrial machinery protection and condition monitoring. This probe is specifically shaped to pass through medium-depth machine casings to accurately measure the static position and dynamic vibration of rotating shafts.

When integrated with a matching 3300 XL extension cable and Proximitor Sensor, it provides highly precise voltage outputs to monitoring systems, allowing plant operators to detect shaft misalignments, bearing wear, and dangerous rotor imbalances before a catastrophic mechanical failure occurs.

✦Unthreaded Length(10): 1.0in; ✦Overall Case Length(40): 4.0in; ✦Total Length(10):1.0 meter (3.3 feet)

✦Connector and Cable-Type(02): Miniature coaxial ClickLoc connector, standard cable; ✦Agency Approval(00): Not required

✦Cable Type: 75 Ω coaxial cable; ✦Operating Temperature Range (Probe/Cable): -51 °C to +177 °C (-60 °F to +351 °F)

Key Features

Contactless Eddy Current Tracking: Measures static gaps and dynamic vibrations using magnetic fields without physical contact, entirely eliminating mechanical wear and frictional drag on the machinery.

◯Example: Continuously capturing the precise radial vibration orbit of a high-speed turbocharger shaft spinning at 12,000 RPM without scratching the shaft surface.

Universal Component Interchangeability: Allows any 3300 XL 8 mm series probe, extension cable, or Proximitor sensor to be field-swapped without requiring any manual electronic recalibration.

◯Example: Swapping a physically worn 1.0-meter probe with an identical spare from plant storage and instantly matching it to the existing extension cable while maintaining the exact 200 mV/mil voltage response.

ClickLoc Connector with Protector: Equipped with a specialized miniature coaxial connection system and an integrated protective boot that prevents environmental contamination and accidental disconnection.

◯Example: Sealing the critical probe-to-extension-cable connection link against moisture, dirt, and heavy-handed technician maintenance inside a damp field junction box.

FAQ

Q1: What is Bently Nevada known for?

A1: Bently Nevada is known for being a global leader in machinery protection and condition monitoring systems for critical rotating equipment.

Q2: What industries does Bently Nevada serve?

A2: Oil & gas, power generation, chemical processing, mining, and pulp & paper industries.

Q3: What types of measurements do Bently Nevada products provide?

A3: Vibration, axial position, speed, eccentricity, temperature, and casing expansion monitoring.

Q4: Are Bently Nevada products compliant with international standards?

A4: Yes, they comply with API 670, IEC, ISO, ATEX, CSA, and IECEx standards.

Q5: What is the 3500 monitoring system?

A5: The 3500 system is a rack-based machinery protection system that provides continuous online monitoring, alarm detection, and relay outputs for machine shutdown.
