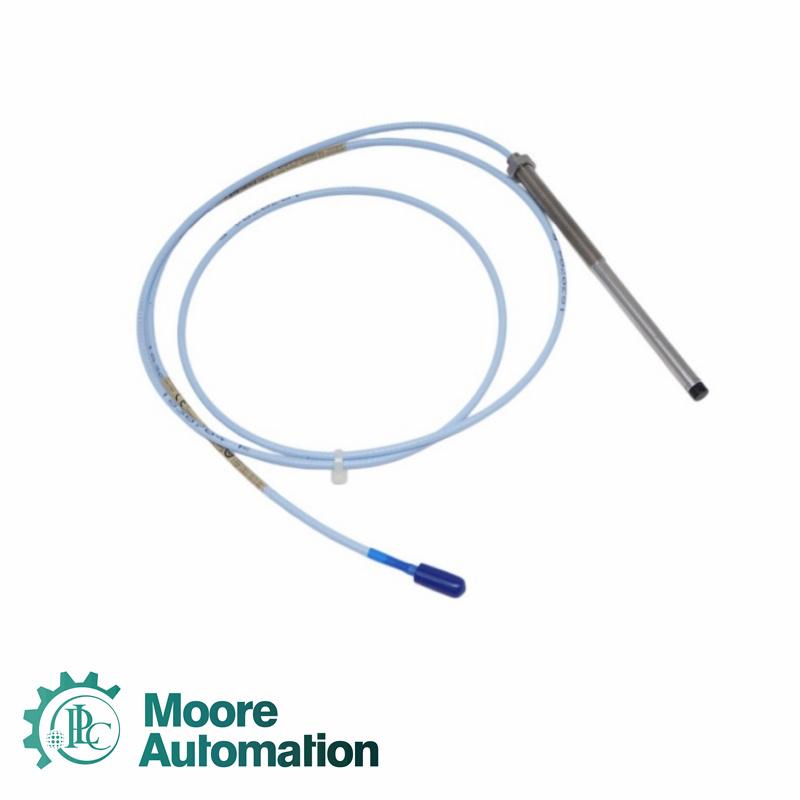

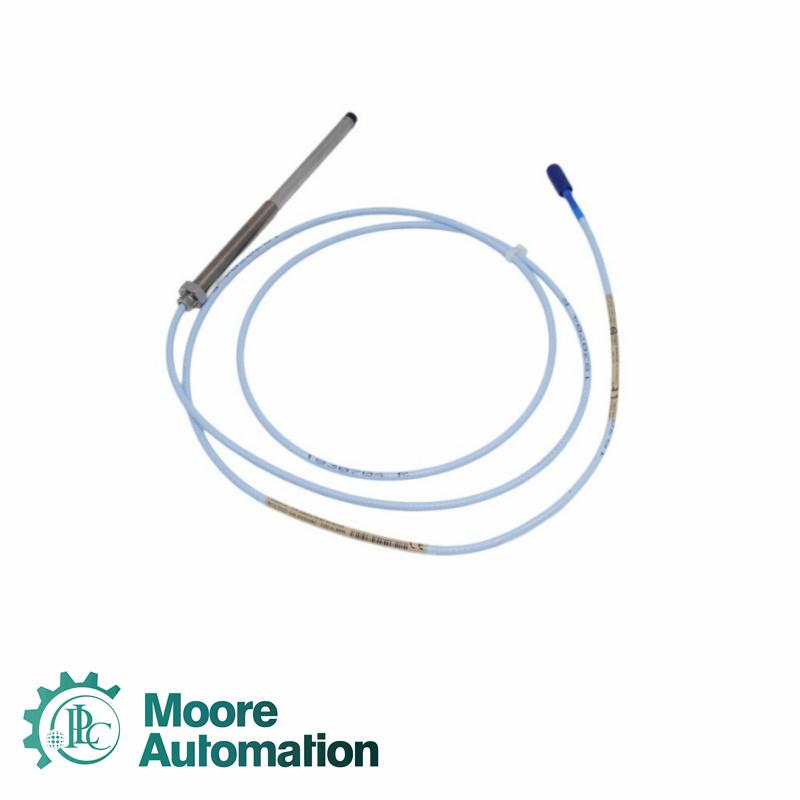

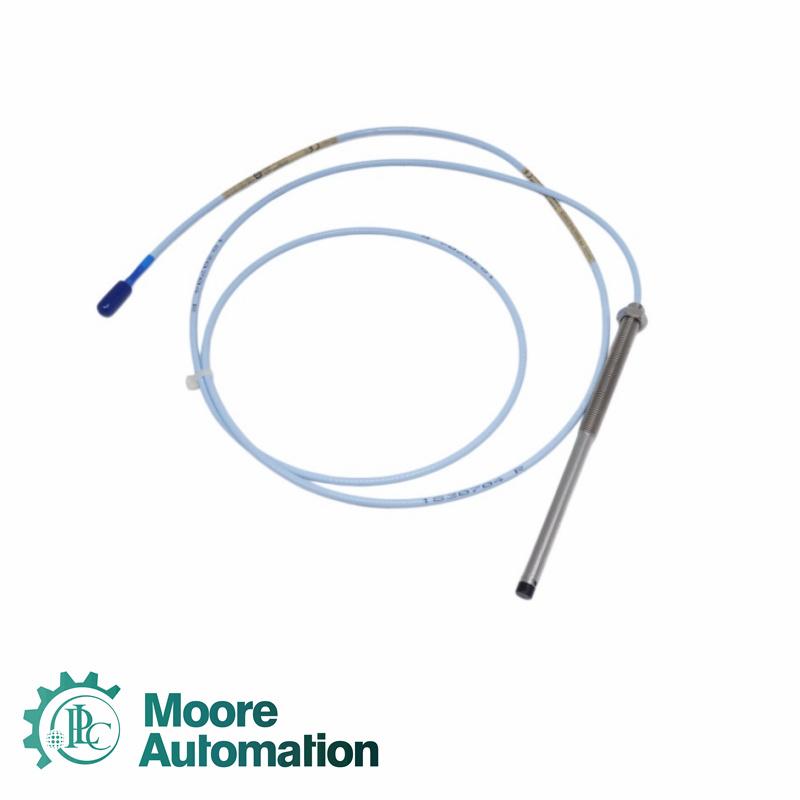

BENTLY NEVADA 330101-32-57-05-01-05 3300 XL 8 mm Proximity Probe

1

Sale Manager----John Yang

Email: sales3@askplc.com

Mobile(WhatsApp):  86-18150117685

2

The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Ask John Yang（Email: sales3@askplc.com）for more infor of 330101-32-57-05-01-05

3

Unthreaded Length Option(Minimum unthreaded length): 3.2 in
Overall Case Length Option(Minimum case length): 5.7 in
Total Length Option: 0.5 meter (1.6 feet)
Connector and Cable-Type Option: Miniature coaxial ClickLoc connector with connector protector, standard cable
Agency Approval Option: CSA, ATEX, IECEx  Approvals
Probe Case Thread: 3/8-24 UNF thread
Maximum Length of Thread Engagement: 0.563 in
Dimension: 1.5x1.3x116cm
Weight: 0.05 kg
Operating and Storage Temperature: -52°C to +177°C (-62°F to +350°F)
Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage
Output Resistance: 50 Ω
Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
Field Wiring: 0.2 to 1.5 mm2 (16 to 24 AWG)
Linear Range: 2 mm (80 mils)

4

What is the BENTLY NEVADA 330101-32-57-05-01-05?
It is a 3300 XL 8 mm Proximity Probe.

Is this product brand new?
Yes, BENTLY NEVADA 330101-32-57-05-01-05 is brand new, original, unused, and factory sealed

What shipping methods are used for 330101-32-57-05-01-05?
Major carriers like FedEx, DHL, and UPS are primarily used for worldwide delivery.

How are the 330101-32-57-05-01-05 packaged?
330101-32-57-05-01-05 packaging generally involves multiple layers of protection to ensure safe transit.

Do you offer any discounts?
Yes! For discounts on 330101-32-57-05-01-05, please contact John for the best offer.
