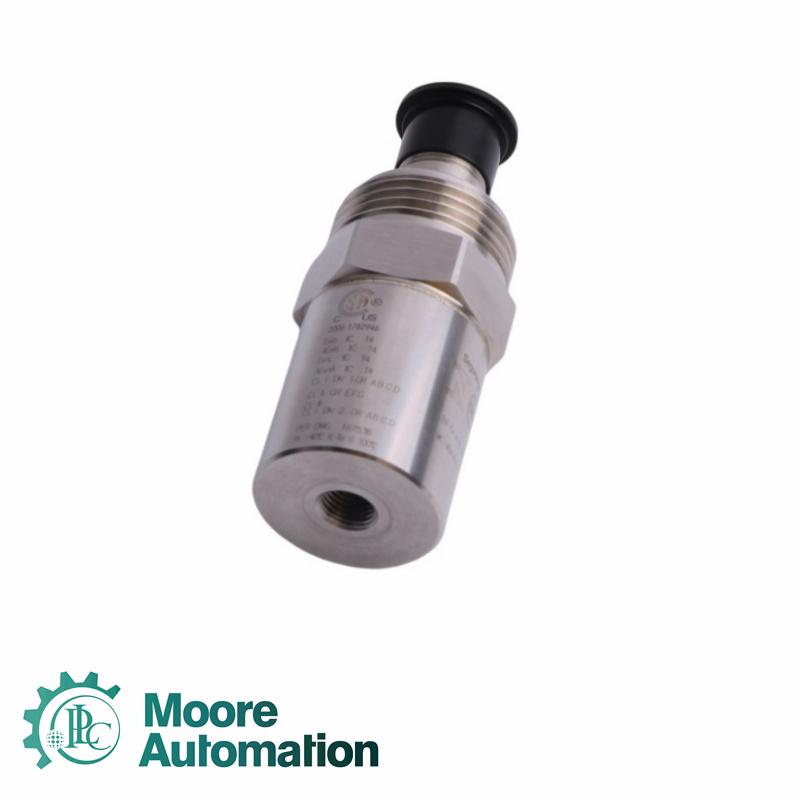

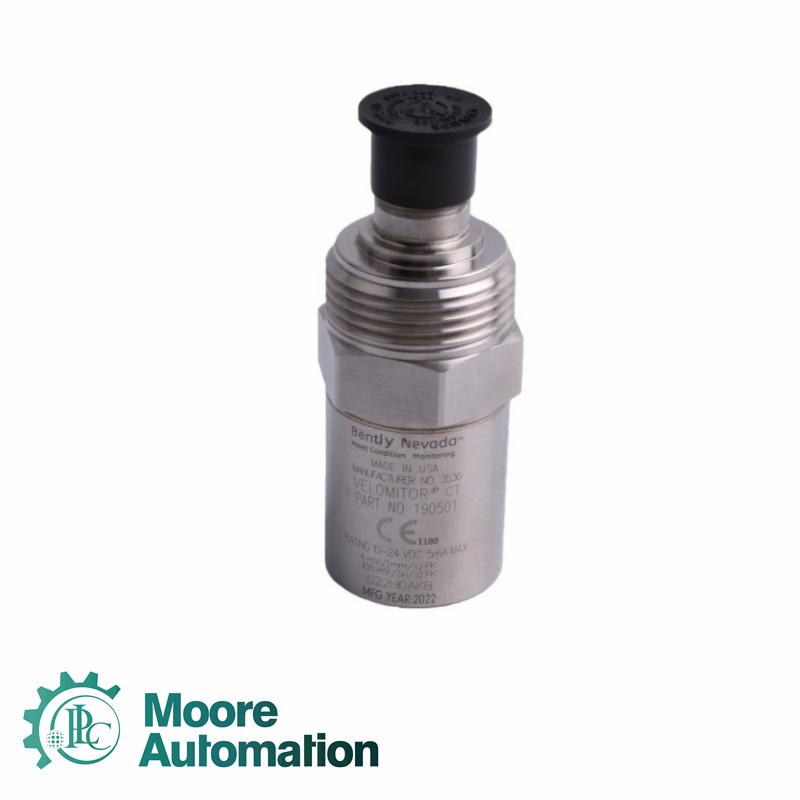

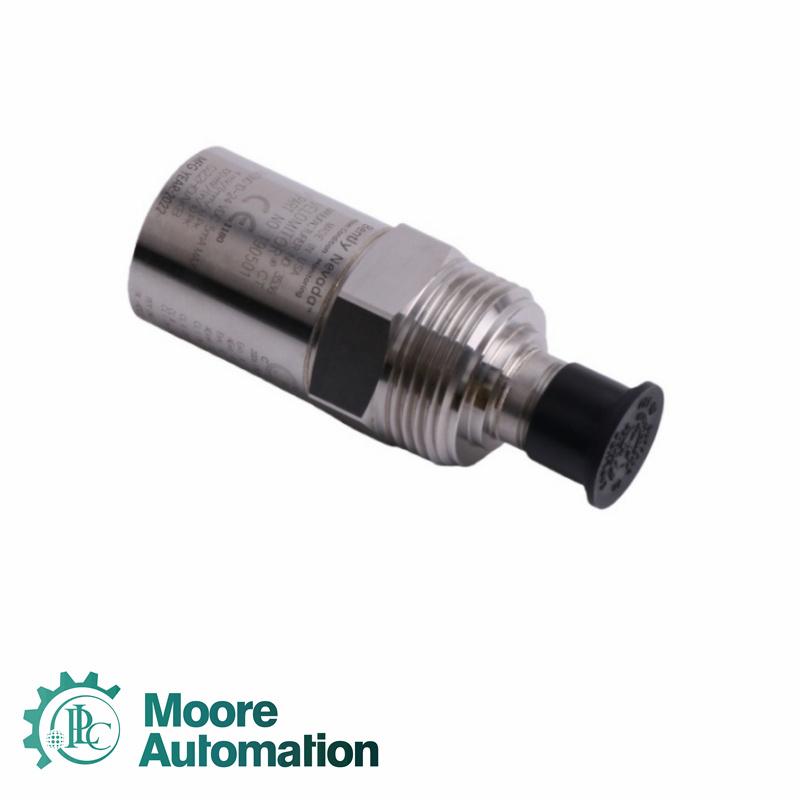

BENTLY NEVADA 190501-07-99-00 Velomitor CT Velocity Transducer

1

Sale Manager----John Yang

Email: sales3@askplc.com

Mobile(WhatsApp):  86-18150117685

2

The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical).  The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Ask John Yang（Email: sales3@askplc.com）for more infor of 190501-07-99-00

3

Mounting Hardware Option: Plate Stud 3/8-in 24 to 3/8-in 24
Connection Option: Unit with included 32-foot cable
Agency Approval Option: No Approvals
Dimension: 8.5x3.5x3cm
Weight: 0.32kg
Sensitivity: 3.94 mV/mm/s (100 mV/in/s) ±5%
Frequency Response: 3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB or 1.5 Hz to 1.0 kHz (90 to 60,000 cpm) ±3.0 dB
Temperature Sensitivity: -8% to +5% typical over the operating temperature range
Case Material: 316L stainless steel
Connector: 2-pin 316L stainless steel MIL-C-5015, top
Mounting Torque: 4.5 N-m ± 0.6 N-m (40 in– lbf ± 5 in-lbf)
Mounting Angle: Any orientation
Mounting Surface: 33 mm diameter (1.3 in diameter)
Operating Temperature: -40°C to +85°C (-40°F to +185°F)
Storage Temperature: -40°C to +100°C (-40°F to +212°F)
Shock Limit:  5000 g pk, maximum
Humidity Limit: 100% condensing, non-submerged

4

What is the BENTLY NEVADA 190501-07-99-00?
It is a 3300 XL 8 mm Proximity Probe.

Is this product brand new?
Yes, BENTLY NEVADA 190501-07-99-00 is brand new, original, unused, and factory sealed

What shipping methods are used for 190501-07-99-00?
Major carriers like FedEx, DHL, and UPS are primarily used for worldwide delivery.

How are the 190501-07-99-00 packaged?
190501-07-99-00 packaging generally involves multiple layers of protection to ensure safe transit.

Do you offer any discounts?
Yes! For discounts on 190501-07-99-00, please contact John for the best offer.
