Product Specifications
|

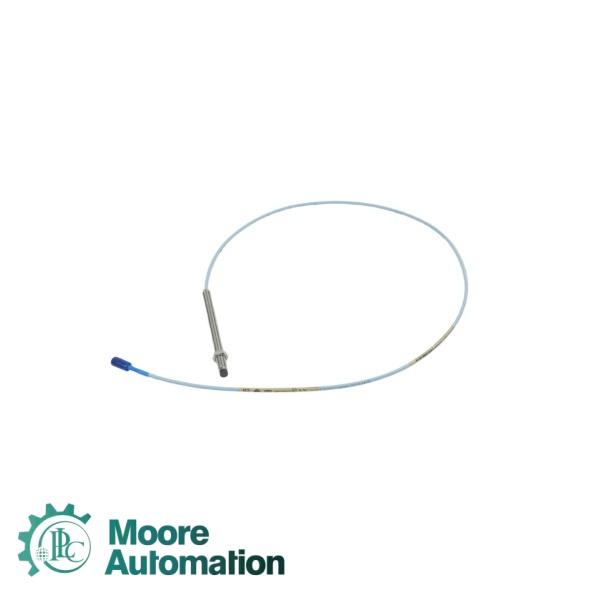

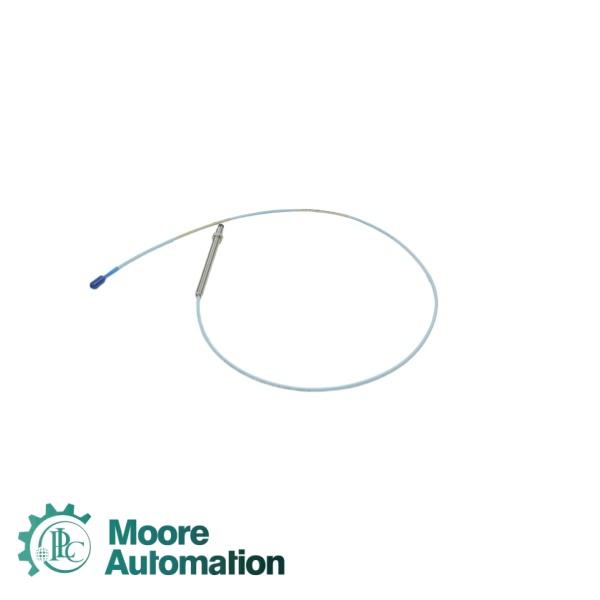

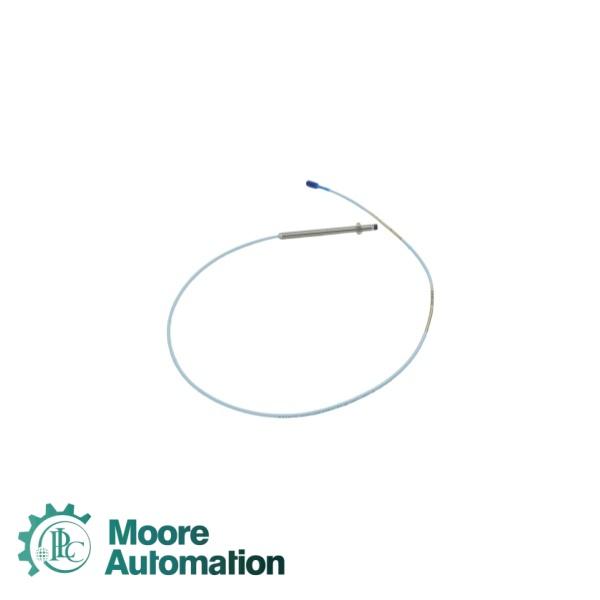

The Bently Nevada 330101-00-70-10-02-05 is an industrial eddy current proximity probe designed for high-precision, non-contacting shaft displacement measurements on critical rotating machinery. Featuring an 8 mm tip diameter molded from high-durability polyphenylene sulfide (PPS) and an extra-long 7.0-inch fully threaded stainless steel housing, this probe is built to bridge deeper machine casing structures to reach buried internal bearing faces. |
|
Unthreaded Length(00): 0.0in Overall Case Length(70): 7.0in Total Length(10): 1.0 meter (3.3 feet) Connector and Cable-Type(02): Miniature coaxial ClickLoc connector, standard cable Agency Approval(05): CSA, ATEX, IECEx Approvals Excitation Voltage Loop: –17.5 Vdc and –26 Vdc Measuring Sensitivity (Scale Factor): 7.87 V/mm (200 mV/mil) Operating Temperature Limits: –51 °C to +177 °C (–60 °F to +350 °F) System Impedance matching: 50 Ω output resistance |
Application
✜ Fluid-Film Bearing Vibration Monitoring: Positioned radially in pairs (X-Y orthogonal configuration) to measure dynamic shaft vibration, allowing maintenance teams to track oil film whirl, shaft orbit profiles, and rotor unbalance.
✜ Axial Thrust Position Tracking: Installed parallel to the shaft axis to monitor axial displacement, acting as a critical safety switch that triggers an automatic trip loop before catastrophic rotor-to-stator structural contact occurs.
✜ Keyphasor Speed and Phase Referencing: Used to sense a machined slot or projection on a rotating shaft to provide a once-per-turn voltage pulse, enabling precise RPM calculations and phase angle vibration analysis.
Faq
|
Q1: What is Bently Nevada known for? A1: Bently Nevada is known for being a global leader in machinery protection and condition monitoring systems for critical rotating equipment. |
|
Q2: What industries does Bently Nevada serve? A2: Oil & gas, power generation, chemical processing, mining, and pulp & paper industries. |
|
Q3: What types of measurements do Bently Nevada products provide? A3: Vibration, axial position, speed, eccentricity, temperature, and casing expansion monitoring. |
