 Bently Nevada 31000-28-10-15-040-03-02 Proximity Probe Housing Assembly
31000-28-10-15-040-03-02 31000-28-10-15-040-03-02 31000-28-10-15-040-03-02

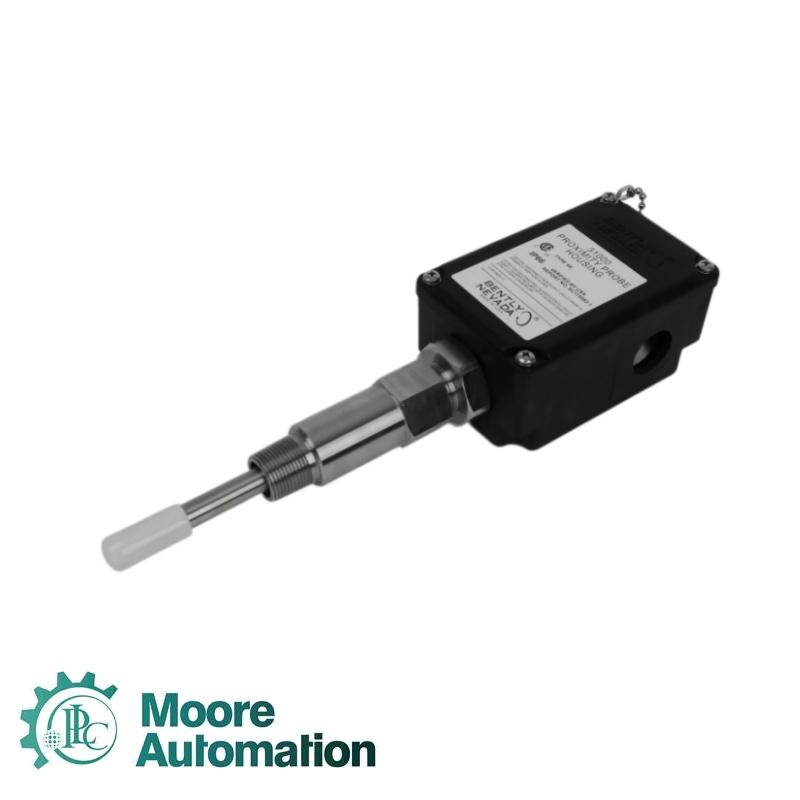

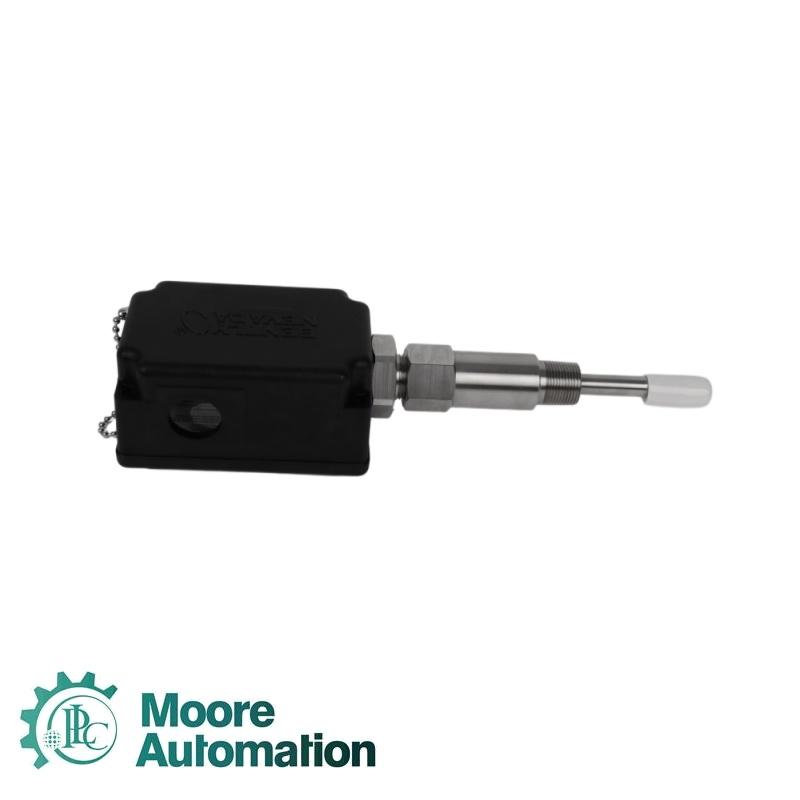

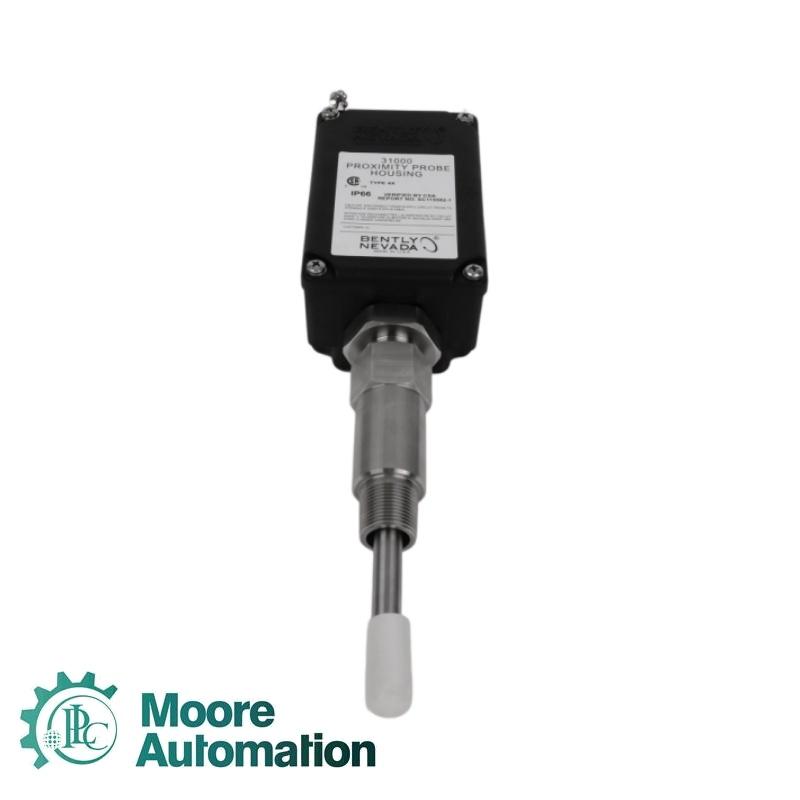

Bently Nevada 31000-28-10-15-040-03-02 Proximity Probe Housing Assembly

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    UK

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Lead Time：

    3-5 Days

  • Warranty:

    1 Year
Contact Us

  • Product Detail

Specifications

Bently Nevada 31000-28-10-15-040-03-02 is an English-dimension proximity probe housing assembly configured with a 3300 XL 8 mm probe and multiple approvals. It includes a 1.0 m probe cable, 1.5 in standoff adapter, 4.0 in probe penetration, the code-03 fitting arrangement, and a 3/4-14 NPT mounting thread.

Product type
Proximity probe housing assembly
Housing series
31000
Probe option
3300 XL 8 mm, multiple approvals
Probe-option code
28
Probe cable length
1.0 m (39 in)
Standoff adapter length
1.5 in (38 mm)
Probe penetration
4.0 in (102 mm)
Fitting option
Code 03
Mounting thread
3/4-14 NPT
Housing material
Glass-reinforced PPS thermoplastic
Sleeve material
AISI 304 stainless steel
Outer sleeve and screws
AISI 303 stainless steel
O-ring material
Neoprene
Protection rating
Type 4X / IP66
Retaining-nut torque
29.4 N·m (260 in·lb)
Typical weight
1.2 kg (2.6 lb)
Probe operating/storage range
-51 to +177 °C
Housing standard
API 670 compliant

Application Industry

01
Radial vibration probe mountingProvides external access for a radially mounted proximity probe through the machine case.
02
Keyphasor probe housingSupports externally accessible phase-reference probe installation.
03
Probe gap adjustmentAllows probe gap adjustment without disassembling the machine casing.
04
Probe replacement accessAllows the probe and extension connection to be serviced from outside the machine.

FAQ

Which probe configuration is installed in Bently Nevada 31000-28-10-15-040-03-02?
The selected option contains an 8 mm proximity probe with the multiple-approvals configuration.
What machine connection is required for Bently Nevada 31000-28-10-15-040-03-02?
The outer mounting arrangement uses a 3/4-14 NPT thread.
What penetration is specified for Bently Nevada 31000-28-10-15-040-03-02?
The selected sleeve configuration provides 4.0 in of probe penetration with the stated adjustment allowance.
When does Bently Nevada 31000-28-10-15-040-03-02 need additional sleeve support?
Additional support is required when the combined standoff and penetration dimensions exceed 12 in.
What should be checked before mounting Bently Nevada 31000-28-10-15-040-03-02?
Verify the machine-case thread, standoff clearance, penetration depth, conduit fittings, seal condition and probe access path.

Company Service

✓ Model ValidationFull suffix and system compatibility review
⊖ Label InspectionClear identification and certification-label checks
▣ Secure PackingProtected packaging for electronic assemblies
↗ Global DeliveryTracked international shipping from stock
◇ Warranty SupportResponsive after-sales handling
▤ Document ServiceOfficial manuals and certificates when available

Recommended Products

Need Bently Nevada 31000-28-10-15-040-03-02 Proximity Probe Housing Assembly?

Contact our automation team for pricing, availability and technical information.
