 Bently Nevada 200150-06-05 General-Purpose Accelerometer
200150-06-05 200150-06-05 200150-06-05

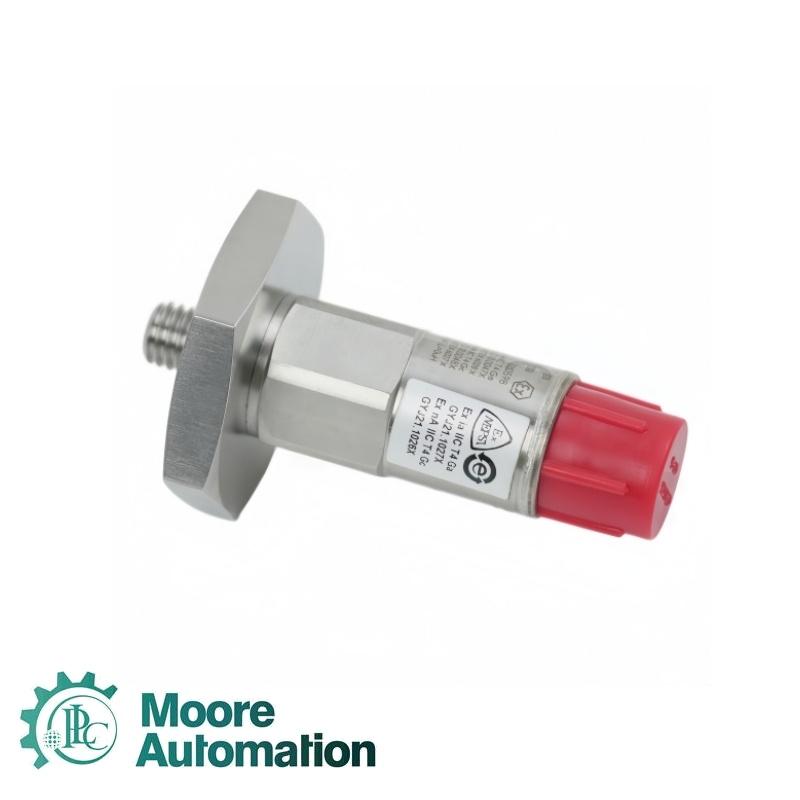

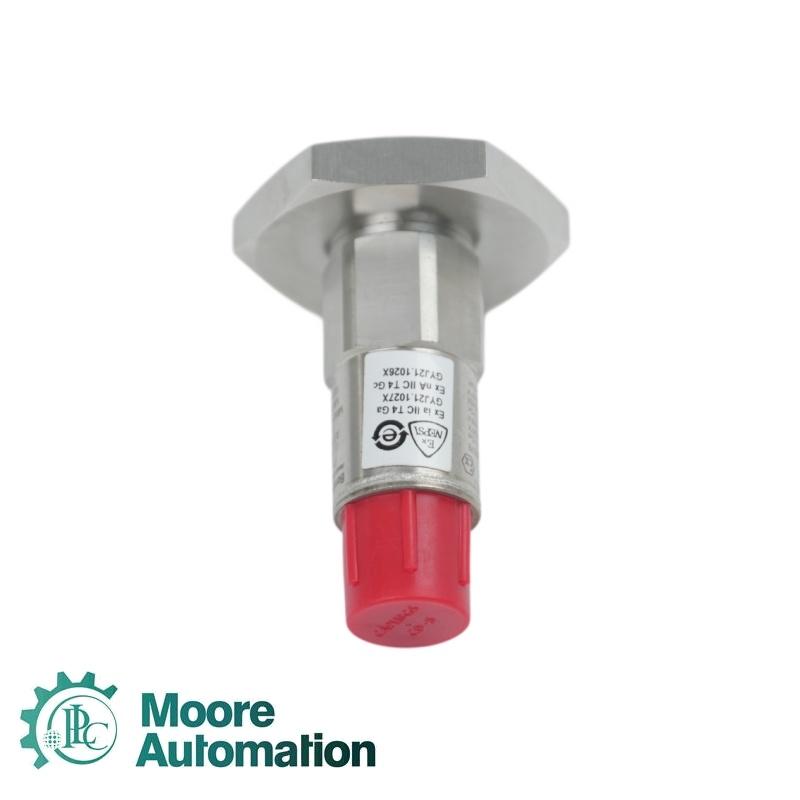

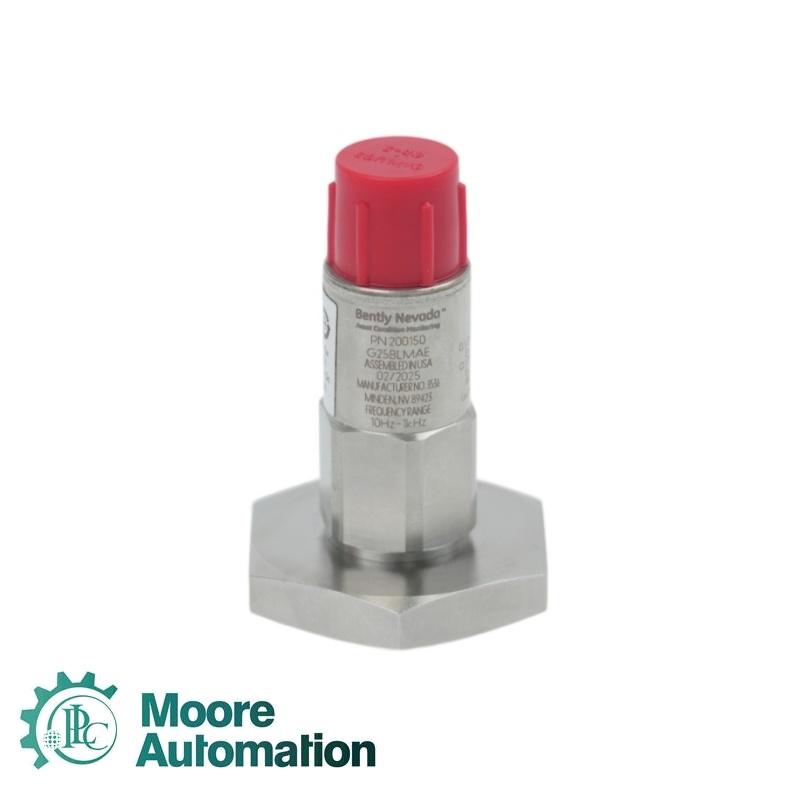

Bently Nevada 200150-06-05 General-Purpose Accelerometer

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    USA

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Lead Time：

    3-5 Days

  • Warranty:

    1 Year
Contact Us

  • Product Detail

Specifications
The Bently Nevada 200150-06-05 is a general-purpose, wide-frequency, case-mounted seismic accelerometer for Trendmaster ProTIM applications. The order configuration uses mounting option 06 and the multiple-approval option. The stainless-steel, hermetically sealed sensor is intended for bearing-housing or machine-casing vibration measurements.
Product typeCase-mounted accelerometer
Base model200150
Application classGeneral application
Mounting option06 — 3/8-24 to 1/4 NPT stud
Approval option05 — CSA, ATEX and IECEx
Sensitivity at 80 Hz10.2 mV/(m/s²) (100 mV/g), ±12%
Measurement range±245 m/s² (±25 g)
Frequency range10 to 1000 Hz, ±10%
Mounted resonanceGreater than 20 kHz
Amplitude linearity±2% from 1 to 10 g peak
Transverse sensitivity7% maximum
Operating temperature-40 to +105 °C
Isolation600 V rms
Housing material316L stainless steel
Size17.5 mm hex × 45.7 mm high
Weight58 g typical
Application Industry
01
Bearing housingsMeasures casing acceleration associated with rotor-related vibration.
02
Pumps and motorsSupports general machinery-condition monitoring over the standard frequency band.
03
Trendmaster ProTIM channelsWorks with the documented acceleration-to-velocity channel option.
04
Industrial machine casingsProvides a sealed sensor for fixed case-mounted measurements.
FAQ
Which mounting stud is specified for 200150-06-05?
The selected option uses a three-eighths-inch sensor thread to quarter-inch NPT stud.
What monitor channel is appropriate for 200150-06-05?
Use the documented standard acceleration-to-velocity channel and verify the monitor configuration before connection.
Can 200150-06-05 be mounted away from the bearing housing?
Mounting should be on the bearing housing or machine casing at the engineered measurement point to preserve amplitude and frequency response.
What environmental sealing does 200150-06-05 provide?
The transducer is hermetically sealed and uses a stainless-steel housing; the mating connector must also be protected correctly.
What must be confirmed when replacing 200150-06-05?
Check the mounting stud, five-pin cable, approval marking, channel type and expected frequency range.
