 Bently Nevada 146054-011-20-02-05 3300 Ceramic Capped Probe
146054-011-20-02-05 146054-011-20-02-05 146054-011-20-02-05

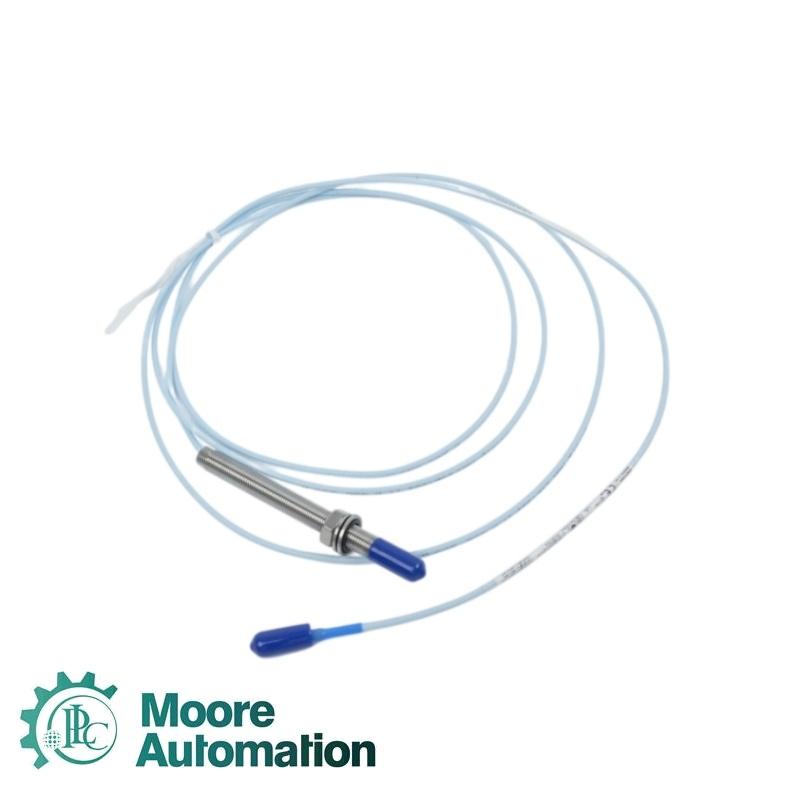

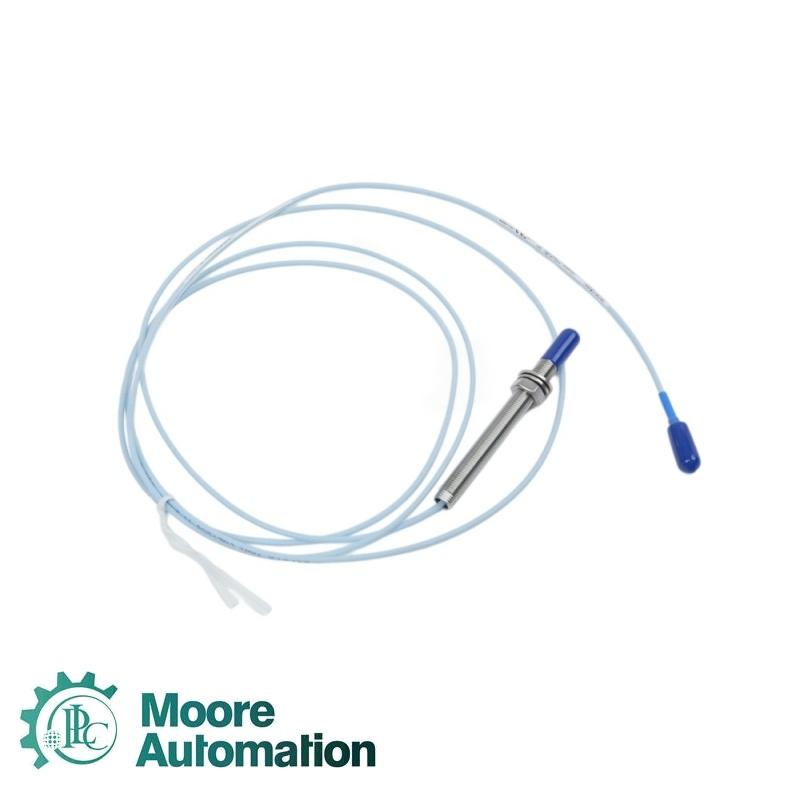

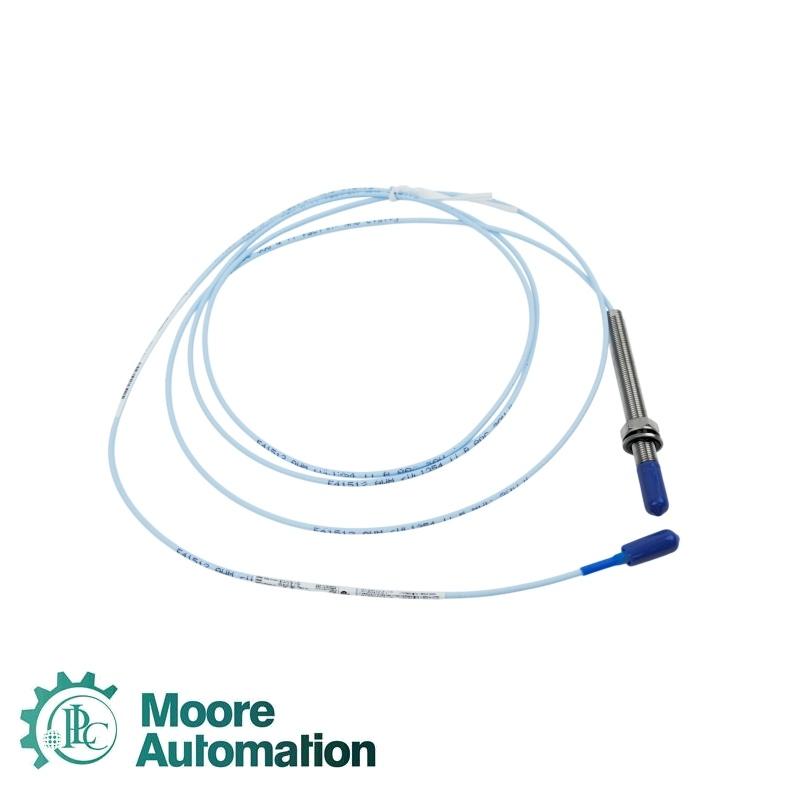

Bently Nevada 146054-011-20-02-05 3300 Ceramic Capped Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    USA

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Lead Time：

    3-5 Days

  • Warranty:

    1 Year
Contact Us

  • Product Detail

Specifications
The Bently Nevada 146054-011-20-02-05 is a forward-mount 3300 ceramic capped proximity probe for aggressive chemical and elevated-pressure environments. It combines an alumina cap with a 304 stainless-steel case, a 3/8-24 UNF thread, a 2.0 m standard cable and a miniature ClickLoc connector without protector. The selected approval option covers CSA, ATEX and IECEx.
Product type3300 ceramic capped proximity probe
Base model146054
Mounting styleForward mount
Probe thread3/8-24 UNF
Overall case option011
Total length2.0 m (6.6 ft)
Connector option02 — miniature ClickLoc, standard cable
Approval option05 — CSA, ATEX and IECEx
Tip materialAlumina ceramic
Case material304 stainless steel
Pressure rating34 bar (500 psi)
Cable armorWithout armor
Maximum case length102 mm (4.0 in)
Probe case diameter7.2 mm maximum
System compatibility3300 Proximitor Sensor and extension cable
Target calibrationAISI 4140 steel, factory default
Application Industry
01
Anhydrous-ammonia machineryProtects the probe tip in aggressive chemical environments.
02
High-pressure process equipmentSupports non-contact measurements where the front case is pressure exposed.
03
Fluid-film bearing machinesMeasures radial shaft vibration with a matched proximity loop.
04
Chemical processing equipmentUses a ceramic-to-metal front seal for corrosive gas or liquid exposure.
FAQ
Which part of 146054-011-20-02-05 is sealed against process media?
The ceramic-to-metal interface at the front is helium leak tested; the rear is not sealed against destructive media.
Does 146054-011-20-02-05 include cable armor?
No. The base configuration is supplied without armor and uses a standard cable.
What connector is fitted to 146054-011-20-02-05?
It uses a miniature coaxial ClickLoc connector without a connector protector.
Can 146054-011-20-02-05 be exposed to liquid at the rear?
No. Only the front case is designed for corrosive exposure, so the rear and cable exit require environmental protection.
What system match is required for 146054-011-20-02-05?
Confirm the compatible extension cable, Proximitor electronics, system length, target material and monitor scaling.
