B&R 8V1090.001-2 Servo drive

100% Original New
1 Year Warranty
Competitive Pice
Email: sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
Austria
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

Have a quick look

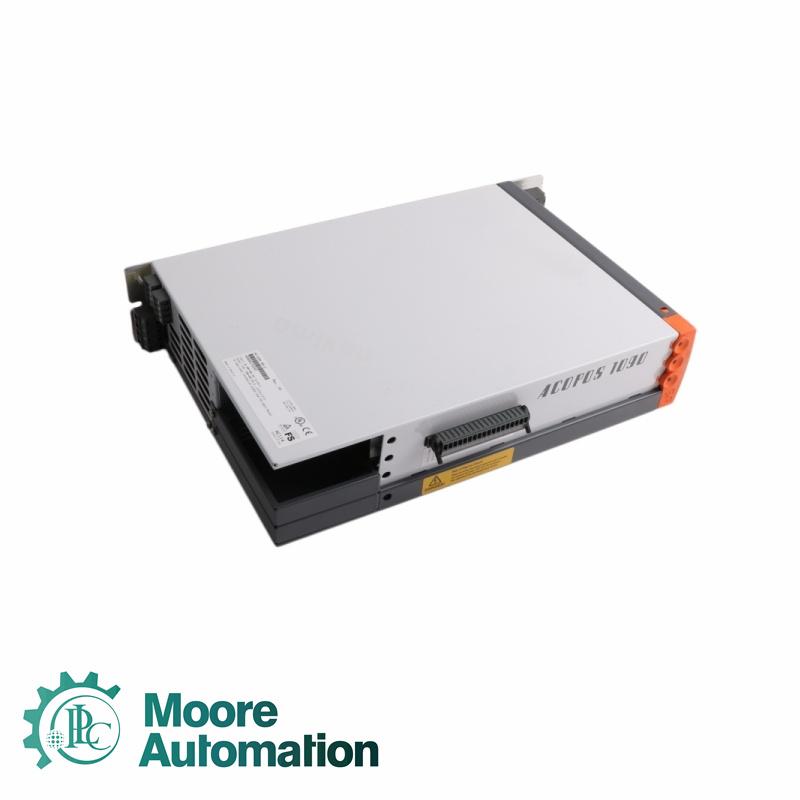

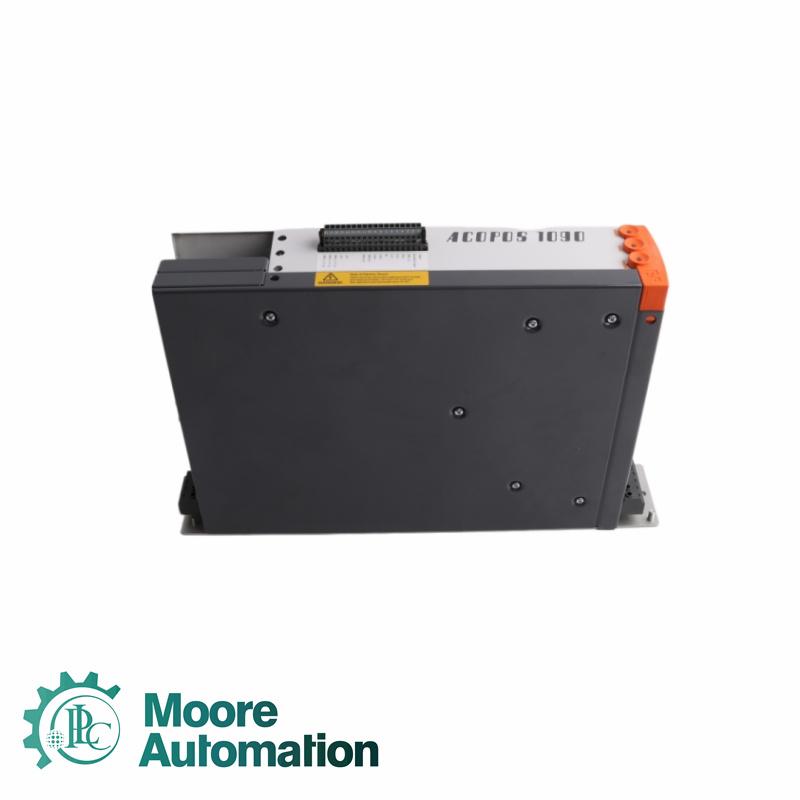

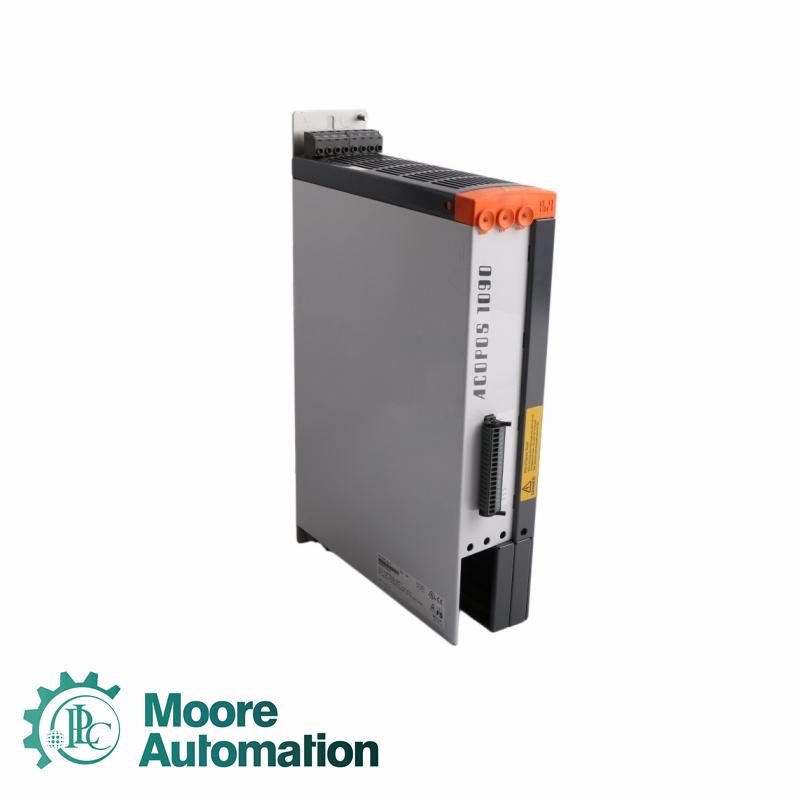

The B&R 8V1090.001-2 is a servo drive belonging to the ACOPOS 1090 series. It is a medium-to-high power servo drive used to drive higher load synchronous or asynchronous induction motors, commonly found in complex industrial robots, packaging machinery, and CNC systems.

Quick details
Brand name:	B&R
Model:	8V1090.001-2
Warranty period:	1 year
Condition:	100% original brand
Transportation period:	DHL FEDEX EMS UPS TNT

Welcome to Inquiry John Yang for more information

Email: sales3@askplc.com

Mobile(WhatsApp): 86-18150117685

Key Product Specifications

Plug-in Module Slots	4 slots
Certifications	CE; Functional Safety; UL cULus E225616; EAC; KC
Mains Input Voltage	3 × 400…480 V AC ±10%; 3 × 230 V AC ±10%
Mains Frequency	50/60 Hz ±4%
Installed Load	Max. 10 kVA
Inrush Current	7 A at 400 V AC
Switch-on Interval	>10 s
Integrated Line Filter	Yes, according to EN 61800-3 Category C3
Power Dissipation	Approx. 200 W at nominal power without braking resistor
DC Bus Capacitance	470 µF
24 V DC Input Voltage	24 V DC ±25%
Input Capacitance	8200 µF
Current Consumption	Max. 2.5 A + motor holding brake current
Continuous Current	8.8 Aeff
Open Circuit Monitoring Response Threshold	Approx. 385 mA
Maximum Output Current	1 A
Switching Cycles	Unlimited (electronic implementation)
Braking Resistor Peak Power	7 kW
Braking Resistor Continuous Power	200 W
Limit Switch and Reference Inputs	3 inputs
Input Circuit Type	Sink
Electrical Isolation	Input–ACOPOS: Yes; Input–Input: No
Input Voltage	Nominal: 24 V DC; Maximum: 30 V DC
Input Switching Threshold	Low: <5 V; High: >15 V
Input Current (Limit/Reference Input)	Approx. 4 mA at nominal voltage
Switching Delay	Max. 2.0 ms
Ground Potential Modulation	Max. ±38 V
Enable Input Voltage	Nominal: 24 V DC; Maximum: 30 V DC
Enable Input Current	Approx. 30 mA at nominal voltage

Application

Electronics Plant: Drive servo axes for wafer handling and precision testing.

Packaging Plant: Control feeding and positioning of bagging and sealing machines.

Medical Device Plant: Execute precise motion in assembly and sample handling systems.

Printing Plant: Control fine adjustment and feeding axes in printing lines.

Textile Plant: Control winding axes and yarn tension systems.

Our service for you

Q: How about the warranty ?

A: Moore provide 12 months warranty for all the goods from us.

Q: Other supplier have a better price than yours.

A: "To create more benefit fir clients"is our belief, if you have a better price , please let we know , we will try best to meet your price and support you.

Q: We have not cooperation before , how we can believe you ?

A: For the in stock products, we can take pictures and videos before you process payment.

Q: What about shipment ?

A: We have DHL/FEDEX/UPS/CHIRLINE/Aramex,you can use your own freight forwarder for transportation.

Frequently Asked Questions (FAQ)

Q: How many slots does 8V1090.001-2 have?
A: It has 4 plug-in module slots.

Q: What is the maximum installed load of 8V1090.001-2?
A: Its maximum installed load is maximum 10 kVA.

Q: What is the peak power of the brake resistor of 8V1090.001-2?
A: Its brake resistor peak power is 7 kW.

Q: What is the continuous current of 8V1090.001-2?
A: Its continuous current is 8.8 Aeff.

Q: What is the inrush current of 8V1090.001-2 at 400 V AC?
A: Its inrush current is 7 A.
