B&R 8V1022.001-2 Servo drive

100% Original New
1 Year Warranty
Competitive Pice
Email: sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
Austria
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

Have a quick look

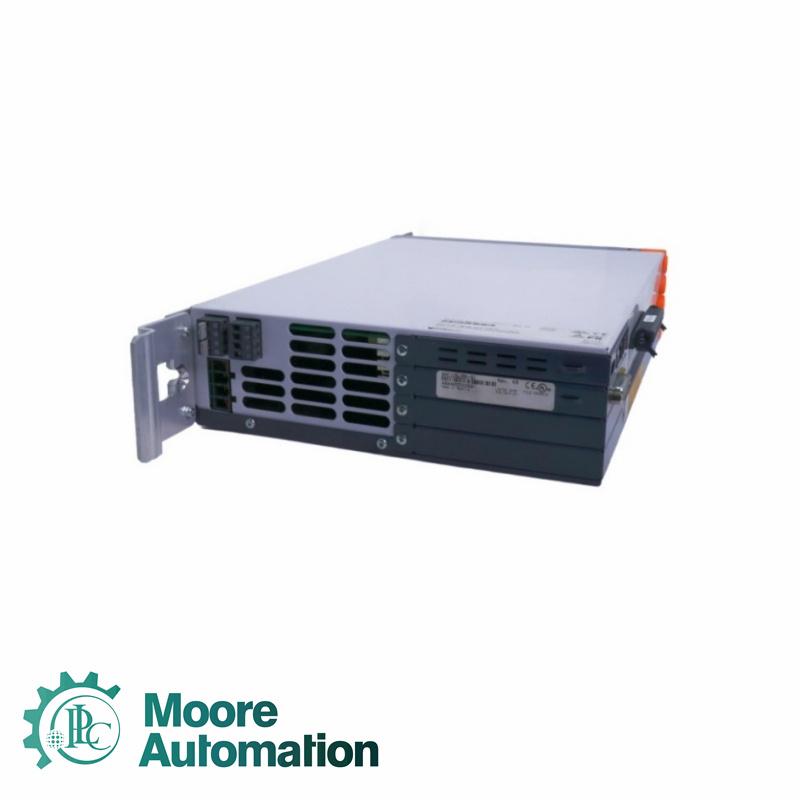

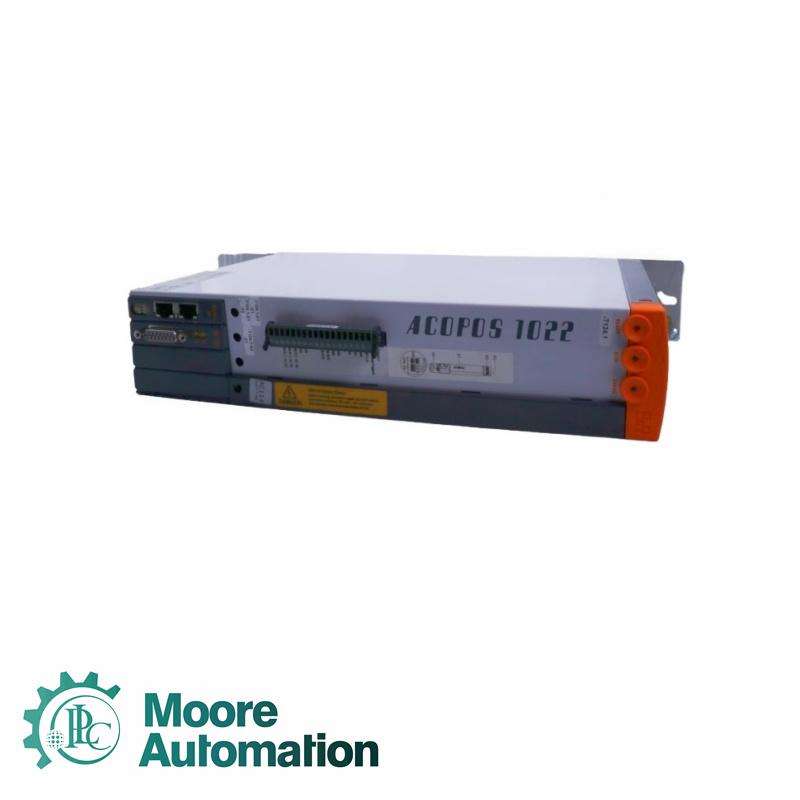

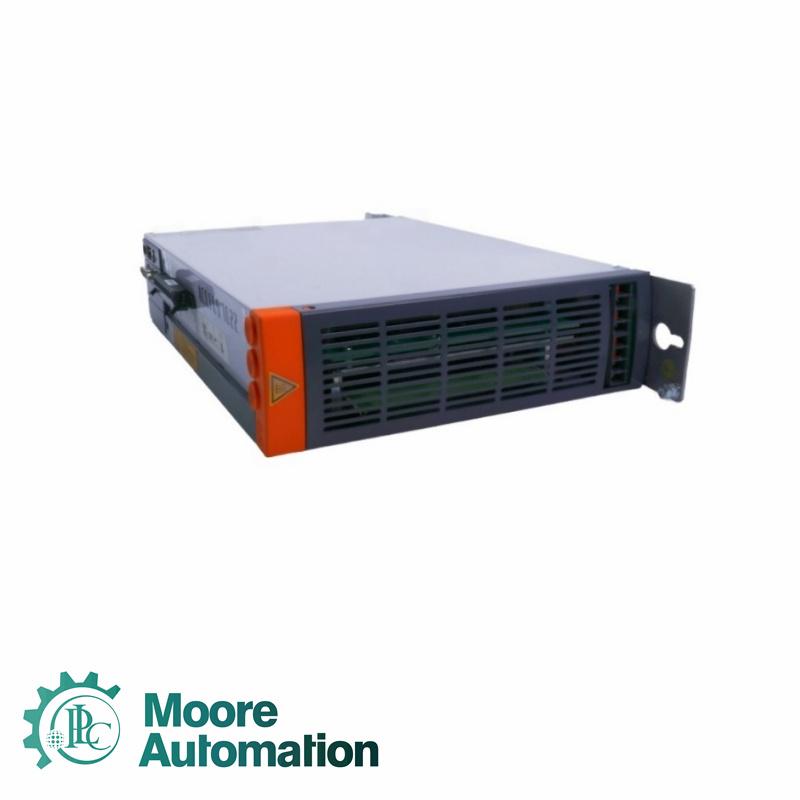

The B&R 8V1022.001-2 is a servo drive belonging to the ACOPOS 1022 series. This servo drive is used for high-precision electrical motion control, supports intelligent control of synchronous and asynchronous induction motors, and can be widely used in various compact industrial automated production lines.

Quick details
Brand name:	B&R
Model:	8V1022.001-2
Warranty period:	1 year
Condition:	100% original brand
Transportation period:	DHL FEDEX EMS UPS TNT

Welcome to Inquiry John Yang for more information

Email: sales3@askplc.com

Mobile(WhatsApp): 86-18150117685

Key Product Specifications

Dimensions	7 × 25 × 42 cm
Weight	4.06 kg
Plug-in Module Slots	4 slots
Certifications	CE; Functional Safety; UL cULus E225616; EAC; KC
Permissible Network Configurations	TT, TN
Mains Input Voltage	3 × 400…480 V AC ±10%; 3 × 230 V AC ±10%
Mains Frequency	50/60 Hz ±4%
Installed Load	Max. 3 kVA
Inrush Current	4 A at 400 V AC
Switch-on Interval	>10 s
Integrated Line Filter	Yes, according to EN 61800-3 Category C3
Power Dissipation	Approx. 120 W at nominal power without braking resistor
DC Bus Capacitance	235 µF
24 V DC Power Supply Input	24 V DC ±25%
Input Capacitance	8200 µF
Current Consumption	Max. 2.5 A + motor holding brake current
Continuous Current	2.2 Aeff
Continuous Current Derating (400 V AC)	No reduction at 5 kHz, 10 kHz, 20 kHz switching frequency
Continuous Current Derating (480 V AC)	No reduction at 5 kHz/10 kHz; 0.13 Aeff per °C reduction above 51 °C at 20 kHz
Installation Elevation Derating	Above 500 m: 0.22 Aeff reduction per 1000 m
Peak Current	14 Aeff
Nominal Switching Frequency	20 kHz
Available Switching Frequencies	5 kHz / 10 kHz / 20 kHz
Motor Insulation Stress Standard	IEC TS 60034-25:2004, Limit Value Curve A
Maximum Motor Cable Length	25 m
Overload Protection	Yes
Short Circuit Protection	Yes
Ground Fault Protection	Yes
Maximum Output Frequency	598 Hz

Application

Electronics Plant: Drive motion axes in die bonders, SMT, and dispensing robots.

Packaging Plant: Control feeding systems for packing and filling machines.

Printing Plant: Control tension and alignment of high-speed printing axes.

Pharmaceutical Plant: Execute precise motion in blister and filling machines.

Textile Plant: Drive positioning systems in knitting and winding machines.

Our service for you

Q: How about the warranty ?

A: Moore provide 12 months warranty for all the goods from us.

Q: Other supplier have a better price than yours.

A: "To create more benefit fir clients"is our belief, if you have a better price , please let we know , we will try best to meet your price and support you.

Q: We have not cooperation before , how we can believe you ?

A: For the in stock products, we can take pictures and videos before you process payment.

Q: What about shipment ?

A: We have DHL/FEDEX/UPS/CHIRLINE/Aramex,you can use your own freight forwarder for transportation.

Frequently Asked Questions (FAQ)

Q: How many slots does 8V1022.001-2 have?
A: It has 4 plug-in module slots.

Q: What is the 24 V DC power input range supported by 8V1022.001-2?
A: Its 24 V DC power input range is 24 V DC ±25%.

Q: What is the maximum installed load of 8V1022.001-2?
A: Its maximum installed load is maximum 3 kVA.

Q: What is the maximum output frequency of 8V1022.001-2?
A: Its maximum output frequency is 598 Hz.

Q: What is the approximate power consumption of 8V1022.001-2 at nominal power without brake resistor?
A: Its power consumption is approximately 120 W.
