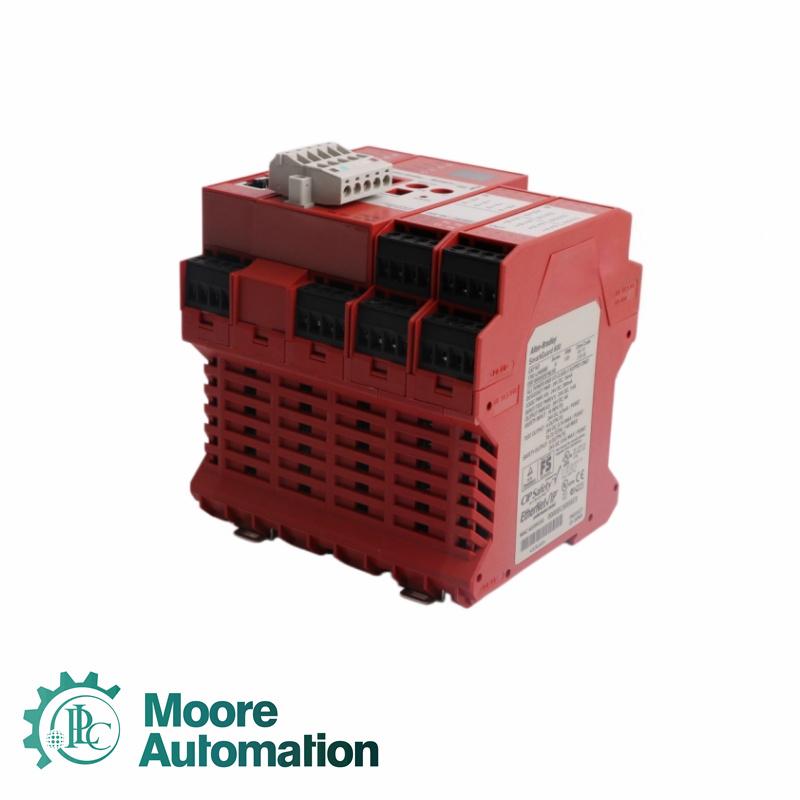

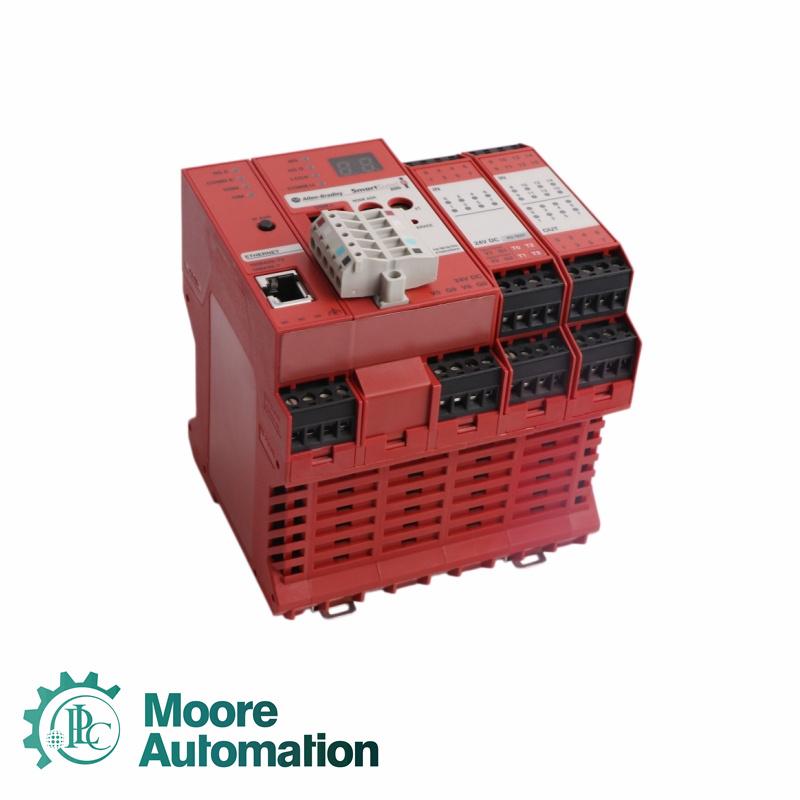

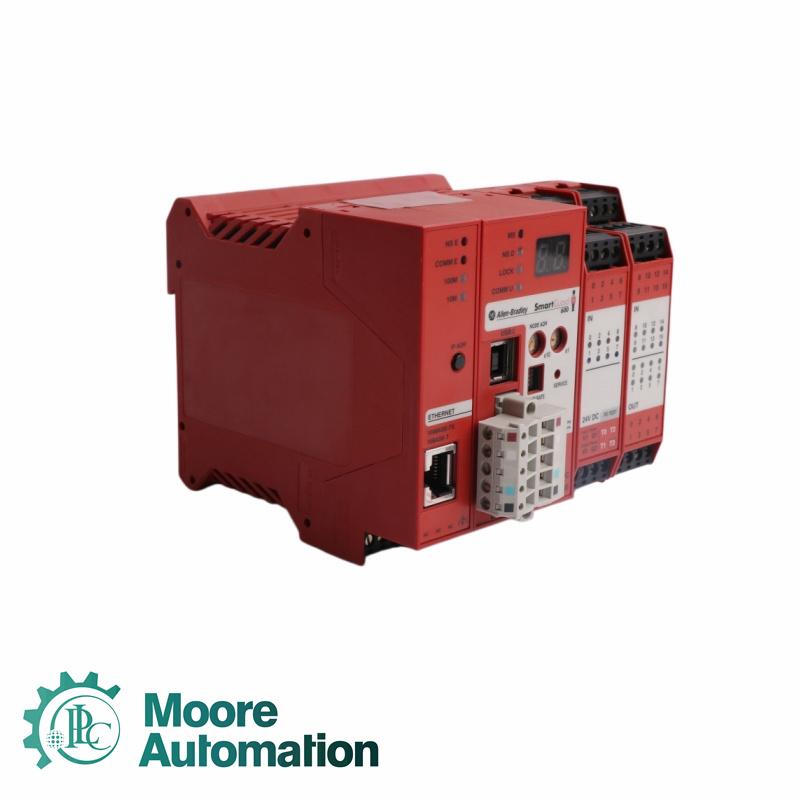

PLC 1752-L24BBBE Controller

100% Original New
1 Year Warranty
Competitive Pice
Email: sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

Have a quick look

The 1752-L24BBBE is a SmartGuard 600 Series compact safety controller. It is designed for moderately complex industrial safety control systems, filling the market gap between the inadequacy of traditional safety relays and the prohibitive cost of large safety PLCs such as GuardLogix. The "E" in the suffix indicates that this model is equipped with an EtherNet/IP communication interface.

Quick details
Brand name:	PLC
Model:	1752-L24BBBE
Warranty period:	1 year
Condition:	100% original brand
Transportation period:	DHL FEDEX EMS UPS TNT

Welcome to Inquiry John Yang for more information

Email: sales3@askplc.com

Mobile(WhatsApp): 86-18150117685

Key Product Specifications

Weight	0.58 kg
DeviceNet Current Load	Max. 15 mA @ 24 V DC
Supply Voltage	20.4…26.4 V DC (24 V DC, -15…10%)
Unit Power Supply Inrush Current	4.8 A peak for 600 μs @ V0/G0
Safety Input Power Supply Inrush Current	2.6 A peak for 3 ms @ V1/G1
DeviceNet Voltage Range	11…25 V DC
Internal Logic Current Consumption	280 mA @ 24 V DC (V0)
Overload Protection	Affected output shutdown with cyclic reconnecting
Isolation Voltage	50 V functional insulation; tested at 600 V AC for 60 s between all groups
Wire Type	Copper
Wiring Category	Power: Category 2; Signal: Category 1; Communication Ports: Category 1
Wire Size	Power and I/O: 0.2…2.5 mm² (12…24 AWG) solid wire; 0.34…1.5 mm² (16…22 AWG) flexible wire
I/O Terminal Screw Torque	0.56…0.79 N·m (5…7 lb·in)
North American Temperature Code	T4A
Input Type	Current sinking
Input ON-State Voltage	Min. 11 V DC
Input OFF-State Voltage	Max. 5 V DC
Input OFF-State Current	Max. 1 mA
Input Current	4.5 mA
Input Impedance	2.6 kΩ
Test Output Type	Current sourcing
Pulse Test Output Current	0.7 A
Pulse Test Surge Current	0.7 A
Pulse Test OFF-State Voltage	Max. 1.2 V
Pulse Test Output Leakage Current	Max. 0.1 mA
Output Type	Current sourcing
Output Current	0.5 A
Output Surge Current	0.5 A
Output OFF-State Voltage	Max. 1.2 V

Application

Automotive Plant: Monitor safety curtains, robot doors, and E-stop shutdowns.

Electronics Plant: Protect operators with precision assembly safety interlocks.

Food Processing Plant: Control guards, limit switches, and emergency stops.

Packaging Plant: Secure fences and stop systems on automated lines.

Machining Plant: Interlock CNC doors and spindle safety controls.

Our service for you

Q: How about the warranty ?

A: Moore provide 12 months warranty for all the goods from us.

Q: Other supplier have a better price than yours.

A: "To create more benefit fir clients"is our belief, if you have a better price , please let we know , we will try best to meet your price and support you.

Q: We have not cooperation before , how we can believe you ?

A: For the in stock products, we can take pictures and videos before you process payment.

Q: What about shipment ?

A: We have DHL/FEDEX/UPS/CHIRLINE/Aramex,you can use your own freight forwarder for transportation.

Frequently Asked Questions (FAQ)

Q: What is the DeviceNet current load of 1752-L24BBBE?
A: Its DeviceNet current load is maximum 15 mA @ 24 V DC.

Q: What is the supply voltage range of 1752-L24BBBE?
A: Its supply voltage range is 20.4 to 26.4 V DC.

Q: What is the heat dissipation of 1752-L24BBBE at maximum load?
A: Its heat dissipation at maximum load is 9.3 W.

Q: What is the input on-state voltage of 1752-L24BBBE?
A: Its input on-state voltage is minimum 11 V DC.

Q: What is the output current of 1752-L24BBBE?
A: Its output current is 0.5 A.
