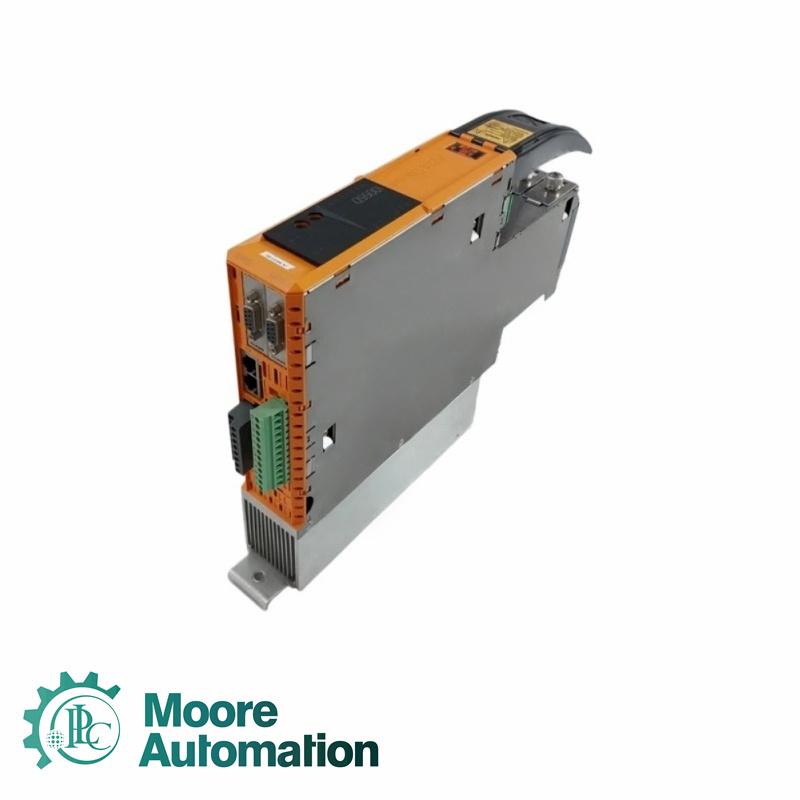

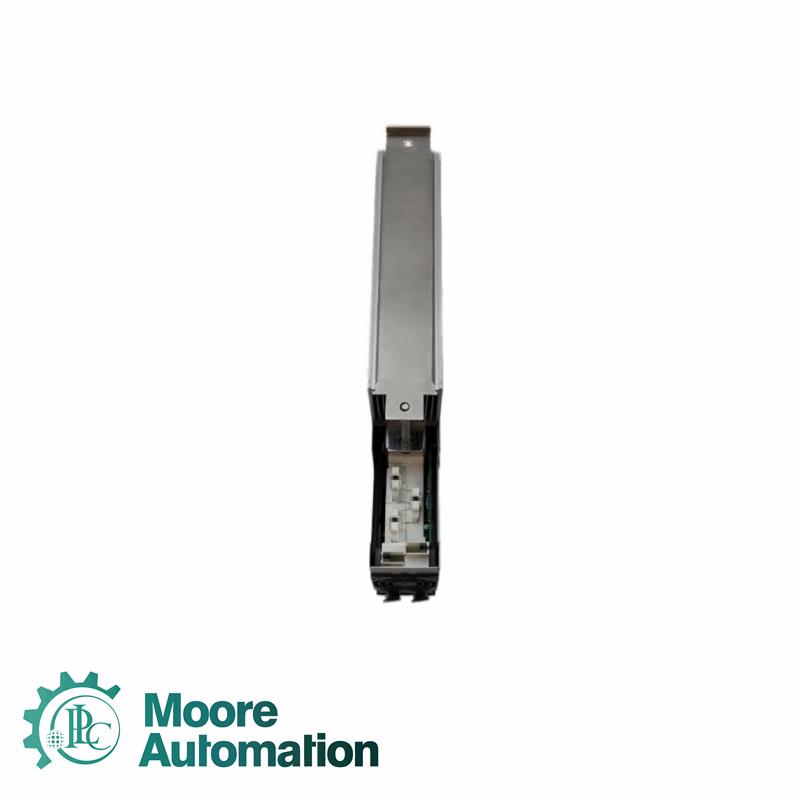

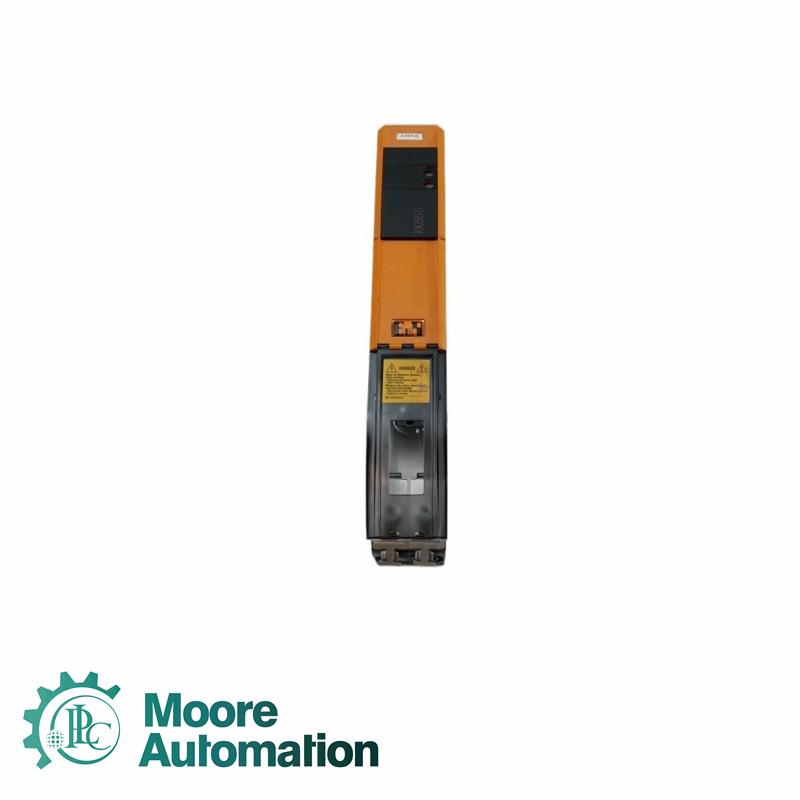

B&R 8BVI0055HWD0.000-1 ACOPOSmulti inverter module

B&R 8BVI0055HWD0.000-1 ACOPOSmulti inverter module

100% Original New
1 Year Warranty
Competitive Pice
Email: sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
Austria
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

Have a quick look

8BVI0055HWD0.000-1 is an ACOPOSmulti series dual-axis inverter module manufactured by B&R Industrial Automation. It is widely used in high-performance, high-precision multi-axis industrial motion control systems.

Quick details
Brand name:	B&R
Model:	8BVI0055HWD0.000-1
Warranty period:	1 year
Condition:	100% original brand
Transportation period:	DHL FEDEX EMS UPS TNT

Welcome to Inquiry John Yang for more information

Email: sales3@askplc.com

Mobile(WhatsApp): 86-18150117685

Key Product Specifications

Installation Elevation (Nominal)	0 to 500 m above sea level
Installation Elevation (Maximum)	4000 m above sea level
Pollution Degree	2 (Non-conductive pollution), EN 61800-5-1
Overvoltage Category	Category III, EN 61800-5-1
Protection Rating	IP20, EN 60529
Weight	Approx. 2.9 kg
Plug-in Module Slots	2
Certifications	CE, KC, UL/cULus (E225616), Power Conversion Equipment
Functional Safety	Supported
DC Bus Connection (Nominal Voltage)	750 VDC
Continuous Power Consumption	11.19 kW
24 VDC Input Voltage	25 VDC ±1.6%
Input Capacitance	23.5 µF
24 VDC Outputs	2
Output Voltage	260–315 VDC Bus: 25 VDC × (UDC/315); 315–800 VDC Bus: 24 VDC ±6%
Motor Connections	2
Continuous Power per Motor Connection	5.5 kW
Continuous Current per Motor Connection	7.6 Aeff
Peak Current per Motor Connection	18.9 Aeff
Nominal Switching Frequency	5 kHz
Available Switching Frequencies	5 / 10 / 20 kHz
Current Reduction (5 kHz)	No reduction
Current Reduction (10 kHz)	0.22 A/K (from 43°C)
Current Reduction (20 kHz)	0.15 A/K (from -14°C)
Current Derating (Altitude)	0.76 Aeff per 1000 m above 500 m
Motor Electrical Stress	IEC TS 60034-25, Limit Value Curve A
Motor Holding Brake Connections	2
Brake Output Voltage	24 VDC (+5.8% / -0%)
Brake Continuous Current	1.1 A

Application

Automotive Plant: Drive robot servo axes.

Packaging Plant: Control filling and labeling machines.

Printing Plant: Synchronize printing rollers.

Textile Mill: Drive spinning and winding machines.

Machine Tool Plant: Control CNC feed and spindle axes.

Our service for you

Q: How about the warranty ?

A: Moore provide 12 months warranty for all the goods from us.

Q: Other supplier have a better price than yours.

A: "To create more benefit fir clients"is our belief, if you have a better price , please let we know , we will try best to meet your price and support you.

Q: We have not cooperation before , how we can believe you ?

A: For the in stock products, we can take pictures and videos before you process payment.

Q: What about shipment ?

A: We have DHL/FEDEX/UPS/CHIRLINE/Aramex,you can use your own freight forwarder for transportation.

Frequently Asked Questions (FAQ)

Q: What is the continuous power consumption of 8BVI0055HWD0.000-1?
A: Its continuous power consumption is 11.19 kW.

Q: How many motor connections does 8BVI0055HWD0.000-1 support?
A: It supports 2 motor connections.

Q: What is the rated voltage of the dc bus connection for 8BVI0055HWD0.000-1?
A: Its rated bus voltage is 750 VDC.

Q: What is the maximum operating temperature of 8BVI0055HWD0.000-1?
A: Its maximum operating temperature can reach 55°C.

Q: How many plug-in module slots does 8BVI0055HWD0.000-1 have?
A: It has 2 plug-in module slots.
