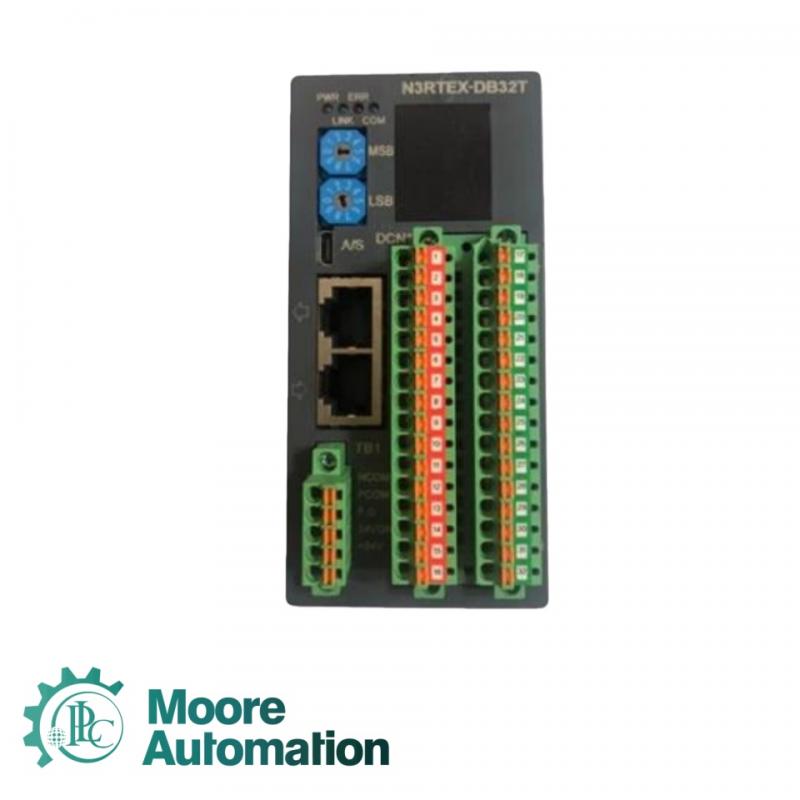

AJINEXTEK N3RTEX-DB32T Digital I/O Function Module

AJINEXTEK N3RTEX-DB32T Digital I/O Function Module

Brand:
Other
Order(MOQ):
1
Payment:
T/T
Product Origin:
South Korea
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

Item Info

Product Name: N3RTEX-DB32T

Brand: AJINEXTEK

Product Origin:South Korea

Order(MOQ): 1

Payment: T/T

Shipping Port: Xia men

Contact

John Yang

Email:sales3@askplc.com
Mobile(Whats App):86-18150117685

Description

The AJINEXTEK N3RTEX-DB32T controller is a high-performance digital input-output module that uses the Panasonic RTEX protocol and supports high-speed real-time communication. This module provides 16 channel digital input and 16 channel digital output, suitable for industrial automation applications that require high-speed data acquisition and control.The module is installed through a standard 35mm DIN rail and equipped with two RJ45 LAN interfaces, supporting high-speed communication with the main control board (such as PCI-Rx04). Both its input and output are designed with optocoupler isolation to ensure the stability and anti-interference ability of the system.

Key Info

Number of node：1 node
Module function：16ch digital Input，16ch digital Output
Slave ID setting：Decimal number rotary switch x2 (0~31)
Mounting method：Standard 35mm DIN rail mounting
Digital Input / Output：32ch, 24VDC Level
Input : Photo-coupler isolation (Above Min. 2mA/ ch)
Output : Photo-coupler + Drive IC ( Below Max. 50mA / ch)
Connector：Comm. RJ45 LAN x 2EA
DINKLE 16 x 2EA (ESC381VM-16P) or
Phoenix 16 x 2EA (MC 1,5/16-STF-3,81)
5pin Power ECH350RM-05P x 1EA
Power supply / Current consumption：DC 24V/250mA
Operating temperature / Humidity：Temperature 0 ~ 55°C / Humidity 5~90% (No condensation)
Storage temperature：-20 ~ 70°C
Weight：213g
Exterior dimension of product：112(H) mm x 90(D) mm x 54(W) mm

FAQ

Q: How many nodes does this module support (Number of nodes)?

A: This module supports 1 node and is suitable for single node slave communication structure. It can be recognized and configured by the upper computer or main controller.

Q: What are the main functions of this module?

A: The module integrates 16 digital input (DI) and 16 digital output (DO) functions, with a total of 32 channels, which can simultaneously achieve signal acquisition and device drive control.

Q: How to set Slave ID (Slave ID)?

A: It can be set through two decimal number rotary switches (x2) with a number range of 0-31, making it convenient for system multi module networking.

Q: What are the input and output signal standards for this module?

A: Both input and output adopt the 24V DC level standard, which is compatible with the signal requirements of mainstream industrial control systems.
