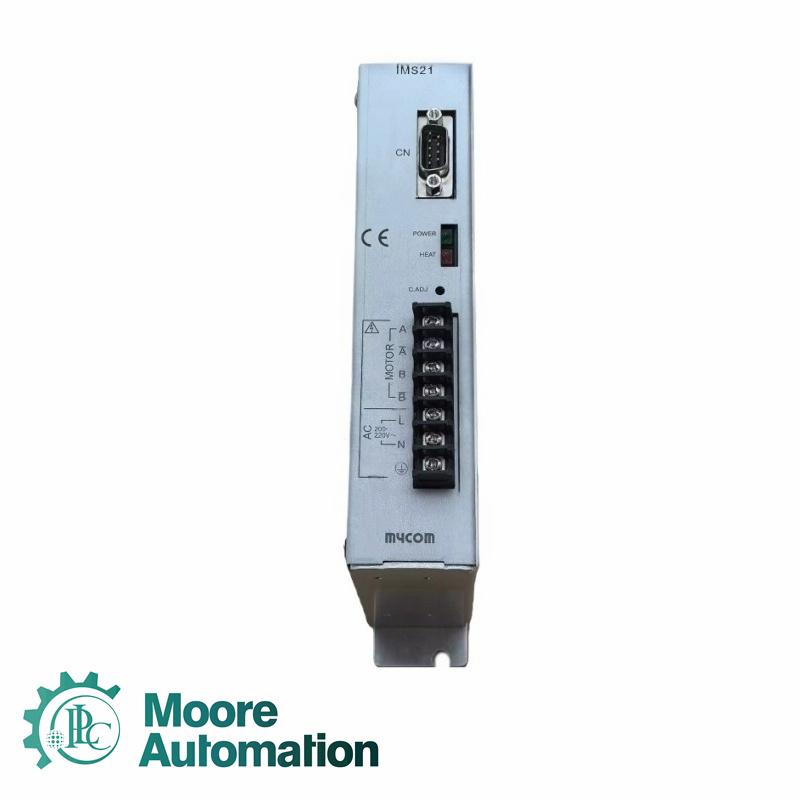

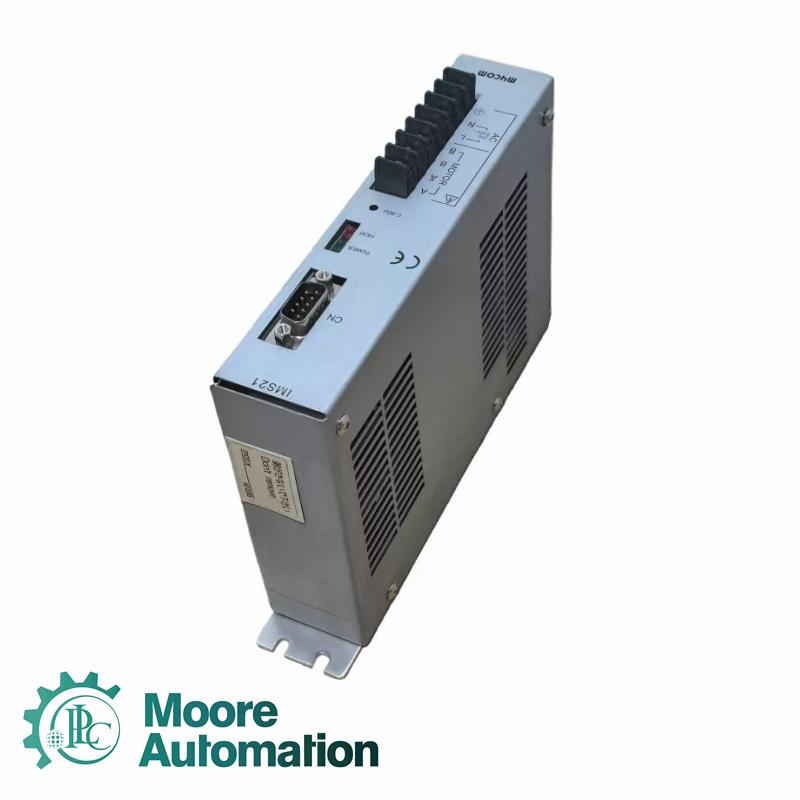

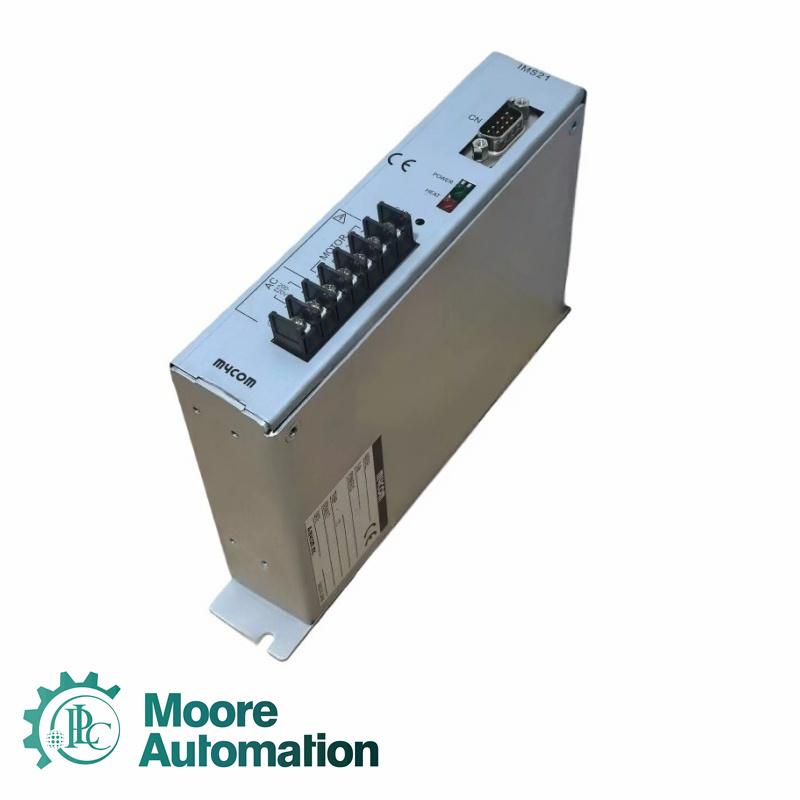

MYCOM IMS21-220 2 Phase Stepping Driver Unit

Contact John Yang

★Product Details

Drive Method:Bi-polar, constant current chopper driver
Power Requirement:Single Phase 200–220 VAC ±10%, 50/60 Hz
Power Consumption:460 VA or less
Output Current:2.0 A per phase
Resolution:Full Step 1.8°, Half Step 0.9°
Functions:Auto-current down, Auto-current OFF, Motor Current OFF input, Excitation timing output, Overheat output
Input Signals:CW (Pulse) input, CCW (Direction) input, CO (Current OFF) input
Input Type:Opto-isolated, Input resistance 390 Ω, Input current 8–10 mA, Signal voltage H: 4–5 V
Output Signals:MONI (Excitation timing) output, HEAT (Overheat) output
Output Type:Opto-isolated open collector, Max 25 V, 10 mA or less
Operating Environment:Temperature 0–+40 °C (no freezing), Humidity <80% (no condensation)
Storage Environment:Temperature -10–+60 °C (no freezing), Humidity <80% (no condensation)
Operating Altitude:Less than 1,000 m above sea level
Weight:730 g
