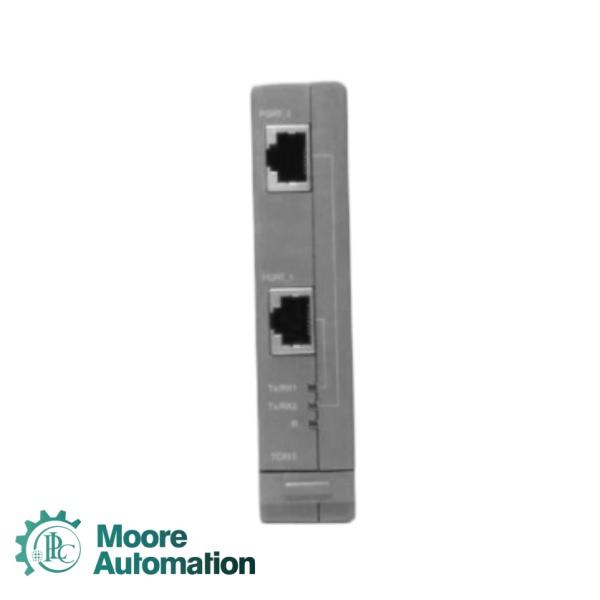

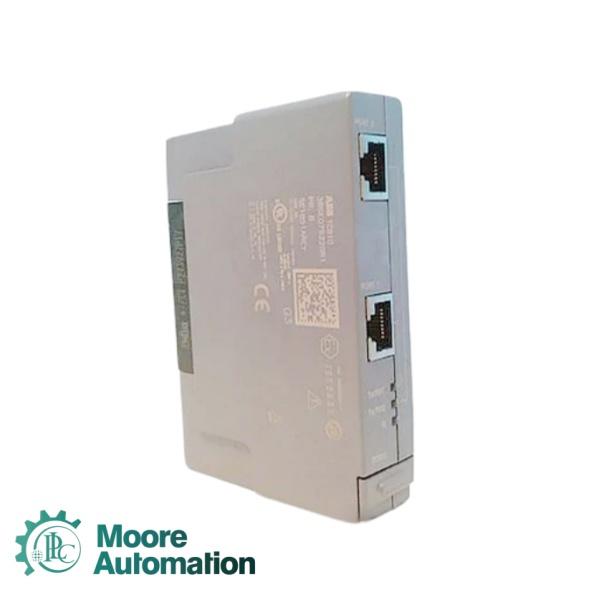

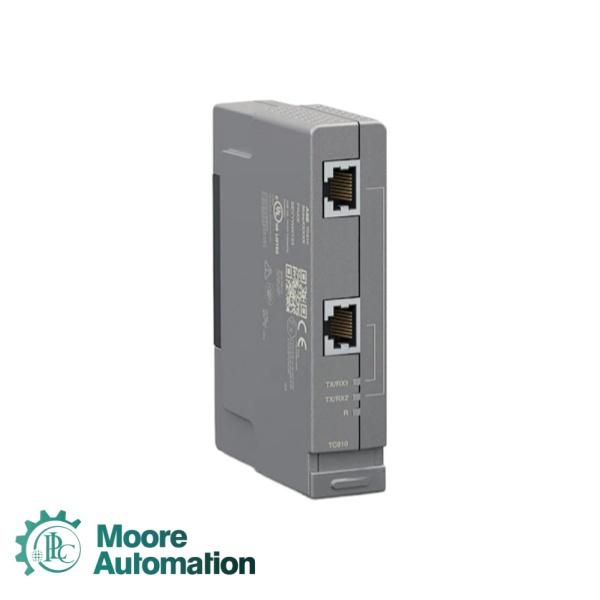

ABB TC810

The ABB TC810 is an Ethernet Adapter for copper media designed for the ABB Ability™ System 800xA automation platform . It is a key component of the Select I/O system, which is an Ethernet-networked, single-channel granular I/O system that helps decouple project tasks, minimize the impact of late changes, and support standardization of I/O cabinetry . The TC810 features a built-in 2-port (RJ45) switch and supports both Select I/O and S800 on Ethernet communication protocols . This allows the adapter to be used in either single or redundant configurations. For redundant setups, two TC810 Ethernet Adapters are required to be installed in the TU860 or TU865 Ethernet Field Communications Interface MTUs .

➫ More Detailed

Number of External Ports: 2 (built-in switch)

Type of Connecting Cable: CAT 5, WG 22 or better

24V Consumption (typical): 60 mA

Power Dissipation: 0.8 W

Operating Temperature: -40℃ to +70℃ (-40℉ to 158℉)

Storage Temperature: -40℃ to +85℃ (-40℉ to 185℉)

Relative Humidity: 5 to 95%, non-condensation

Altitude: -1000 to 5000 m

Application

✓ Process Automation: Provides Ethernet communication connectivity for Select I/O systems in continuous and batch process control applications across chemical, pharmaceutical, and food & beverage industries.

✓ Power Generation: Deployed in power plants for connecting I/O systems to the main control network in turbine control, boiler control, and balance of plant (BOP) applications.

✓ Oil & Gas Industry: Used in refineries, pipeline control systems, and offshore platforms where hazardous area certifications (ATEX/IECEx) are required .
