ABB NGDR-07C NGDR-07 FF1400R12IP4 IGBT Module Kit

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

Brand:
ABB
Order(MOQ):
1
Payment:
T/T
Product Origin:
SWEDEN
Color:
Brand New
Shipping Port:
Xiamen
Product Origin:
SWEDEN
Lead Time:
3-5 days

Product Detail

Ask For Quotation

Name：Yuki

Email：

sales6@askplc.com

Whatsapp：

+86 17359287459

Item Info

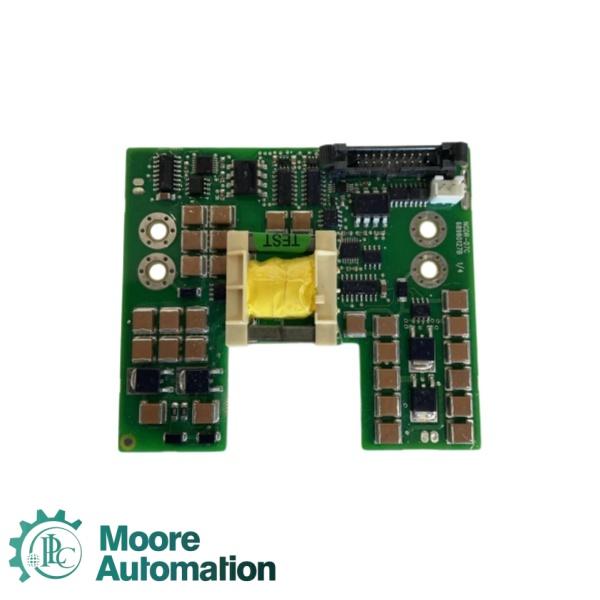

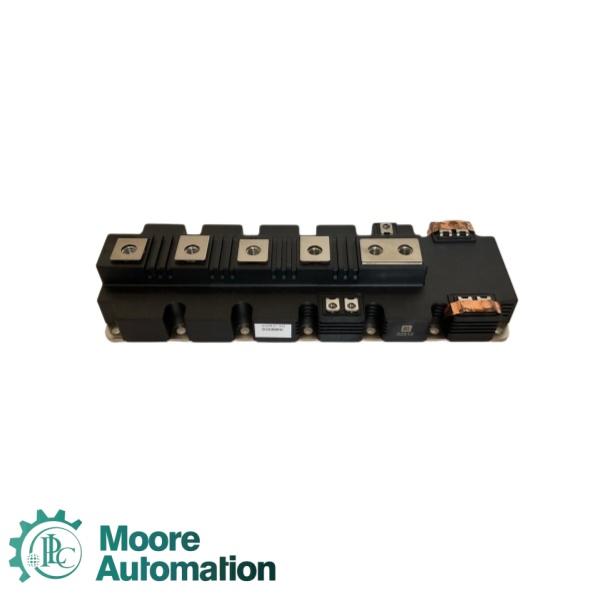

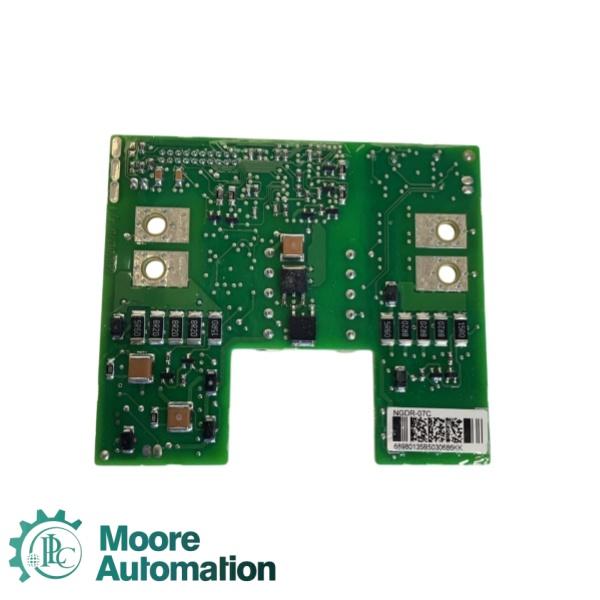

★ NGDR-07C NGDR-07 FF1400R12IP4 is a high-performance Inverter IGBT Module Kit designed for ABB ACS600 Series multi-drive industrial frequency inverters. This system integration consists of two highly specialized components: the ABB NGDR-07C (or NGDR-07) protection trigger driver control board and the Infineon FF1400R12IP4 high-power dual insulated-gate bipolar transistor (IGBT) module.The ABB NGDR-07C board serves as the vital intelligence layer, communicating directly with the drive control units to provide high-speed, real-time inverter triggering, diagnostics, and automatic fault-protection mechanisms. Mounted directly onto this circuit board is the Infineon FF1400R12IP4 module, which acts as the power core. Utilizing a half-bridge topology with an advanced Trench/Fieldstop IGBT4 chip layout and 4th-generation Emitter Controlled diodes, the module efficiently manages enormous electrical loads. An integrated Negative Temperature Coefficient (NTC) thermistor continuously monitors thermal variations to protect the assembly from overheating during heavy-duty cycles in applications like large motor drives, converters, and wind turbines.

Data Info

Collector-Emitter Voltage:	1200V
Continuous DC Collector Current:	1400A
Repetitive Peak Collector Current:	2800A
Total Power Dissipation:	7.65KW
Gate-Emitter Peak Voltage:	±20V
Collector-Emitter Saturation Voltage:	1.75V
Internal Gate Resistor:	0.8Ω
Operating Temperature Range:	-40℃ to +150℃
