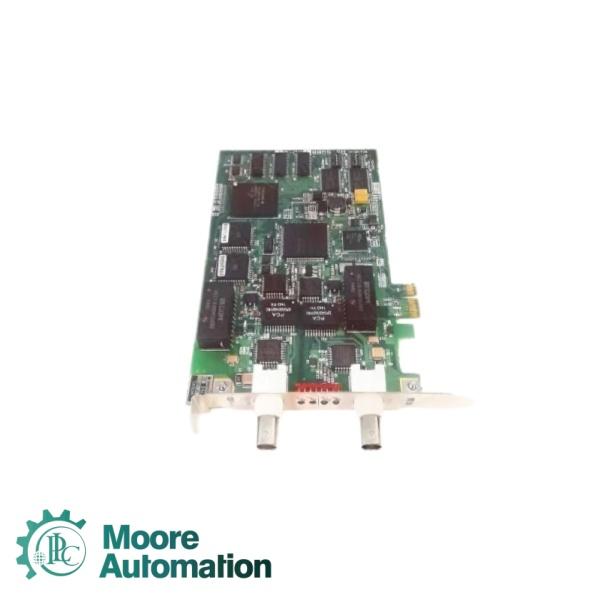

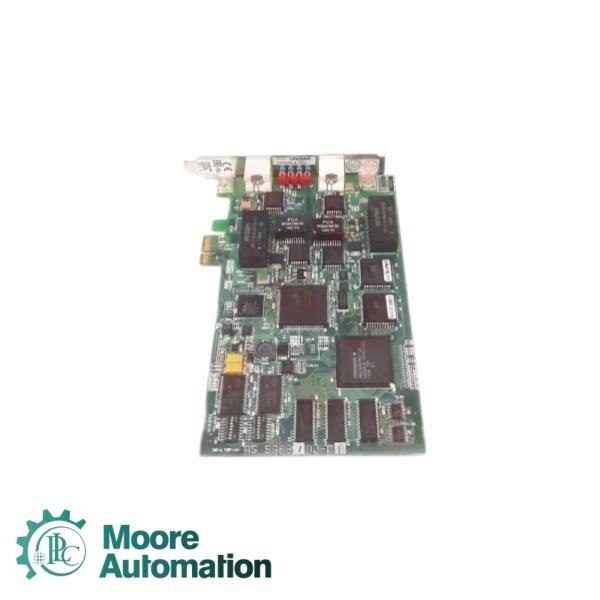

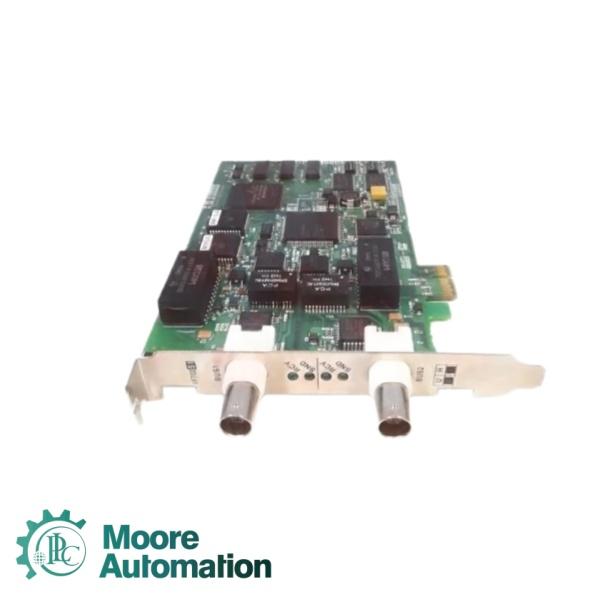

YOKOGAWA VF702 Control Bus Interface Card

│Contact us│

Sales manager: Yuki

Email: sales6@askplc.com

WhatsApp: +8617359287459

│Basic Information │

The Yokogawa VF702 Control Bus Interface Card is a dedicated communication module that facilitates real-time data exchange by bridging a standard computer’s internal PCI Express bus with Yokogawa's industrial V net control bus network. By seating this card into an expansion slot of a PC/AT-compatible operator or engineering workstation, users can achieve a continuous, deterministic connection to field control units (FCUs) across a distributed control system (DCS). The card features dual BNC connectors to maintain a dual-redundant V net architecture, relies on 10BASE-2 compliant coaxial cabling, and remains fully backward-compatible with older VF701 network card configurations within identical control loops.

│Details│

Signaling Rate: 2.5 GT/s link speed

Slot Physical Compatibility: Slots x1 through x1

Matching Cable Type: Model YCB141 V net coaxial cables

Maximum Network Distance: 185 meters (606 feet) using 10BASE-2 cable

Station Addressing Limit: Domain Numbers 1 to 31; Station Numbers 1 to 64

Input Power Voltage: 3.3 VDC ± 9%

Maximum Current Draw: 2.4 A

│Applications│

➟ DCS Human-Machine Interface (HMI) Linkage: Plugs directly into Human Interface Stations (HIS) or operator terminal computers to stream process graphics, trend histories, and manual operational inputs to and from plant floors.

➟ Engineering Station Configuration Management: Equips engineering workstations (EWS) with network access to push operational logic updates, modify loop tuning values, and execute database down-loads across the distributed system.

➟ Dual-Redundant Control Bus Architecture: Deploys in high-reliability process loops where dual V net lines must feed live redundant signals concurrently to guarantee an uncompromised backup link during a line rupture.

➟ Legacy Network System Upgrades: Acts as a modern drop-in hardware replacement for older PCI-based VF701 interface cards, enabling plant networks to mix and update aging PC hardware without forcing full DCS system overhauls.
