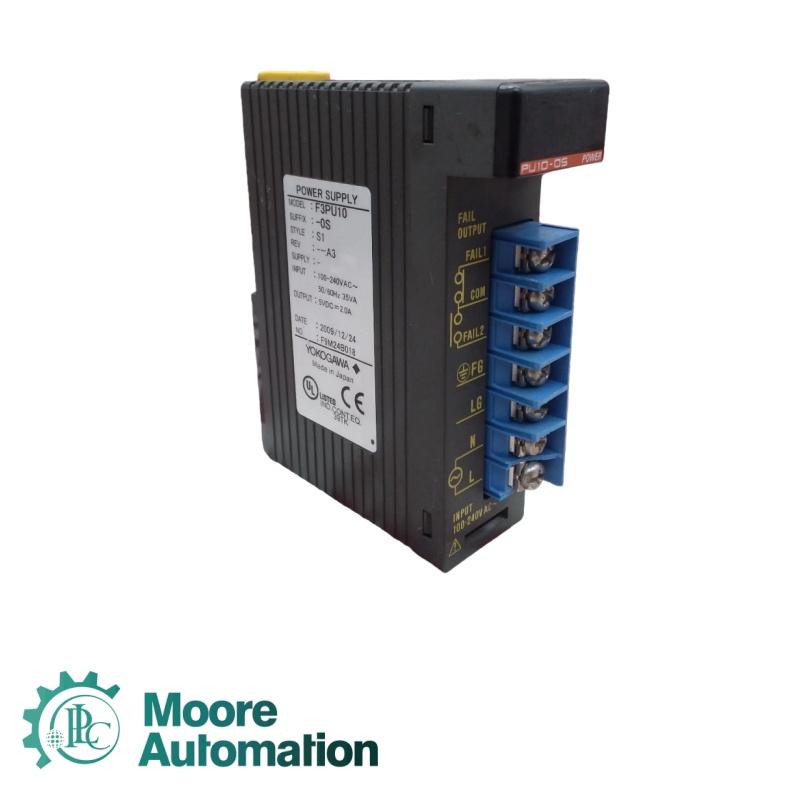

YOKOGAWA F3PU10-0S Power Supply Module

Establish Contact With Us

Input Voltage: AC 100–240 V (±10% tolerance), 50/60 Hz (±5% frequency tolerance)
Input Current (Rated): 1.8 A (at 100 V AC), 1.0 A (at 240 V AC)
Input Surge Withstand: 2500 V AC (10/700 μs surge, line to ground)
Output Voltage: DC 5 V (main output) + DC 24 V (auxiliary output)
Main Output (DC 5 V) Current: 10 A (continuous), 12 A (peak, 10 seconds)
Auxiliary Output (DC 24 V) Current: 1 A (continuous), 1.2 A (peak, 10 seconds)
Output Voltage Regulation: ±1% (DC 5 V), ±2% (DC 24 V) (full load, 25 °C)
Output Ripple & Noise: ≤ 50 mV p-p (DC 5 V), ≤ 100 mV p-p (DC 24 V) (20 Hz–20 MHz)
Efficiency: ≥ 85% (full load, 230 V AC input)
Overload Protection: 110%–150% of rated output current (hiccup mode, auto-recovery)
Overvoltage Protection: 115%–130% of rated output voltage (latch mode, manual reset)
Short Circuit Protection: Current limiting (hiccup mode, auto-recovery)
Operating Temperature Range: 0 °C to +55 °C (no derating); +55 °C to +60 °C (10% current derating)
Storage Temperature Range: -20 °C to +70 °C (relative humidity 5%–95%, non-condensing)
Relative Humidity: 5%–95% (operating/storage), non-condensing, no icing/dew formation
Vibration Resistance: 10–55 Hz, 0.5 mm double amplitude (X/Y/Z axes, 2 hours per axis)
Shock Resistance: 15 g (11 ms half-sine wave, X/Y/Z axes, 3 times per axis)
Isolation Voltage: Input to Output – 2500 V AC (1 minute); Output to Chassis – 500 V AC (1 minute)
Protection Class: IP20 (front panel), suitable for cabinet mounting (FA-M3 PLC rack installation)
Mounting Method: DIN rail mounting (35 mm standard rail) + FA-M3 PLC rack snap-in installation
