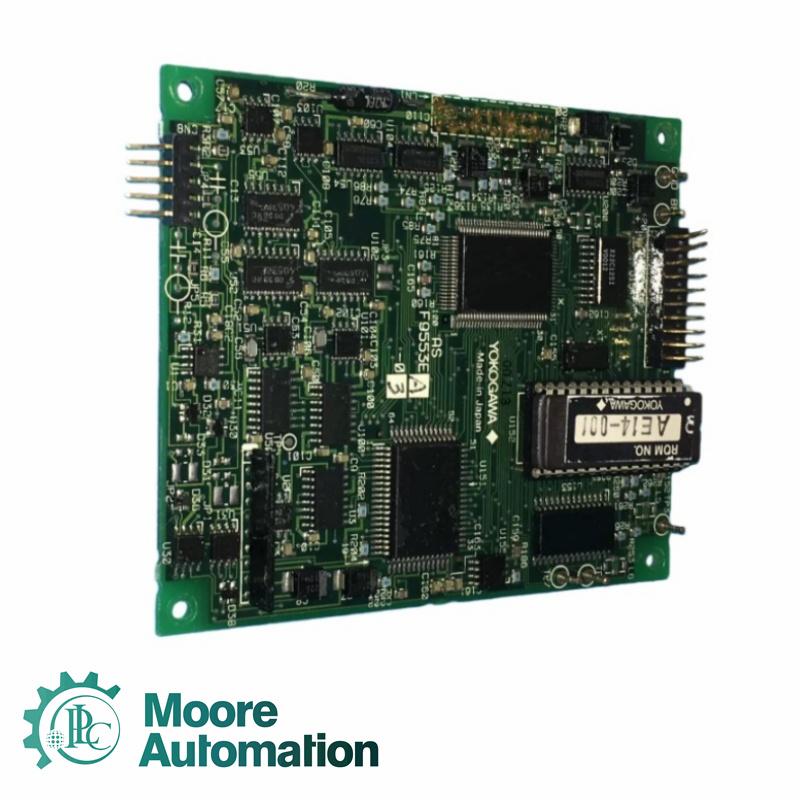

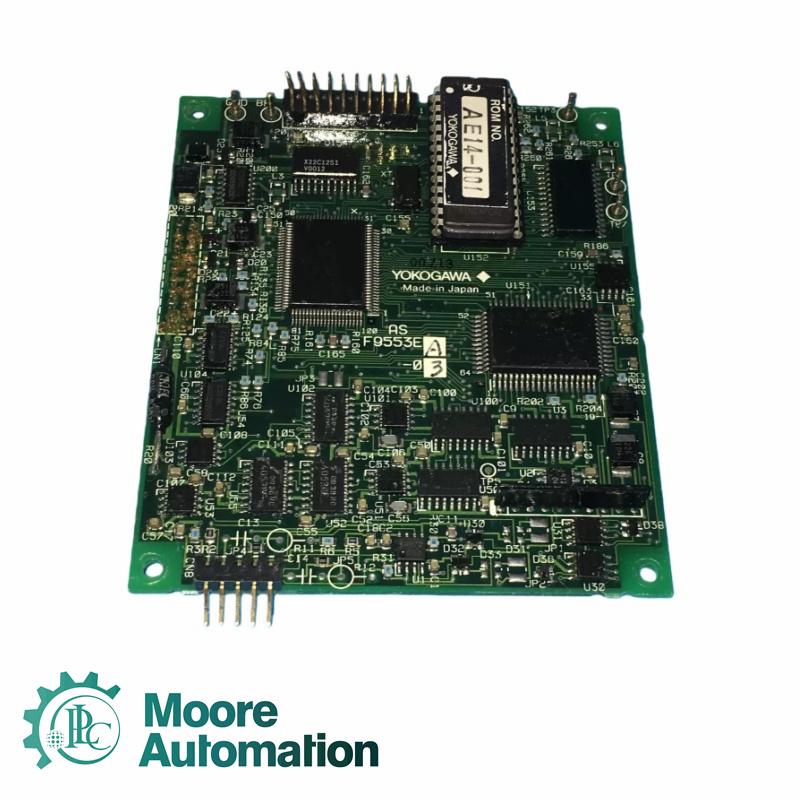

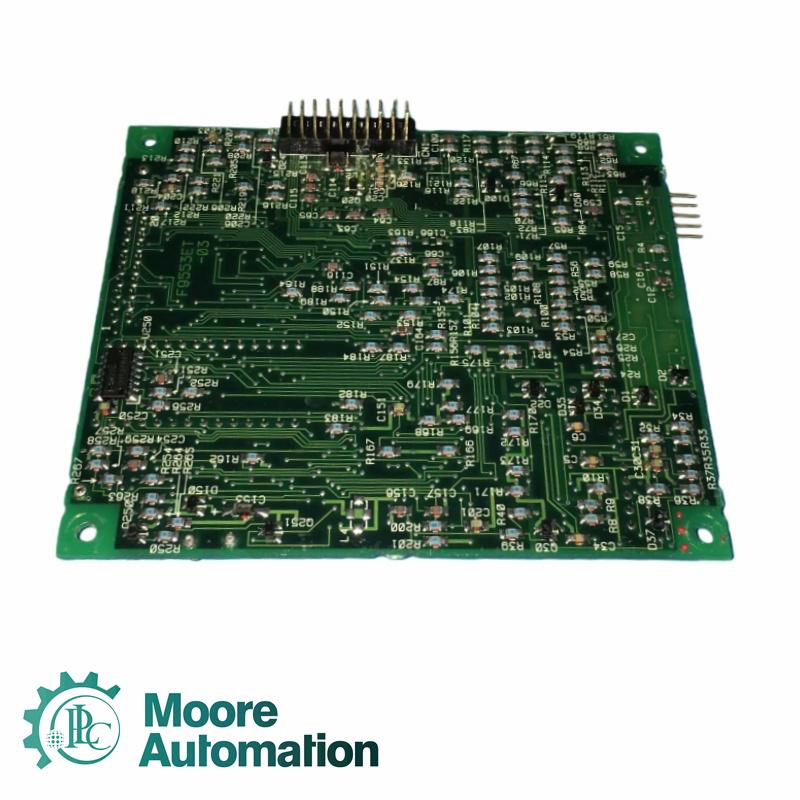

Yokogawa ASF9553EA-03 F9553ET-03 PCB Board

Contact Information

Product Infor

Specification

Number of Layers: 6 layers (including signal, power, ground)
Board Thickness: 1.6 mm
Base Material: FR‑4 (TG ~170 ℃)
Copper Thickness: 35 µm (1 oz)
Surface Finish: ENIG (Electroless Nickel Immersion Gold)
Solder Mask Color: Green
Silkscreen Color: White
Min Trace Width / Spacing: 4 mil / 4 mil
Via Hole Size: 0.3 mm drilled, 0.15 mm plating
Blind/Buried Vias: Supported
Impedance Control: Differential 100 Ω ±5%, Single-ended 50 Ω ±5%
Power Planes: Multi-power layers (~ +5V, +3.3V, GND)
Isolation Layers: Power/GND isolation
Pad Types: SMT pads + through-hole vias
