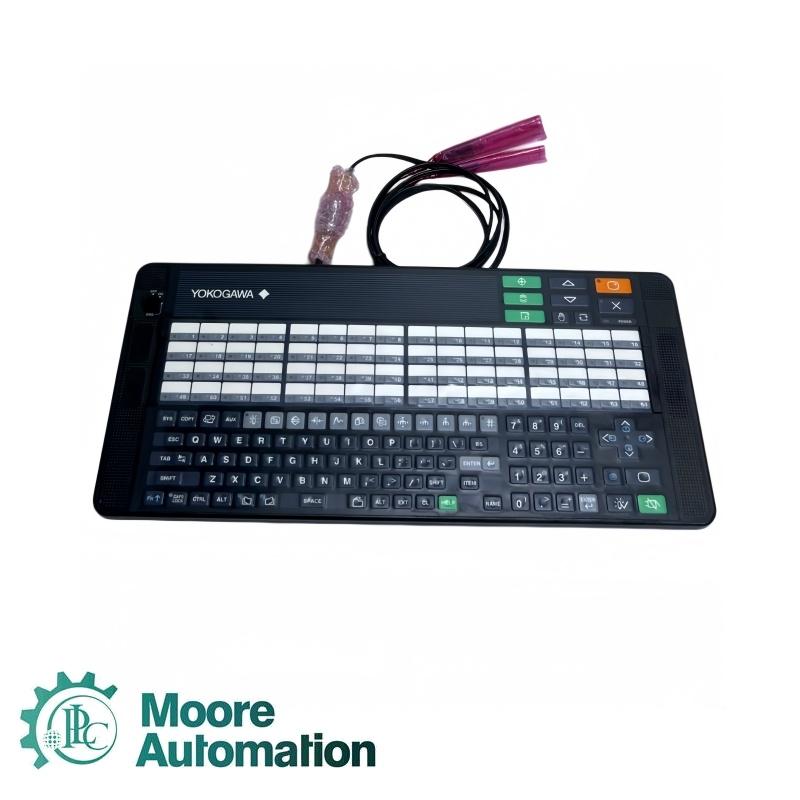

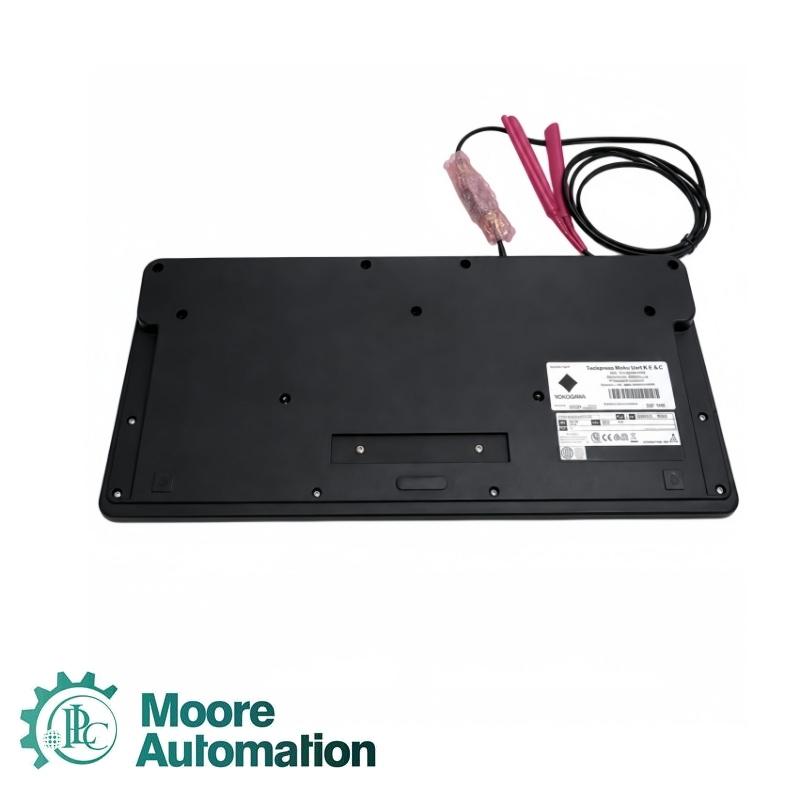

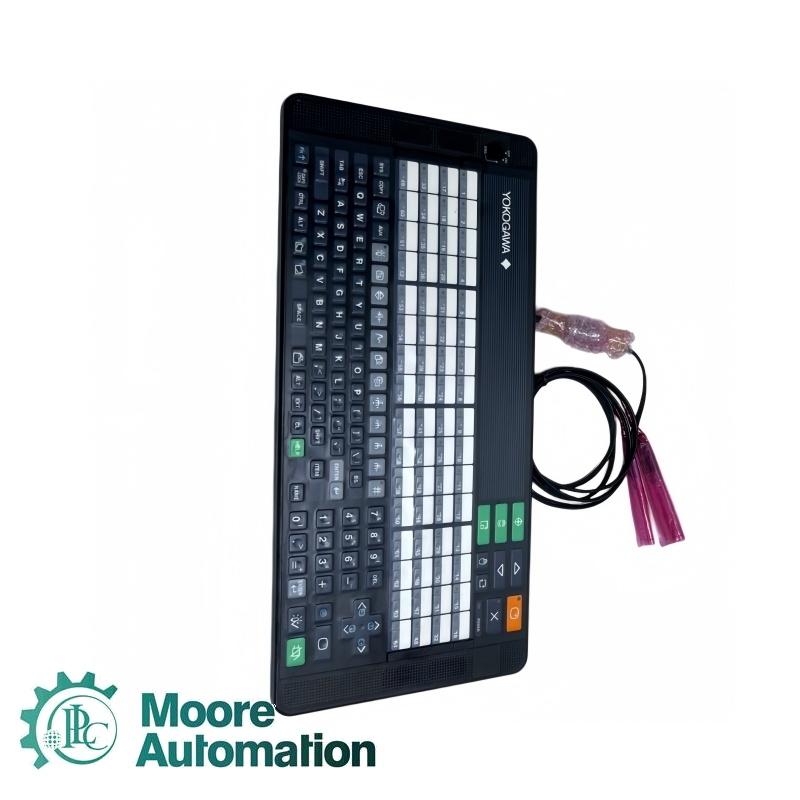

Yokogawa AIP830-101 S2 Operation Keyboard for Single-loop Operation

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
Japan
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
3-5 Days
Warranty:
1 Year

Product Detail

Specifications

The Yokogawa AIP830-101 S2 is an operation keyboard for single-loop operation with a Desktop Type HIS. Official Yokogawa documentation describes a flat keyboard with an independent USB sound function, 64 user-definable function keys and two USB Type-A connections. The AIP830-101 suffix configuration denotes a unit with a mode selection switch, Type A confirmation key and fixed final suffix 1; the user-supplied S2 marking should be checked against the product label and project records.

Product typeOperation keyboard for single-loop operation

Application interfaceDesktop Type HIS

Keyboard typeFlat keyboard

Mode selection switchWith switch

Confirmation key typeType A

Fixed suffix1

PC interfaceUSB Type-A × 2

Keyboard USBUSB 2.0 full-speed, bus-powered

Sound USBUSB 1.1 full-speed, bus-powered

Input voltage5 V ±5%

Maximum current1 A

Function keys64 user-definable keys

Cable length2300 ±100 mm

Dimensions (W × D × H)500 × 225 × 44 mm

Weight without VESA bracketApprox. 2.0 kg

Weight with VESA bracketApprox. 2.5 kg

Operating temperature5 to 40 °C

Storage / transport temperature-20 to 60 °C

Ambient humidity20 to 80% RH, non-condensing

Chassis colorBlack, Munsell N1.5 equivalent

Application Industry

Desktop HIS operationProvides dedicated single-loop operation controls for a compatible desktop human interface station.

Process monitoring workstationsSupports operator interaction with process displays, loop controls and assigned function-key workflows.

Alarm and operation handlingProvides dedicated keys and sound functions for configured control-room operating procedures.

Maintenance and replacementSupports replacement of an installed keyboard after suffix, connector, bracket and project configuration checks.

FAQ

Is AIP830-101 S2 intended for a Desktop Type HIS?

Yes. The official specification identifies this operation keyboard for use with a desktop human interface station. Verify the workstation configuration before replacement.

Why does AIP830-101 S2 use two USB connections?

One connection serves the operation-keyboard function and the other serves the independent USB sound function. Both are bus-powered.

What power supply is required for AIP830-101 S2?

Power is supplied from the computer USB interface at the specified voltage tolerance, with a maximum current consumption of one ampere.

Can AIP830-101 S2 be mounted with a VESA bracket?

The official specification lists an optional bracket. Confirm the option code, mounting surface and load capacity before installation.

Which suffix details should be checked before replacing AIP830-101 S2?

Confirm the presence of the mode selection switch, confirmation-key type, fixed suffix, optional bracket or sound-interface code, and the project-specific style marking.
