 Yokogawa ADV161-P50 S2 Digital Input Module
ADV161-P50 S2 ADV161-P50 S2 ADV161-P50 S2

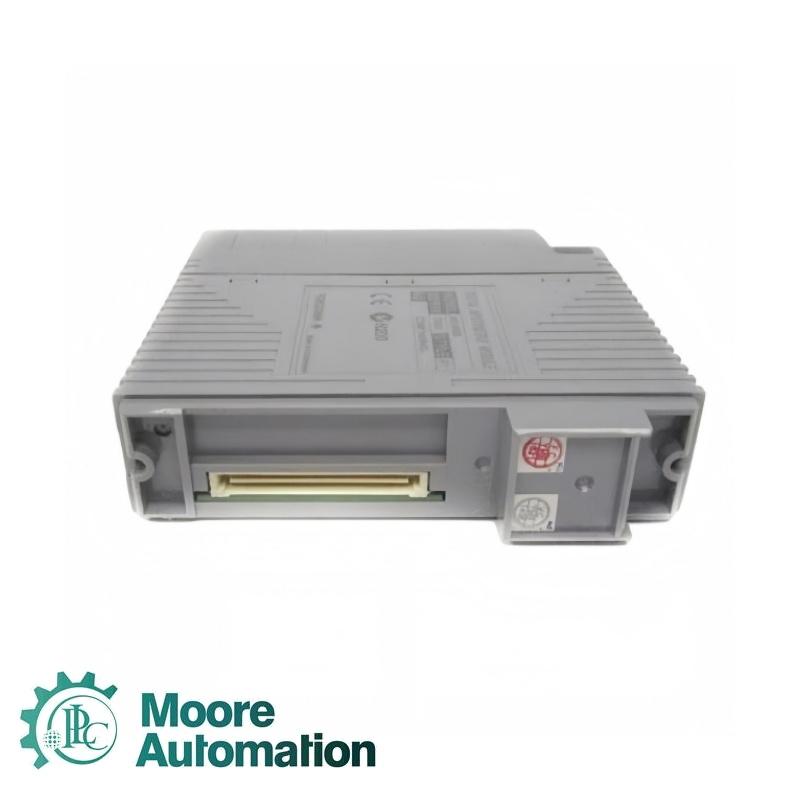

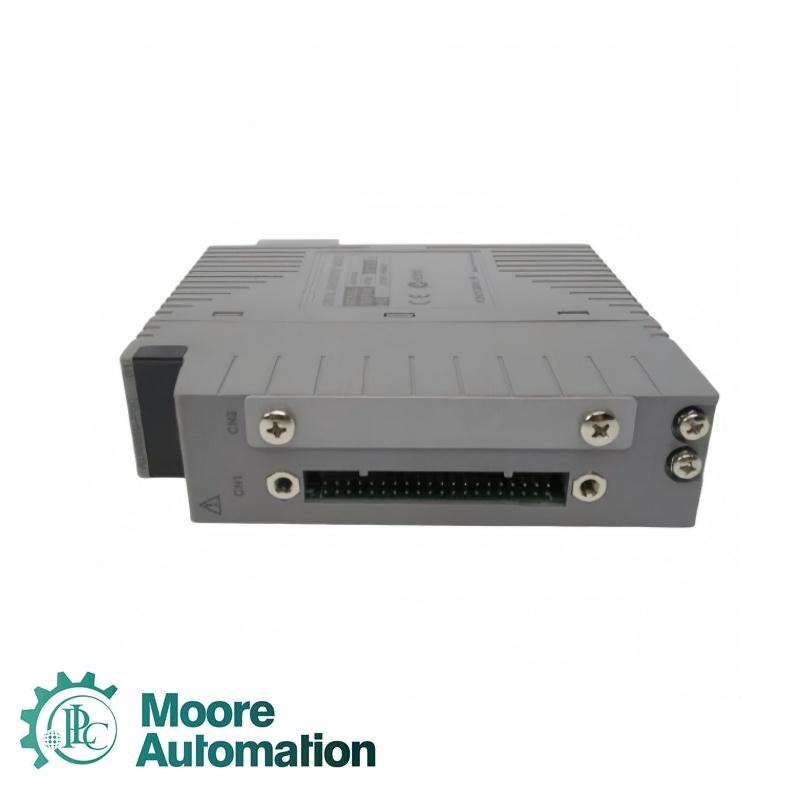

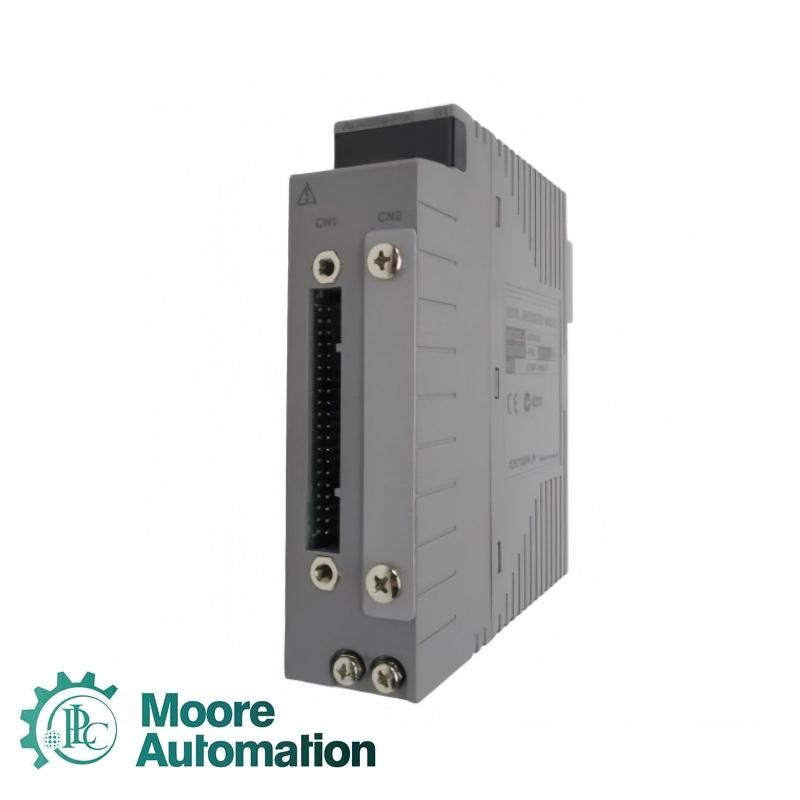

Yokogawa ADV161-P50 S2 Digital Input Module

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    Japan

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Warranty:

    1 Year

  • Product Origin:

    UK

  • Lead Time:

    3-5 Days
Contact Us

  • Product Detail

Specifications
The Yokogawa ADV161-P50 S2 is a 64-channel, 24 V DC isolated digital input module for FIO installations. It accepts sink/source ON/OFF signals, supports status and pushbutton input functions, and can be used in dual-redundant configurations. The P50 suffix identifies the pushbutton-input, no-status-display, basic configuration without explosion protection.
Product typeDigital input module
Order designationADV161-P50 S2
Base modelADV161
Input channels64
Rated input voltage24 V DC (sink/source)
Input ON voltage20 to 26.4 V DC
Input OFF voltage5.0 V DC or less
Input current2.5 mA ±20% per channel at rated voltage
Maximum allowable input voltage30.0 V DC
Signal groupingCommon every 16 channels
Status input functionON/OFF status detection
Pushbutton input functionPushbutton-edge counting
Status input response time8 ms or less
Minimum ON detection time20 ms
Maximum ON/OFF cycle25 Hz
Maximum current consumption550 mA at 5 V DC
WeightApprox. 0.30 kg
External connectionDedicated cable or MIL connector cable
Dedicated cableAKB337
Module width32.8 mm
Module height130 mm
Overall depthApprox. 119.9 mm
Suffix -PWith pushbutton input
Suffix 50Without status display; no explosion protection; basic type
Application Industry
01
CENTUM VP ESB bus nodesReceives 24 V DC field ON/OFF signals in supported ESB Bus Node Unit configurations.
02
Optical ESB bus nodesProvides high-density digital input points in supported Optical ESB Bus Node Unit installations.
03
Field control unitsConnects field status and pushbutton signals to supported Field Control Unit hardware.
04
Dual-redundant input configurationsSupports dual-redundant use where the system design and node hardware require it.
FAQ
Which systems accept Yokogawa ADV161-P50 S2?
The module is specified for supported ESB bus nodes, optical ESB bus nodes and field control units in the CENTUM VP hardware architecture.
What input polarity rule applies to Yokogawa ADV161-P50 S2?
All connected 24 V DC input signals must use the same polarity because the channels are arranged in common groups of sixteen.
Can Yokogawa ADV161-P50 S2 be used in a dual-redundant configuration?
Yes. Dual-redundant use is supported when the node, cabling and system engineering follow the official hardware configuration.
Which field-connection methods are supported by Yokogawa ADV161-P50 S2?
The module supports a dedicated cable connection or a MIL connector cable; cable selection must match the terminal-board and system design.
What should be checked when commissioning pushbutton inputs on Yokogawa ADV161-P50 S2?
Verify the 24 V DC thresholds, observe the 20 ms minimum ON detection time, keep the ON/OFF cycle within 25 Hz and confirm the configured point mode.
