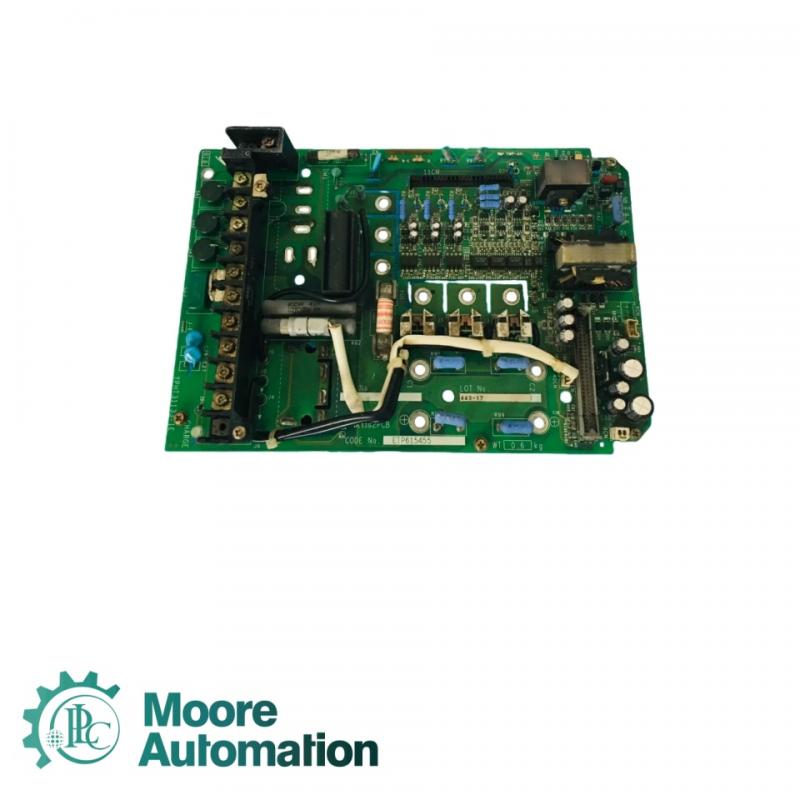

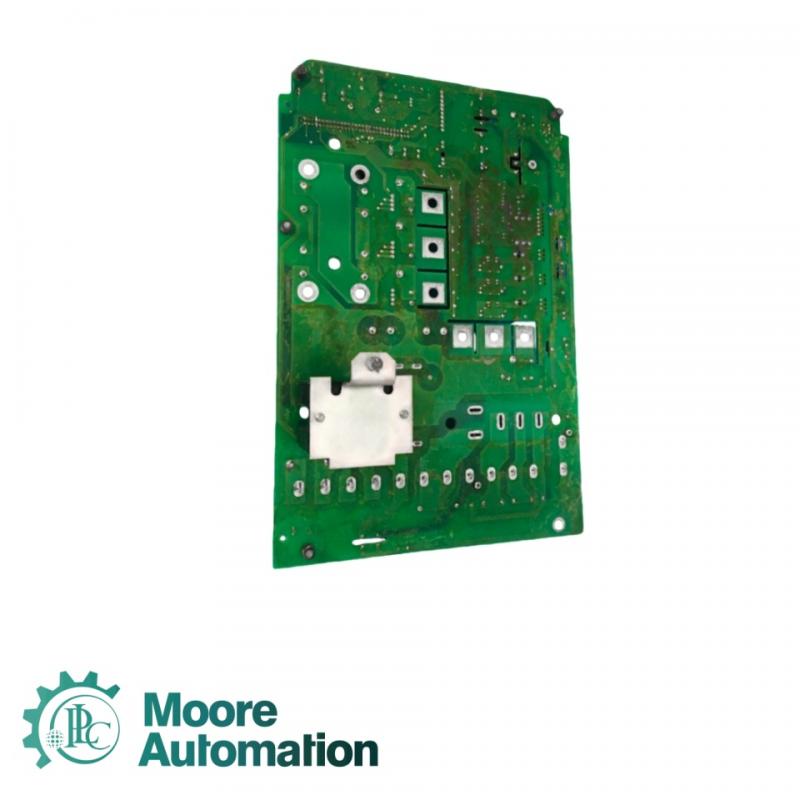

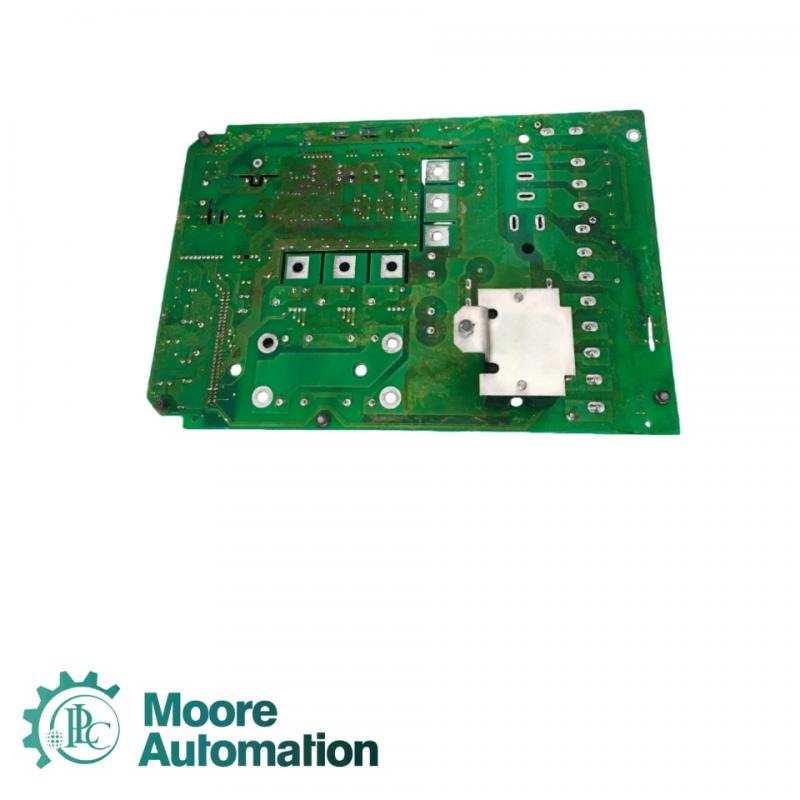

YASKAWA YPHT31133-1E ETP615455 driver board

YASKAWA YPHT31133-1E ETP615455 driver board

YASKAWA YPHT31133-1E ETP615455 driver board

Brand:
Other
Order(MOQ):
1
Payment:
T/T
Product Origin:
Japan
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

Product Details

Product Name:YPHT31133-1E ETP615455

Brand Name:YASKAWA

Product Origin:Japan

Order(MOQ):1

Payment: T/T

Shipping Port: Xia men

Lead Time：in stock

Delivery time: 1-3 days

Inquire with John Yang
Email: sales3@askplc.com	Mobile(Whats App): 86-18150117685

Device Information

This Yaskawa YPHT31133-1E ETP615455 driver board is a core control/power board designed specifically for Yaskawa drives, servo control systems, or inverter systems. It undertakes power conversion, drive signal processing, logic control, and protection functions. This board adopts highly reliable industrial components,with modular interfaces, fine signal isolation, overcurrent/overtemperature protection, and redundant monitoring mechanisms.

Specifications

Control board logic power supply voltage:+24V DC ± 10%
Static current of control board logic: ≈ 0.4 A (approximately 400 mA)
Maximum current of control board logic: ≈  1.0   A
Power module input voltage (power level): three-phase AC 380V~480V ± 10%
Rated input current of power module: ≈  30   A
Control board power consumption: approximately 12   W
Control signal input: 24V DC, logic level, digital/analog signal interface
Output signals: Drive power level (IGBT/SiC), feedback monitoring signal, fault alarm output
Temperature range (working environment): 0 ° C to+50 ° C (typical)
Temperature range (storage): -20 ° C to+70 ° C
Relative humidity: 5% to 90% (no condensation)
Shock/vibration tolerance: meets the industrial grade requirements of IEC standards

FAQ

Q : Which Yaskawa drives is compatible with this board?

A : Although the model is YPHT31133-1E, the public information does not

provide a complete compatibility list. We suggest that you compare the model

code and hardware version number on the original drive before replacing or

purchasing, or contact Yaskawa authorized service providers to confirm

compatibility.

Q : If the driver displays "board failure" or "control board error", is it possible that

the board is damaged?

A : Yes, because this board is responsible for logic control and signal monitoring

functions, if there are short circuits, power level abnormalities, temperature

overruns, or interface damage, it may cause driver fault prompts. Suggest

checking if the wiring, heat dissipation conditions, and power supply of the

board are normal.

Q : What should I do if the production of the panel exceeds the deadline？

A : The information shows that the model has been listed as "Discontinued

by Manufacturer" status.

Q : What is the ambient temperature range for the board?

A : Although not all data has been explicitly disclosed, typical industrial control

boards can operate between 0 ° C and+50 ° C, with storage temperatures

ranging from -20 ° C to+70 ° C. It is recommended to ensure that the

temperature, humidity, and ventilation conditions meet the requirements during

on-site installation.

Shipping & Packaging Details

▲We will dispatch the items within 3 working days upon receipt of payment.

▲All goods undergo strict testing prior to shipment.

▲Products are packaged in professional anti-static bags.
