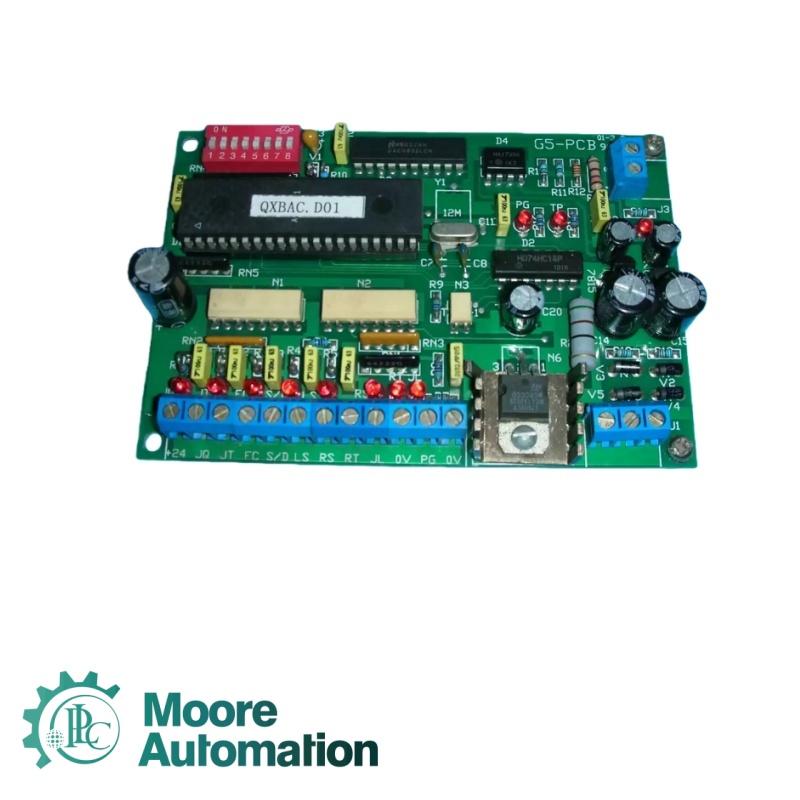

YASKAWA G5-PCB PCB Card Board

Product Parameters

Main Power Supply Voltage: AC Dual 15V (Supplied by the matching transformer of the card)
Logic Circuit Supply Voltage: DC24V
Analog Output Voltage: Matching inverter analog input voltage range (Connected to inverter terminal 13)
Input Signal Level Voltage: 0V (Low level effective for input signals such as JQ, JT, FC)
Output Signal Level Voltage: 0V (Low level output for transistor output signals such as JL, RT, RS)
Normal Operating Temperature: 0 - 40℃
Storage Temperature: -20 - 65℃
Brake Response Signal Delay Threshold: ≤0.3s (Response time limit for the card to send RT signal after receiving JT signal)
PG Pulse Input Range: 60 - 65 pulses per revolution (For 4-pole motors, matching PG-B2 card output)
PG Pulse Input Range for 6-pole Motors: 90 - 100 pulses per revolution (Matching PG-B2 card output)
Voltage Fluctuation Tolerance Range: ±10% of the rated supply voltage
Maximum Relative Humidity Tolerance: 80%

Detailed Product Info

Origin:Japan

Delivery time: 1-3 days

Brand name:YASKAWA

Payment method: T/T

Model: G5-PCB

Quality: 100% original and 100% brand

Warranty period: 1 year

Transportation period: DHL FEDEX EMS UPS TNT

·Condition: 100% brand new, factory sealed.

·Warranty: 12-month coverage.

·Packaging: Original manufacturer packaging in secure cartons.

·Delivery time: Ships within 3 days after payment.
