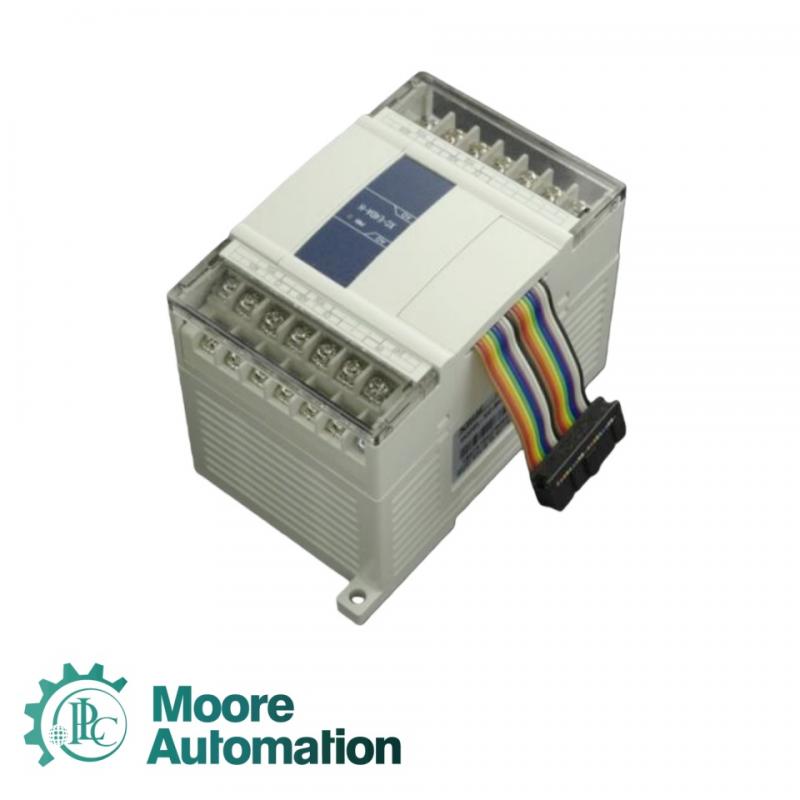

XINJE XC-E4DA Expansion Module

Product Specifications

Product Name:XC-E4DA

Brand Name:XINJE

Product Origin:China

Order(MOQ):1

Payment: T/T

Shipping Port: Xia men

Lead Time：in stock

Delivery time: 1-3 days

Contact John Yang: Sales Manager

Product Information

XINJE XC-E4DA is a PLC modular expansion module launched by XINJE, designed specifically for small and medium-sized PLC systems to increase the number of analog output points and expand the control capabilities of existing PLCs. This module is compatible with XC series PLC hosts and provides precise 4-channel analog output interfaces, which can directly control analog devices such as frequency converters, voltage regulators, temperature controllers, and other industrial equipment. The module adopts a DIN rail installation design, with a compact structure, supports hot swappable maintenance, and has strong anti-interference ability and fast response speed.

Parameter Information

Module function: 4-channel analog output (DA)
Output type: Voltage type 0~10V or current type 4~20mA (optional configuration)
Resolution: 12 bit (typical)
Load capacity: Voltage output ≥ 2 k Ω, current output ≤ 500 Ω
Update rate: 1 ms/channel (typical)
Communication method: Direct communication through XC series PLC backplane bus interface
Working voltage: DC 5V (provided by the main PLC)
Current consumption: approximately 100 mA (typical)
Working temperature: 0 ° C to+55 ° C
Storage temperature: -20 ° C to+75 ° C
Working humidity: 5% to 95% RH (no condensation)
Installation method: DIN rail 35mm installation
