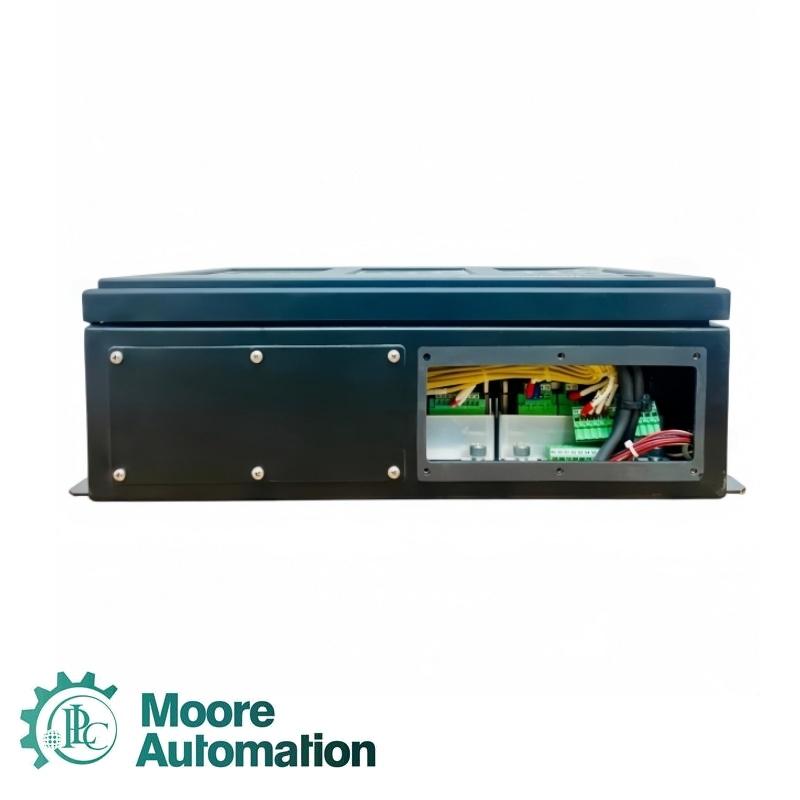

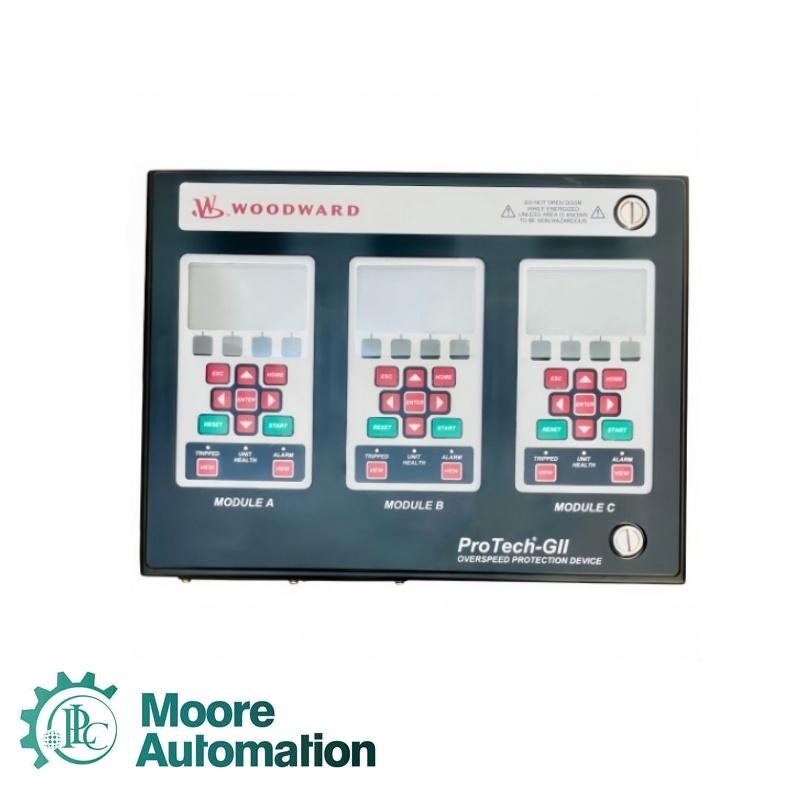

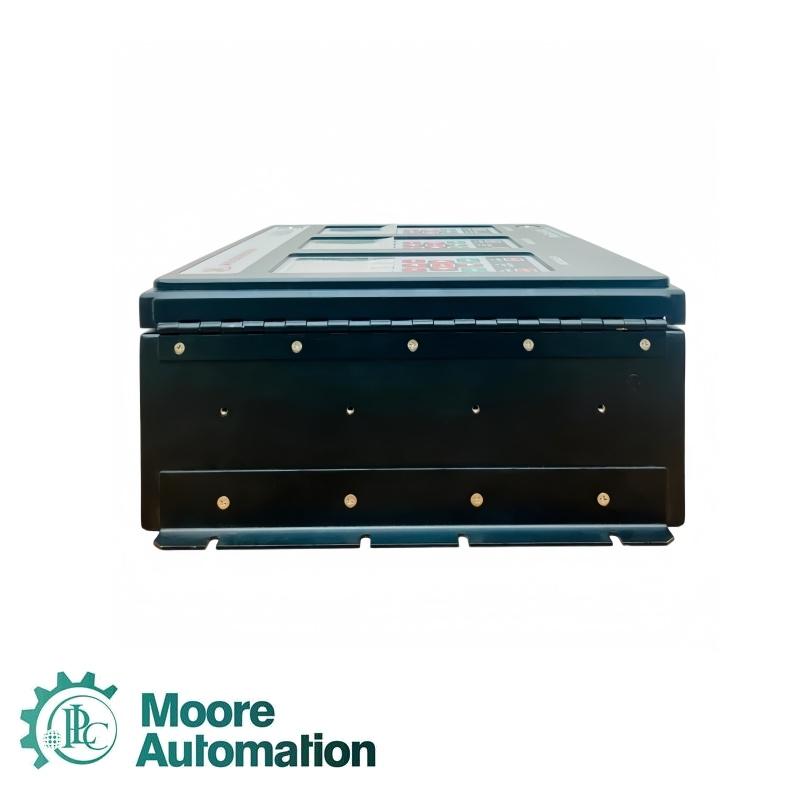

Woodward 8237-1246 ProTech-GII Overspeed Protection Device

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Warranty:
1 Year
Product Origin:
UK
Lead Time:
3-5 Days

Product Detail

Specifications

The Woodward 8237-1246 is a bulkhead-mount ProTech-GII overspeed protection device with triple-modular-redundant architecture and two-out-of-three voted trip logic. Each independent module accepts a passive magnetic pickup or active proximity-probe speed signal. The device provides voted relay outputs, isolated speed readback, event recording and selectable serial communication for turbine, engine and rotating-equipment protection.

Product typeOverspeed protection device

Product familyProTech-GII

MountingBulkhead mount

ArchitectureTriple modular redundant

Independent modules3

Voting logic2-out-of-3

Trip response time12 ms

Speed range0.5 to 32,000 rpm

Speed inputs3 total; 1 per module

Passive MPU frequency100 Hz to 32 kHz

Passive MPU signal1 to 35 Vrms

Passive MPU input impedance1.5 kΩ

Active probe frequency0.5 Hz to 25 kHz

Active probe supply24 V

Speed accuracy±0.04% of current speed at -20 to +60 °C

Acceleration accuracy±1%

Acceleration range0 to 25,000 rpm/s

High-voltage input90 to 264 Vac, 47 to 63 Hz; or 100 to 150 Vdc

Low-voltage input18 to 32 Vdc

Input power30 W per module

Voted relay outputs2 channels, Form C dual SPDT

Relay rating8 A at 220 Vac or 24 Vdc

Analog output4 to 20 mA isolated, 12-bit

Analog responseLess than 2 ms

Serial port1 per module; RS-232 or 2-wire RS-485

Operating temperature-20 to +60 °C

Storage temperature-20 to +65 °C

Relative humidityUp to 95%, non-condensing

Enclosure protectionIP56

Approximate weight12 kg

Application Industry

Steam turbine protectionProvides independent overspeed detection and voted trip output for steam-turbine shutdown systems.

Gas turbine protectionMonitors shaft speed and initiates rapid trip action when configured overspeed limits are exceeded.

Hydro turbine protectionSupports redundant speed protection for hydro-turbine generator sets.

Engines and rotating machineryApplies to reciprocating engines, compressors and other critical rotating equipment requiring overspeed protection.

FAQ

What mounting, power-input and relay configuration does 8237-1246 use?

The device uses bulkhead mounting, independent high-voltage and low-voltage supply inputs for each internal module, and voted trip relays.

Which speed sensors can be connected to 8237-1246?

Each internal module accepts one speed input configurable for a passive magnetic pickup or an active proximity probe. Signal levels and wiring must follow the official manual.

How does 8237-1246 perform trip voting?

Three independent internal modules use two-out-of-three voting so the voted relay output changes state when the configured trip condition is confirmed by the required channels.

What supply ranges are required for 8237-1246?

The high-voltage input accepts 90 to 264 Vac at 47 to 63 Hz or 100 to 150 Vdc, while the low-voltage input accepts 18 to 32 Vdc. Each input requires its own protective breaker.

What should engineers verify before commissioning 8237-1246?

Verify identical configuration across all three modules, correct probe selection and wiring, trip-relay logic, alarm behavior and the site overspeed-test procedure before service.
