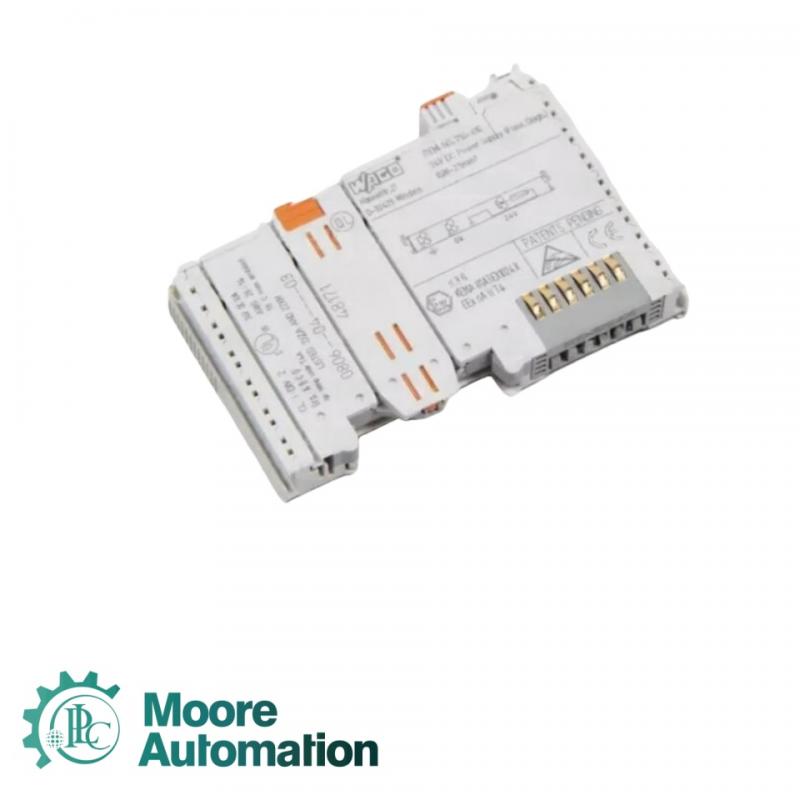

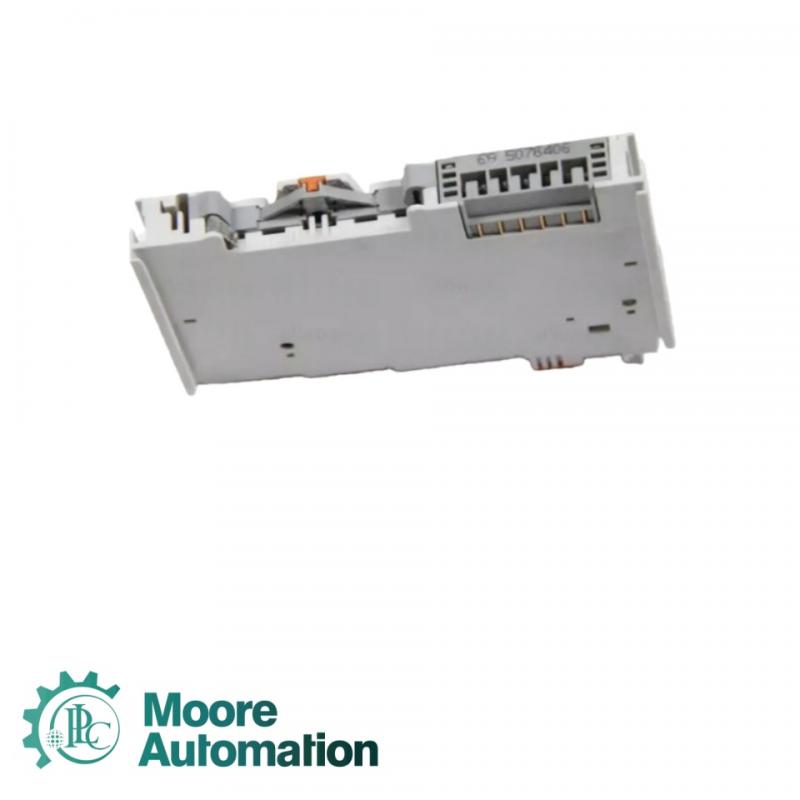

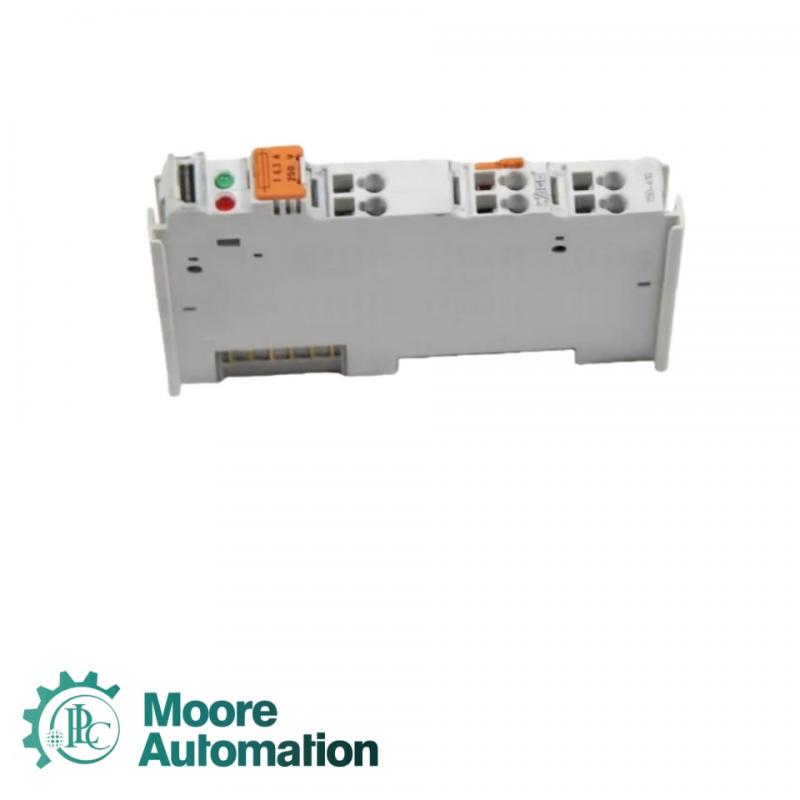

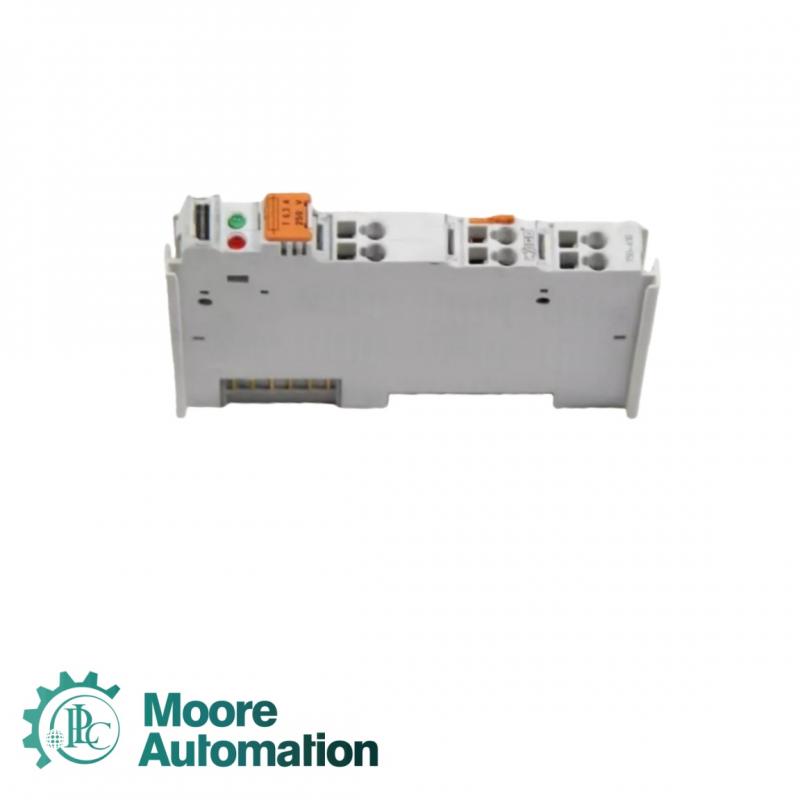

WAGO 750-614 Potential Distribution Module

WAGO 750-614 Potential Distribution Module

WAGO 750-614 Potential Distribution Module

Brand:
Other
Order(MOQ):
1
Payment:
T/T
Product Origin:
Germany
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

Product Description

Product Name: 750-614	Brand Name：WAGO
Product Germany	Payment: T/T
Shipping Port: Xia men	Delivery time: 1-3 days

Contact John Yang

Email: sales3@askplc.com

Mobile(Whats App): 86-18150117685

General Information

The WAGO 750-614 is a high-performance potential distribution module designed for modular I/O systems. It provides a reliable and flexible solution for distributing voltage signals within automation systems, ensuring safe and consistent power supply to multiple field devices. This module is compatible with the WAGO 750 series I/O system, facilitating modular and expandable wiring configurations in industrial and marine environments.

Specification Details

Signal Type (Voltage): 0 … 230 VAC/DC
Supply Voltage (System): 5 VDC via data contacts
Supply Voltage (Field): 230 VAC/DC via power jumper contacts (field side supply voltage via spring contact)
Number of Incoming Power Jumper Contacts: 2
Number of Outgoing Power Jumper Contacts: 2
Current Carrying Capacity (Power Jumper Contacts): 10 A
Connection Technology (Field Supply): 8 × CAGE CLAMP®
Connectable Conductor Materials: Copper
Connection Type: Field Supply
Solid Conductor Range: 0.08 … 2.5 mm² / 28 … 14 AWG
Fine-Stranded Conductor Range: 0.08 … 2.5 mm² / 28 … 14 AWG
Strip Length: 8 … 9 mm / 0.31 … 0.35 inches
Width: 12 mm / 0.472 inches
Height: 100 mm / 3.937 inches
Depth: 69.8 mm / 2.748 inches
Depth from Upper-Edge of DIN-Rail: 62.6 mm / 2.465 inches
Operating Temperature: 0 … +55 °C
Storage Temperature: -40 … +85 °C
Operating Altitude: 0 … 2000 m / 0 … 6562 ft
Mounting Positions: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top, vertical bottom
Relative Humidity (Without Condensation): 95%
Vibration Resistance: 4 g per IEC 60068-2-6
Shock Resistance: 15 g per IEC 60068-2-27
EMC Immunity to Interference: per EN 61000-6-2 (marine applications)
EMC Emission of Interference: per EN 61000-6-3 (marine applications)
Exposure to Pollutants: per IEC 60068-2-42 and IEC 60068-2-43
Permissible H2S Contaminant Concentration (RH 75%): 10 ppm
Permissible SO2 Contaminant Concentration (RH 75%): 25 ppm
Product Group: 15 (I/O System)
Packaging Unit (PU/SPU): 1 pcs

FAQ

Q: What is the system supply voltage for the module?
A: The system supply voltage is 5 VDC via data contacts.

Q: What is the field supply voltage?
A: The field supply voltage is 230 VAC/DC via power jumper contacts, with transmission via spring contact.

Q: How many incoming and outgoing power jumper contacts does the module have?
A: It has 2 incoming and 2 outgoing power jumper contacts.

Q: What is the maximum current capacity of the power jumper contacts?
A: The current carrying capacity is 10 A.
