VIBRO METER VM600 RPS6U SIM-275D-24 200-582-200-013 DC RACK POWER SUPPLY

Get in Touch

◼Sales Mnager：Yuki

◼Email: sales6@askplc.com

◼Whats App: +86 17359287459

Introduce

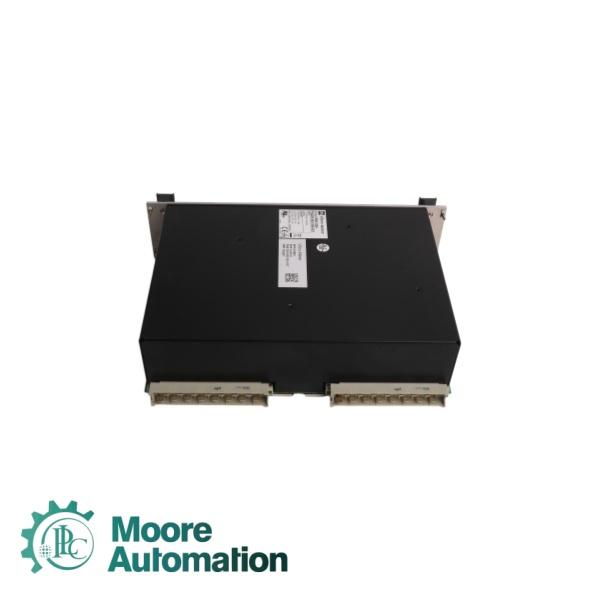

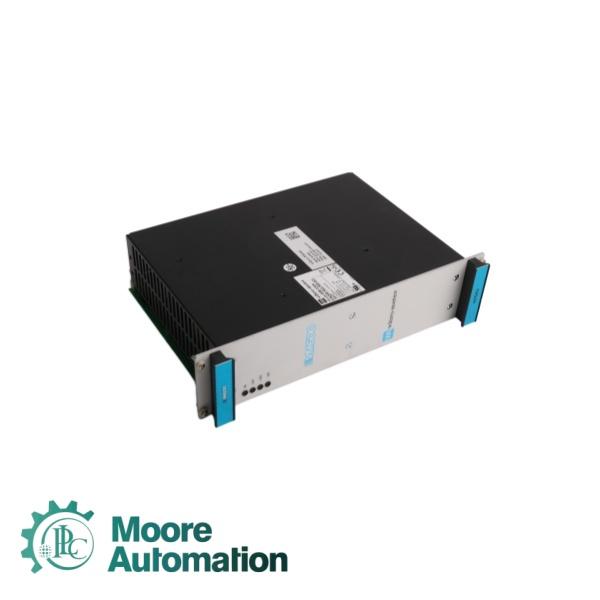

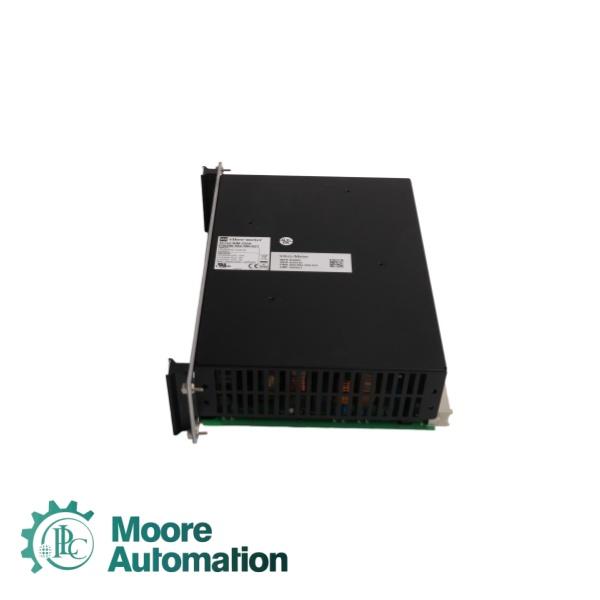

The VM600 RPS6U SIM-275D-24 (200-582-200-013) is a DC-input rack power supply designed for the VM600 ABE04x system rack (19″ rack, 6U height) . It is a key component of Meggitt’s vibro-meter® VM600 series, used in machinery protection systems (MPS) and condition monitoring systems (CMS) . This power supply installs in the front of the ABE04x rack and connects via two high-current connectors to the VME bus of the rack‘s backplane, providing +5 VDC and ±12 VDC to the rack and all installed modules .

       The SIM-275D-24 designation indicates a 24V DC-input version of the RPS6U power supply . This model is part of the later generation (PNR 200-582-x00-02h or later) that provides a higher total maximum output power of 330W, improved from the earlier 300W version .

Data Information

FAQ

Q: What do the LEDs on the front panel of the RPS6U power supply indicate for troubleshooting?

A: The RPS6U rack power supply has four status LEDs on its front panel that provide critical diagnostic information .

IN (AC or DC) LED (Green): Indicates that the external mains supply is present and within the normal range. This LED should be ON during normal operation .

+5V, +12V, -12V LEDs (Yellow): Indicate that the corresponding internal supply voltages are being generated and are within the normal range. These LEDs should also be ON during normal operation .

Troubleshooting:An LED that remains OFF indicates a problem with that specific power supply output or the input supply .

Q: In a dual RPS6U configuration, how does the system determine which power supply is active during redundant operation?

A: In redundant mode (two RPS6U units installed), both power supplies are active simultaneously and share the load. The VM600 ABE04x backplane is designed with OR-ing diodes on the power rails, which allow both supplies to contribute to the total current demand. If one supply fails or is switched off, the OR-ing topology automatically isolates the faulty unit, and the remaining supply continues to provide 100% of the required power without any manual intervention or control signal. There is no “master/slave” arbitration — the redundancy is passive and hardware-based, ensuring extremely fast failover (microseconds).

Q: Can the VM600 RPS6U power supplies be hot-swapped without powering down the entire ABE04x rack?

A: No. The VM600 RPS6U series is not designed for hot-swap (hot-plug) capability. The rack must be fully powered off before inserting or removing an RPS6U power supply. This is because the high-current DC connectors to the VME backplane are not rated for repeated make/break under load, and the backplane lacks the necessary inrush current limiting circuitry for live insertion. To replace a failed unit in a redundant configuration, the entire rack must be shut down — redundancy ensures the system continues running until a scheduled maintenance window, but does not permit live replacement.

Q: What external monitoring signals are available from the RPS6U for integration into a plant-wide control or alarm system?

A: Each VM600 ABE04x rack provides a “power supply check relay” output on the rack’s rear panel. This relay is energized when both (or the single) RPS6U power supply is operating normally and all output voltages (+5 VDC, ±12 VDC) are within specification.
