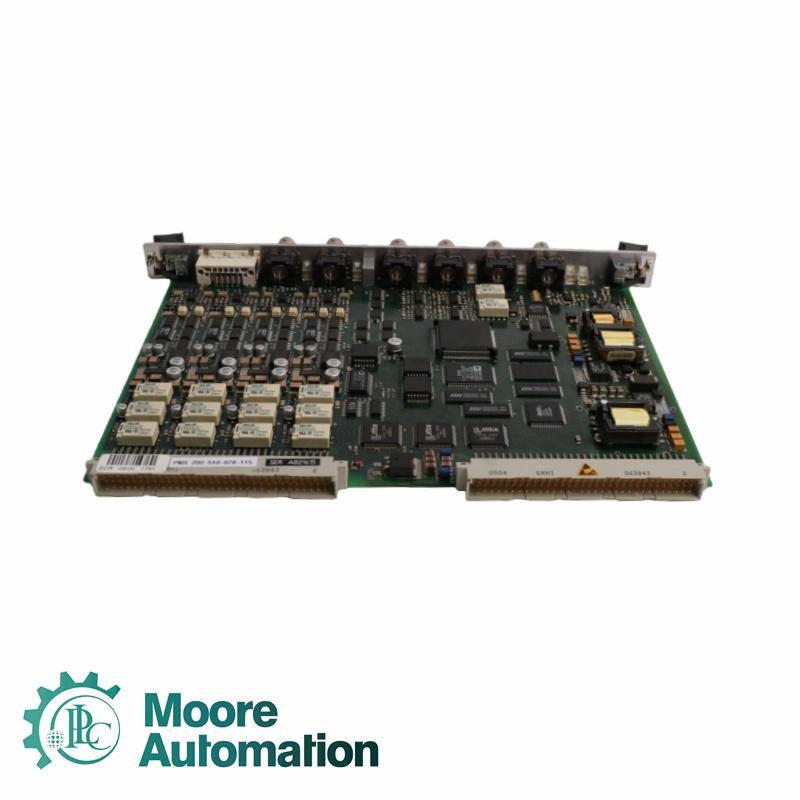

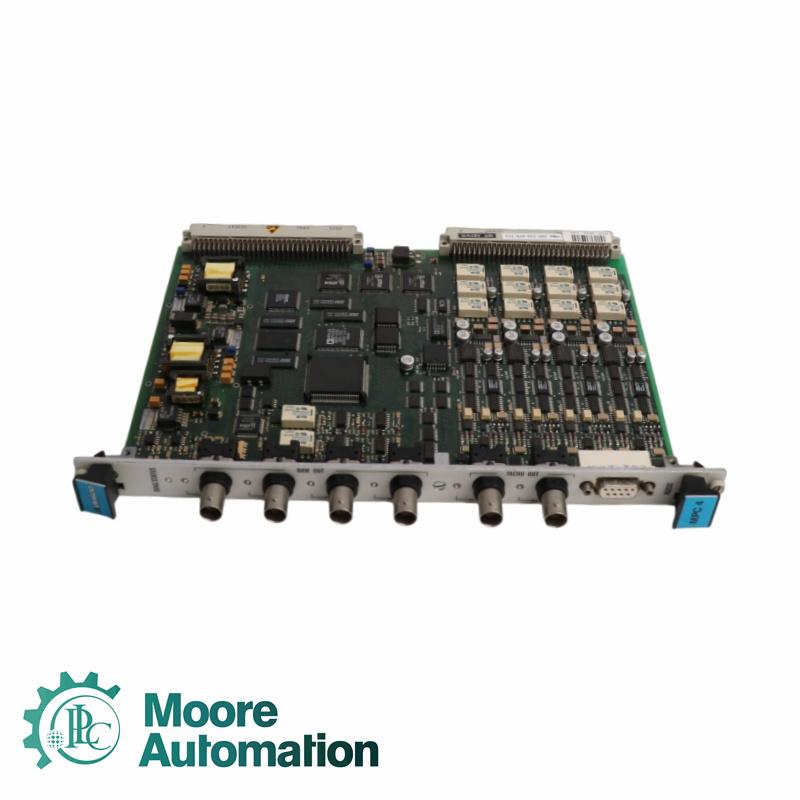

VIBRO METER VM600 MPC4 200-510-078-115 Machinery Protection Card

Sale Manager: John Yang
Email: sales3@askplc.com
Mobile(WhatsApp):  86-18150117685

Part Number: VM600 MPC4 200-510-078-115

Number of Inputs: 4 per MPC4 card
DC Range: 0 to +20 V or 0 to −20 V
AC Range: ±10 V max.
Common Mode Voltage Range: −50 to +50 V
CMRR: >60 dB at 50 Hz
Crosstalk: −72 dB
Input Impedance: 200 kΩ
Current Input Range DC: 0 to 25 mA
Current Input Range AC: ±8 mA max.
Analog Frequency Range: DC to 60 kHz (−3 dB)
Analog AC Frequency Range (No Integration): 0.1 Hz to 10 kHz
Analog AC Frequency Range (With Integration): 2.5 Hz to 10 kHz
Current Measuring Resistor: 324.5 Ω
Output Impedance: 50 Ω
Analog Frequency Range (Load >1 MΩ): DC to 10 kHz (−0.1 dB)
Analog Frequency Range (Load >200 kΩ): DC to 10 kHz (−0.2 dB)
Analog Frequency Range (High): DC to 40 kHz (−3 dB)
Operating Temperature: −25 to 65°C (−13 to 149°F)
Storage Temperature: −40 to 85°C (−40 to 185°F)
Operating Humidity: 0 to 90% non-condensing
Storage Humidity: 0 to 95% non-condensing

Long Description about VM600 MPC4 200-510-078-115:

The MPC4 machinery protection card is the central element in the VM600 series machinery protection system (MPS), from Meggitt’s Vibro-Meter® product line. This very versatile card is capable of measuring and monitoring up to four dynamic signal inputs and up to two speed inputs simultaneously. The dynamic signal inputs are fully programmable and can accept signals representing acceleration, velocity and displacement (proximity), among others. On-board multichannel processing allows measurement of various physical parameters, including relative and absolute vibration, Smax, eccentricity, thrust position, absolute and differential housing expansion, displacement and dynamic pressure. Digital processing includes digital filtering, integration or differentiation (if required), rectification (RMS, mean value, true peak or true peak-to-peak), order tracking (amplitude and phase) and measurement of the sensor-target gap.

1.What is the VM600 MPC4 200-510-078-115?

It is a Machinery Protection Card.

2.Do you have it in stock?

Yes, right now we have Bently Nevada VM600 MPC4 200-510-078-115 in stock ready for shipment, we can support video inspection.

3.Why can't I see a price for this VM600 MPC4 200-510-078-115?

In addition to "new original" " units.we also specialize in the selling "discontinued" and hard to find industrial automation parts which tend to have a fluctuating market value. These fluctuations may make it difficult for us to provide accurate daily prices for parts on our website. Therefore, in an effort to ensure that we always provide you with the best and most accurate price available, our team will source and price your part on an enquiry-by-enquiry basis.
