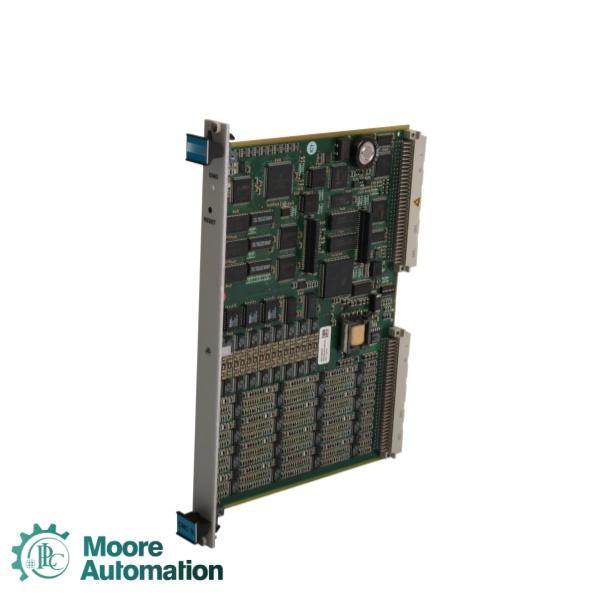

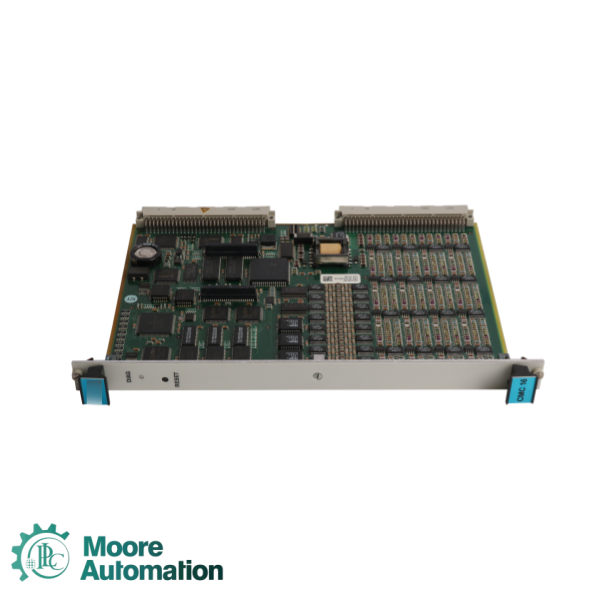

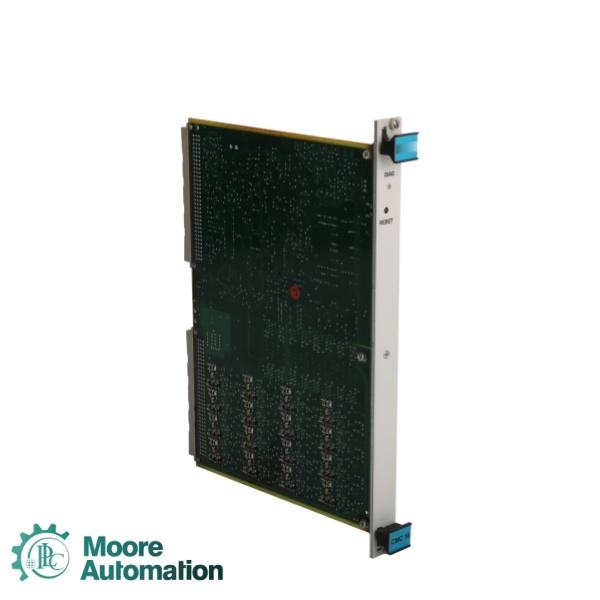

VIBRO METER VM600 CMC16 200-530-025-014 Condition Monitoring Card

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

Brand:
Other
Order(MOQ):
1
Payment:
T/T
Product Origin:
Switzerland
Color:
Brand New
Shipping Port:
Xiamen
Product Origin:
Switzerland
Lead Time:
3-5 days

Product Detail

Contact info
Sales manager:	Yuki
Email:	sales6@askplc.com
Whatsapp:	+86 17359287459

Product info
Brand:	VIBRO METER
Product Number:	VM600 CMC16 200-530-025-014
Describe:	The Vibro-Meter CMC16 (Order No.: 200-530-025-014) is a Condition Monitoring Card and the central element in Vibro-Meter's VM600 series Condition Monitoring System (CMS) . This intelligent front-end Data Acquisition Unit (DAU) is used for high-precision vibration monitoring and machinery protection in critical rotating equipment .

Data info
Dynamic Channels:	16 individually configurable
Tacho/Speed Channels:	First 4 channels configurable as tacho inputs
Process Value Channels:	Last 12 channels configurable as process values
ADC Resolution:	24-bit
Sampling Rate:	Up to 102.4 kHz
Anti-aliasing Filters:	16 parallel programmable tracked filters
Frequency Range:	1 Hz to 10 kHz
FFT Resolution:	Up to 3200 lines
Frequency Bands per Channel:	10 fully configurable bands
Alarms per Band:	6 configurable alarms with hysteresis deadbands
Speed Range:	15 – 30,000 RPM
Operating Temperature:	-20°C to +70°C

Application
Steam Turbines:	Whether supporting a 150 kW single‑stage mechanical drive turbine or a 1200 MW compound nuclear unit, the CMC16 integrates seamlessly with a full range of sensors, centralized or distributed protection systems, and condition monitoring software. It ensures maximum reliability and performance for steam turbines of all sizes.
Gas Turbines:	CMC16 monitors not only vibration but also combustion dynamics. It supports industrial, heavy‑duty, and aero‑derivative turbines, as well as their driven equipment, offering a true plant‑wide solution.
Nuclear Power:	Built for harsh environments, the CMC16 works with robust sensors that can withstand extreme conditions. It supports both voltage‑mode and current‑mode signal transmission, providing flexibility for noisy environments and long cable runs. For BWR plants or high‑radiation areas, the Vibro‑meter factory can provide customized assistance.

Brand new in sealed box,warranty period from the date of acceptance of 12 months.

FAQ
Q: In a dual RPS6U configuration, how does the system determine which power supply is active during redundant operation?	In redundant mode (two RPS6U units), both power supplies are active and share the load. The ABE04x backplane uses OR-ing diodes on the power rails, allowing both to contribute to the total current. If one supply fails or is switched off, the OR-ing topology automatically isolates it, and the remaining supply provides 100% of the power with no manual intervention or control signal. There is no master/slave — the redundancy is passive and hardware-based, ensuring microsecond failover.
Q: Can the VM600 RPS6U power supplies be hot-swapped without powering down the entire ABE04x rack?	No. The VM600 RPS6U series does not support hot-swap. The rack must be fully powered off before inserting or removing a power supply. This is because the high-current DC connectors are not rated for live disconnection under load, and the backplane lacks inrush current limiting for hot-plug. Even in a redundant configuration, the entire rack must be shut down to replace a failed unit—redundancy keeps the system running until a scheduled maintenance window, but does not allow live replacement.
Q: What external monitoring signals are available from the RPS6U for integration into a plant-wide control or alarm system?	A: Each VM600 ABE04x rack provides a “power supply check relay” output on the rack’s rear panel. This relay is energized when both (or the single) RPS6U power supply is operating normally and all output voltages (+5 VDC, ±12 VDC) are within specification.
