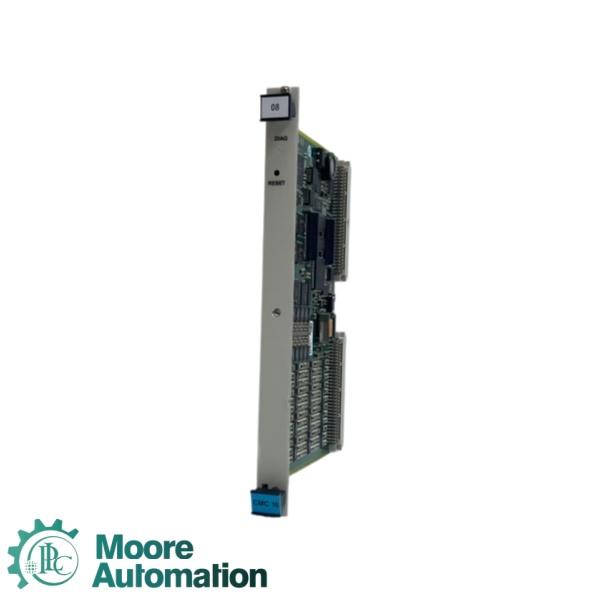

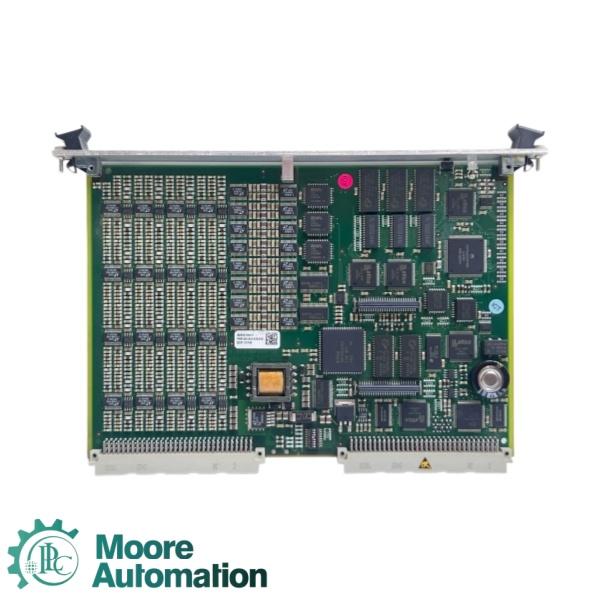

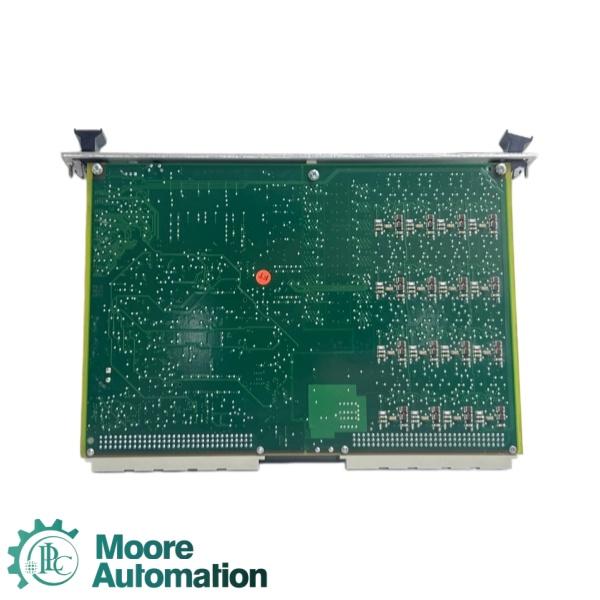

VIBRO METER VM600 CMC16 200-530-022-014 Machinery Protection Controller

Contact Yuki

Email: sales6@askplc.com

WhatsApp: +8617359287459

Product Details

The Vibro-Meter VM600 CMC16 200-530-022-014 is a highly specialized, high-capacity Communications Management Controller designed strictly as the central safety and diagnostics core for critical industrial rotating machinery. Engineered to occupy a standard 16-slot chassis, this individual unit integrates and processes high-frequency diagnostic streams from up to 16 localized input/output sub-modules into a unified, high-integrity logic system. Featuring a Triple Modular Redundancy (TMR) architecture powered by three PowerPC CPUs with hardware-based voting, the 200-530-022-014 hardware executes mission-critical safety protection algorithms.

(1) Power Supply & Redundancy: At a nominal voltage of 24 VDC.

(2) Processor Architecture: Built with a Triple PowerPC 750FX processor running at a clock speed of 800 MHz.

(3) Memory & Hardware Storage: Equipped with 4 GB of DDR3 ECC RAM and a built-in 32 GB SSD.

(4) Communication Interface: Features 4× 10GbE ports alongside 2× RS485 serial communication ports.

(5) Environmental & Temperature Tolerances: Rated for operational survival under severe temperatures ranging from -30°C to +70°C.

Application

❖ Critical Turbine Overspeed & Vibration Protection: Deployed directly as the primary hardware guard for large-scale gas, steam, and hydro turbines, triggering instant 1 ms safety trips during catastrophic shaft vibration spikes or sudden overspeed excursions.

❖ DCS/PLC Security Gateway Data Streaming: Acts as a secure, high-bandwidth bridge that seamlessly packages raw waveforms and machine states over 10GbE fiber lines directly into Distributed Control Systems (DCS) using secure protocols like Modbus TCP and EtherNet/IP.

❖ Offshore & Marine Propulsion System Isolation: Utilized across maritime drilling platforms and naval vessels due to its DNV-GL marine rating and extreme 15g vibration resistance, ensuring unwavering machinery protection in corrosive, high-vibration maritime engine rooms.

Faq

Q1: What is the core market positioning of the Vibro-Meter brand in industrial monitoring?

A1: Vibro-Meter is globally recognized as the premium pioneer in high-reliability machinery protection and condition monitoring systems. Unlike standard commercial instrumentation, Vibro-Meter focuses strictly on critical, high-availability assets—such as large-scale heavy-duty gas turbines, steam turbines, nuclear reactors, and complex aerospace propulsion systems. Its reputation is built on delivering "fail-safe" sensors and protection hardware that operate without interruption under extreme environmental stresses.

Q2: What sets Vibro-Meter's sensing technology apart in extreme-temperature environments?

A2: Vibro-Meter is an industry leader in high-temperature piezoelectric technology, specifically utilizing their proprietary VC2-type single-crystal materials. Standard commercial sensors degrade or experience severe thermal drift when temperatures exceed 150°C. Vibro-Meter's specialized dynamic pressure sensors (like the CP series) and accelerometers (like the CA series) can operate continuously at temperatures up to 700°C (1292°F). This allows them to be mounted directly inside active gas turbine combustion chambers or nuclear containment vessels where regular sensors would immediately fail.

Q3: How does Vibro-Meter handle machinery protection versus condition monitoring?

A3: Vibro-Meter approaches asset management through a unified hardware architecture that simultaneously handles two distinct functions:

· Machinery Protection: Managed by highly reliable, redundant hardware modules (such as the VM600 rack system) that comply with strict API 670 and SIL 2 / SIL 3 safety standards. It triggers automatic, millisecond-fast machine shutdowns if vibration levels exceed catastrophic limits.

· Condition Monitoring: Managed by advanced software platforms (like VibroSight®). It processes raw diagnostic data, tracking long-term trends, shaft centerlines, and spectral analysis to predict mechanical wear and prevent unplanned maintenance.
