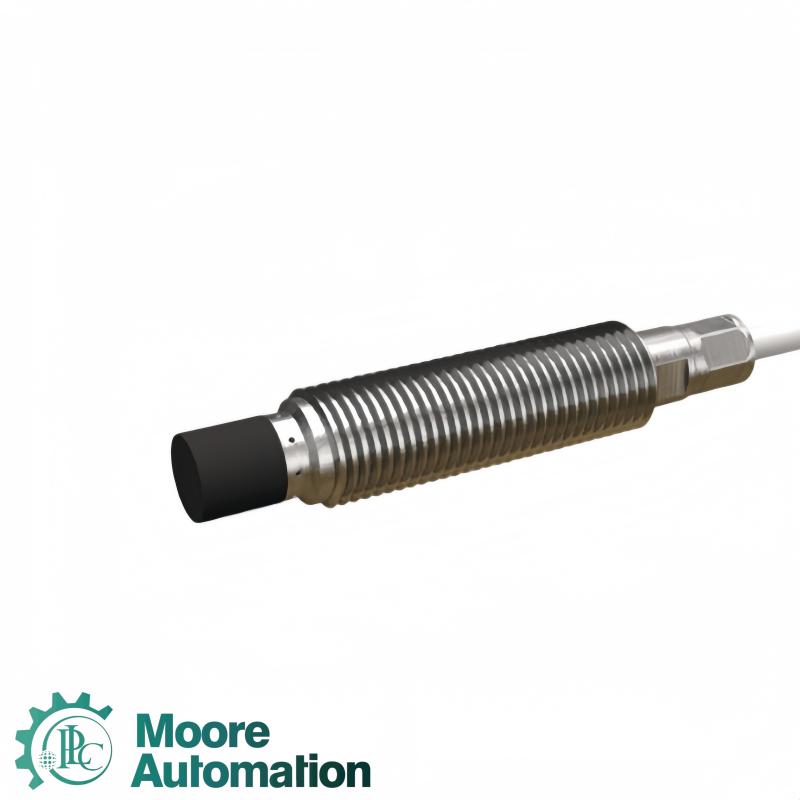

 Vibro-Meter TQ403 111-403-000-013 A1-B1-C036-D000-E100-F1-G098-H10 Proximity Sensor
TQ403 111-403-000-013 A1-B1-C036-D000-E100-F1-G098-H10

Vibro-Meter TQ403 111-403-000-013 A1-B1-C036-D000-E100-F1-G098-H10 Proximity Sensor

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

  • Item NO.:

    111-403-000-013

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    Switzerland

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Warranty:

    1 year

  • Product Origin:

    Switzerland

  • Lead Time:

    3-5 days
Contact Us

  • Product Detail

Specifications
The TQ403 111-403-000-013 A1-B1-C036-D000-E100-F1-G098-H10 is a standard-mount proximity sensor from the Vibro-Meter product line. The order code specifies a standard-environment M20 × 1.5 sensor with a 36 mm body, 10 m integral cable, flexible protective hose and 10 m total system length for non-contact shaft vibration and position measurement.
Product typeStandard-mount proximity sensor
Ordering number111-403-000-013
Measurement range12 mm
EnvironmentA1=Standard
External threadB1=M20 × 1.5
Body lengthC036=36 mm
Unthreaded lengthD000=0 mm
Integral cable lengthE100=10 m
Optional protectionF1=Flexible protective hose; no connector protector
Protective hose lengthG098=9.8 m
Total system lengthH10=10 m
Sensor protectionIP68 at sensor tip and integral cable
Application Industry
01
Turbine shaft monitoringMeasures relative shaft vibration and axial position without mechanical contact.
02
Large rotating machinerySuitable for generators, compressors, pumps and hydraulic turbines.
03
Machinery protection systemsIntegrates with a compatible extension cable and signal conditioner.
04
Maintenance replacementSupports exact configuration matching through the complete option code.
FAQ
Does the quoted model include the complete measurement chain?
The TQ403 is the proximity sensor. Confirm separately whether the EA403 extension cable and IQS450 signal conditioner are included.
What measurement range does TQ403 provide?
Official Meggitt documentation identifies the TQ403 as a 12 mm measurement-range proximity sensor.
What does E100-H10 specify?
E100 specifies a 10 m integral cable and H10 specifies a 10 m total system length.
Why must the complete option code be checked?
Thread, body length, cable length, protection and system length are defined by the option code and must match the installation.
Can Moore Automation help verify the configuration?
Yes. We can compare label photographs and the complete order code before shipment and provide available supporting documents.
