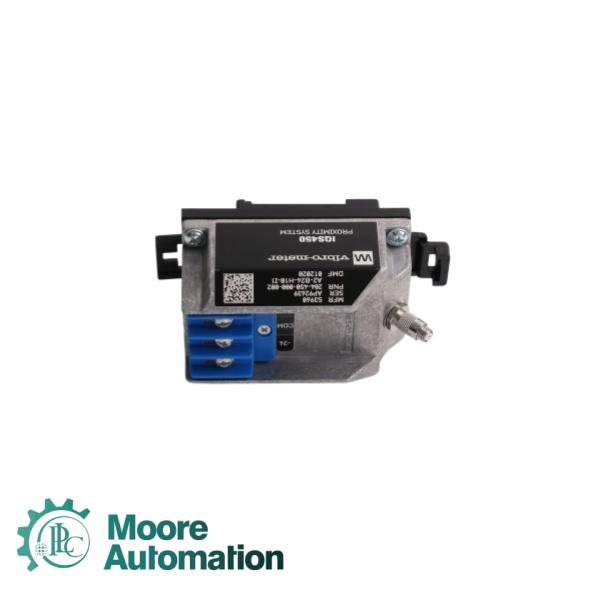

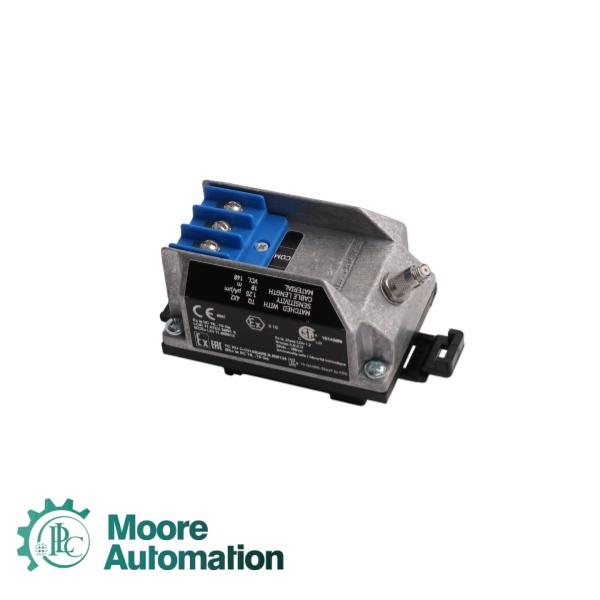

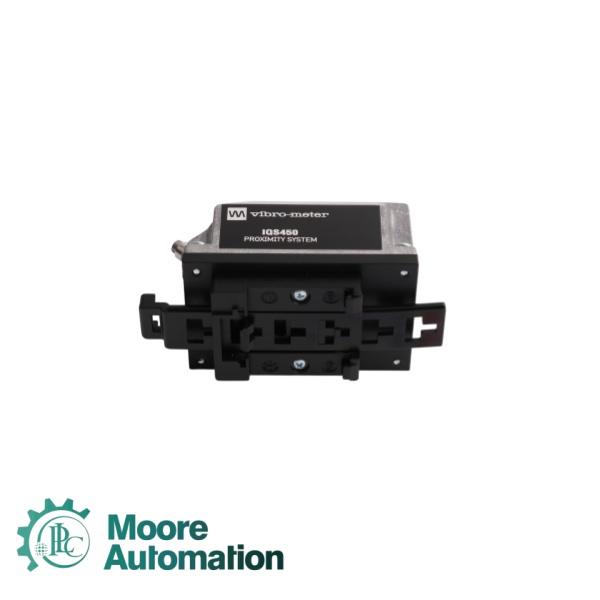

Vibro-meter IQS450 S3960 204-450-000-002-A1-B21-H5-I0 proximity measurement system

Total System Length (H5): 5 meters

Installation Type (I0): Standalone signal conditioner only

Power Supply Voltage Input: −18 VDC to −30 VDC (typically −24 VDC)

Power Supply Current Consumption: Max 25 mA

Signal Output Type: 3-wire voltage output configuration

Output Voltage at Minimum Gap: −1.6 V

Output Voltage at Maximum Gap: −17.6 V

Dynamic Range Voltage: 16 V

Output Impedance: < 100 Ω

Operating Temperature Range: −35 °C to +85 °C

Storage Temperature Range: −40 °C to +90 °C

Q1: What is the core market positioning of the Vibro-Meter brand in industrial monitoring?

A1: Vibro-Meter is globally recognized as the premium pioneer in high-reliability machinery protection and condition monitoring systems. Unlike standard commercial instrumentation, Vibro-Meter focuses strictly on critical, high-availability assets—such as large-scale heavy-duty gas turbines, steam turbines, nuclear reactors, and complex aerospace propulsion systems. Its reputation is built on delivering "fail-safe" sensors and protection hardware that operate without interruption under extreme environmental stresses.

Q2: What sets Vibro-Meter's sensing technology apart in extreme-temperature environments?

A2: Vibro-Meter is an industry leader in high-temperature piezoelectric technology, specifically utilizing their proprietary VC2-type single-crystal materials. Standard commercial sensors degrade or experience severe thermal drift when temperatures exceed 150°C. Vibro-Meter's specialized dynamic pressure sensors (like the CP series) and accelerometers (like the CA series) can operate continuously at temperatures up to 700°C (1292°F). This allows them to be mounted directly inside active gas turbine combustion chambers or nuclear containment vessels where regular sensors would immediately fail.

Q3: How does Vibro-Meter support modern plant digitalization and IoT frameworks?

A3: Vibro-Meter bridges traditional analog machinery protection with modern digital asset management. Their VibroSmart® distributed monitoring system allows sensors to be digitized closer to the machine using fieldbus communication (such as Modbus TCP or OPC UA). Furthermore, their VibroSight® software framework seamlessly feeds high-resolution vibration datasets into enterprise-level Data Lakes, Distributed Control Systems (DCS), and AI-driven predictive maintenance platforms, supporting the industrial transition to Industry 4.0.
