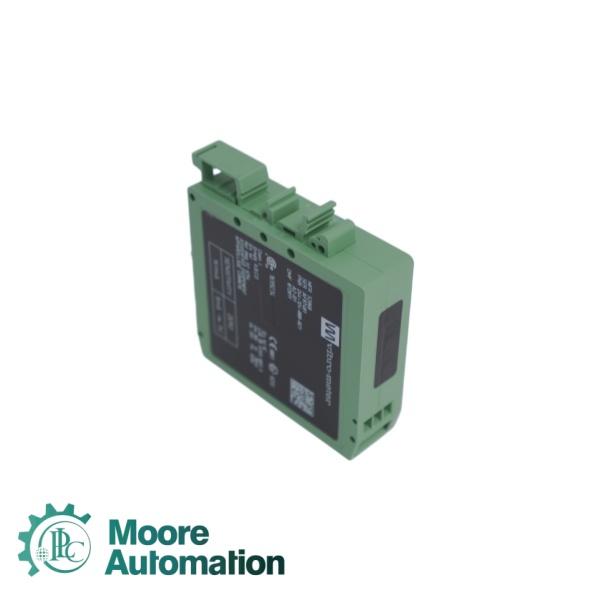

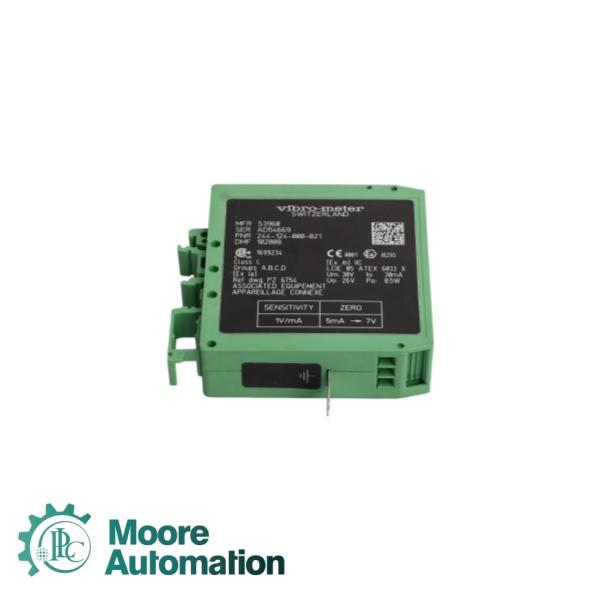

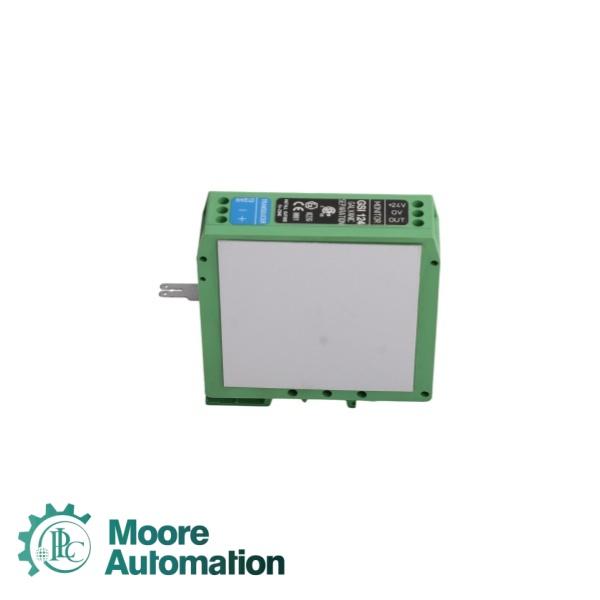

Vibro-meter GSI124 244-124-000-022 Power Supply

Input Supply Voltage (Main Power): 24 Vdc nominal

Output Voltage to Field Unit: -24 Vdc regulated power supply loop

Maximum Output Current Capacity: 30 mA

Galvanic Isolation Rating (Sensor to Monitor Side): 4,000 V RMS (4 kV RMS)

Maximum System Power Consumption: 3 W

Operating Ambient Temperature Range: 0°C to +65°C (+32°F to +149°F)

Storage Temperature Limits: -40°C to +85°C (-40°F to +185°F)

Relative Humidity Tolerance: 10% to 90% non-condensing

Q1: What is the core market positioning of the Vibro-Meter brand in industrial monitoring?

A1: Vibro-Meter is globally recognized as the premium pioneer in high-reliability machinery protection and condition monitoring systems. Unlike standard commercial instrumentation, Vibro-Meter focuses strictly on critical, high-availability assets—such as large-scale heavy-duty gas turbines, steam turbines, nuclear reactors, and complex aerospace propulsion systems. Its reputation is built on delivering "fail-safe" sensors and protection hardware that operate without interruption under extreme environmental stresses.

Q2: What sets Vibro-Meter's sensing technology apart in extreme-temperature environments?

A2: Vibro-Meter is an industry leader in high-temperature piezoelectric technology, specifically utilizing their proprietary VC2-type single-crystal materials. Standard commercial sensors degrade or experience severe thermal drift when temperatures exceed 150°C. Vibro-Meter's specialized dynamic pressure sensors (like the CP series) and accelerometers (like the CA series) can operate continuously at temperatures up to 700°C (1292°F). This allows them to be mounted directly inside active gas turbine combustion chambers or nuclear containment vessels where regular sensors would immediately fail.

Q3: How does Vibro-Meter support modern plant digitalization and IoT frameworks?

A3: Vibro-Meter bridges traditional analog machinery protection with modern digital asset management. Their VibroSmart® distributed monitoring system allows sensors to be digitized closer to the machine using fieldbus communication (such as Modbus TCP or OPC UA). Furthermore, their VibroSight® software framework seamlessly feeds high-resolution vibration datasets into enterprise-level Data Lakes, Distributed Control Systems (DCS), and AI-driven predictive maintenance platforms, supporting the industrial transition to Industry 4.0.
