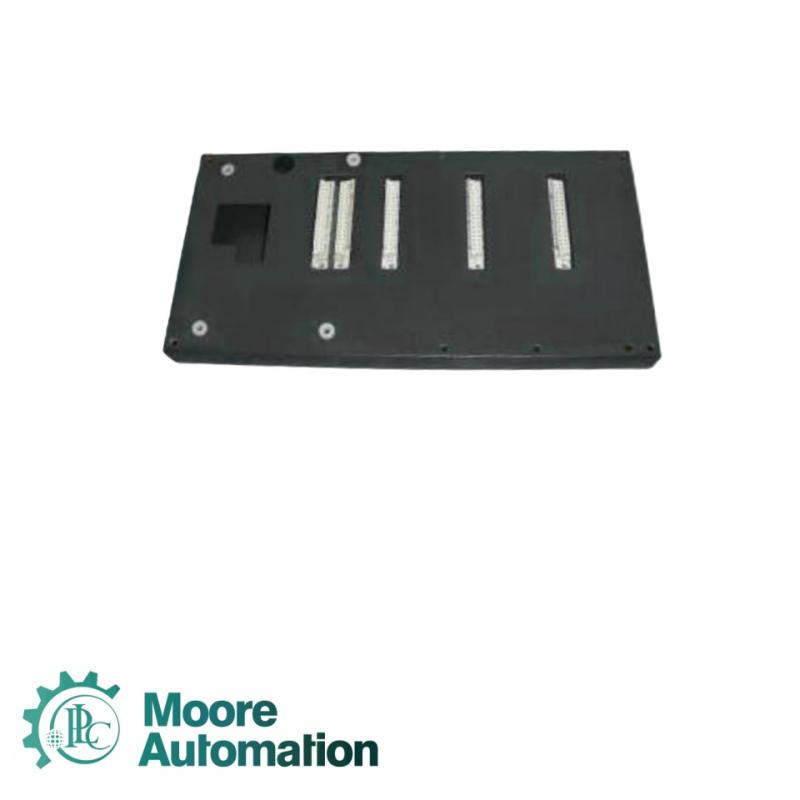

TOYONICS IPA-P MB96 Programmable Controllers

TOYONICS IPA-P MB96 Programmable Controllers

TOYONICS IPA-P MB96 Programmable Controllers

Brand:
Other
Order(MOQ):
1
Payment:
T/T
Product Origin:
South Korea
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

❖Please consult with John Yang

Email: sales3@askplc.com

Mobile(Whats App): 86-18150117685

❖About the Product

The IPA-P MB96 adopts a modular design, supporting wearable installation or cabinet installation, and can achieve multi-channel signal acquisition, amplification, isolation, and output. It has a sturdy structure and strong anti-interference ability, suitable for industrial control, measuring instruments or automation equipment in harsh environments. This product supports multiple input types and provides programmable outputs.

❖Product Data

Rated primary current (rms): 300 A
Rated secondary current: 150 mA
Supply voltage (DC): ± 12 V to ± 24 V
Measurement range (peak): ± 500 A
Overload capacity (peak): 3000 A
Maximum measured resistance (± 15 V): 20 Ω
Maximum measured resistance (± 24 V): 50 Ω
Minimum measured resistance: 0 Ω
Turn ratio: 2000:1
Measurement accuracy (@ IPN, 25 ° C): ± 0.5%
Measurement accuracy (@ IPN, -20~70 ° C): ± 1.0%
Linearity: ≤ 0.1% FS
Bias current: ± 0.25 mA
Temperature drift coefficient (-20~70 ° C): ≤ 30 µ A/° C
Response time: ≤ 1 µ s
Di/dt following ability: 50 A/µ s
Bandwidth: DC to 100 kHz
No load current consumption: ≤ 12 mA
Secondary winding resistance: 33 Ω (typical value)
Dielectric strength (primary/secondary): 3 kV AC, 50 Hz/1 min
Voltage drop: about 1 V

❖FAQ

Q1: What is the rated primary current of TOYONICS IPA-P MB96?
A1: The rated primary current of this model is 300 A (rms), suitable for medium to high current detection applications, such as frequency converters, motor drives, etc UPS、 Power supply equipment, etc.

Q2: What is the rated secondary current output of the sensor?
A2: The rated secondary current is 150 mA, and the output signal is proportional to the primary current. The voltage signal output can be achieved through an external load resistor.

Q3: What is the supply voltage range of this sensor?
A3: The IPA-P MB96 supports a wide range of power supply from ± 12 V to ± 24 V DC, and it is recommended to use ± 15 V for optimal measurement accuracy and stability.

Q4: What is the maximum measurement range of the sensor?
A4: Under normal power supply conditions, the sensor can measure a current signal of ± 500 A (peak), meeting the requirements of high current transient detection applications.
