SIEMENS RWD60 Universal Controller

SIEMENS RWD60 Universal Controller

Brand:
Siemens
Order(MOQ):
1
Payment:
T/T
Product Origin:
Germany
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

Product Specifications

Product Name: RWD60 Payment: T/T

Brand Name:SIEMENS Shipping Port: Xia men

Product Origin: Germany Lead Time：in stock

Order(MOQ):1 Delivery time: 1-3 days

John Yang: At Your Service!
Email: sales3@askplc.com	Mobile(Whats App): 86-18150117685

Product Information

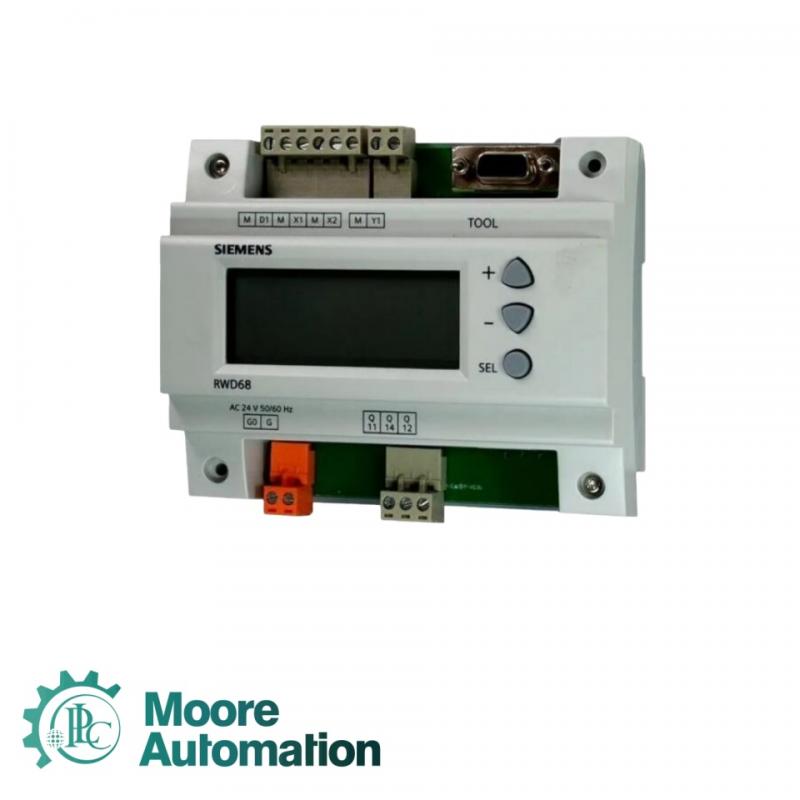

The RWD60 universal controller is designed for use in HVAC and refrigeration systems in comfort control equipment. This controller can be installed in the control cabinet, or with the help of the ARG62.21/ARG62.22 casing, installed in the air duct, on the wall, and in the computer room. The RWD60 controller is a simplified version of the RWD62 controller with dual output functionality, including all the features and functions of the RWD62 controller, but at a more competitive price. RWD60 is aimed at a wide range of single loop and single output markets.

Parameter Information

Working voltage: AC 24V ± 20%
Safety Ultra Low Voltage (SELV) Standard: EN 60730
Frequency: 50 Hz/60 Hz
Power consumption: 2.5 VA
LCD actual value and rated value: 4-digit
LG Ni 1000 accuracy: 0.5 ° C
Pt 1000 accuracy: 0.5 ° C
Active sensors: depending on the set range
Transportation standard: IEC721-3-2
Climate conditions (transportation): Class 2K3
Transportation temperature: -25... 70 ° C
Transportation humidity:<95% r.h
Mechanical conditions (transportation): Class 2M2
Operating standard: IEC721-3-3
Climate conditions (operation): Class 3K5
Operating temperature: ..50 °C
Operating humidity:<95% r.h
Shell IP code: IP 20 (according to EN 60529)
Threaded terminal block suitable for cable minimum diameter: 0.5 mm
Threaded terminal block suitable for cable maximum cross-section: 2 x 1.5 mm ² or 2.5 mm ²
LG Ni 1000 (at 0 ° C) controller measurement range: -50... 150 ° C
LG Ni 1000 diameter 0.6 mm cable maximum length: maximum value 300 m
Pt 1000 (at 0 ° C) controller measurement range: -20... 180 ° C
Pt 1000 diameter 0.6 mm cable maximum length: maximum value 300 m
Analog voltage range: DC 0... 10 V, adjustable range -100... 8000 (° C, ° F,% or no units)
Simulated voltage diameter 0.6 mm cable maximum length: maximum value 300 m
Remote setting value X2 range: DC 0... 10 V, adjustable range -100... 8000 (° C, ° F,% or no units)
Remote setting value X2 diameter 0.6 mm cable maximum length: maximum value 300 m
Digital input D1: Not applicable
Analog output Y1 range: DC 0... 10 V
Analog output Y1 maximum current: ± 1 mA
Dimensions (length x width x height): 130.0 x 106.0 x 56.5 mm
Net weight: 283 g

FAQ

Q: What is the operating voltage of the device?
A: The working voltage is AC 24V ± 20%, which complies with the Safety Extra Low Voltage (SELV) standard EN 60730.

Q: What are the frequency and power consumption of the device?
A: The device supports 50 Hz or 60 Hz and has a power consumption of 2.5 VA.

Q: What is the accuracy and type of display?
A: The device is equipped with a 4-digit LCD display, which can display actual values and set values.

Q: What temperature sensors does the device support?
A: Supports LG Ni 1000 and Pt 1000 sensors, with LG Ni 1000 accuracy of ± 0.5 ° C and Pt 1000 accuracy of ± 0.5 ° C.
