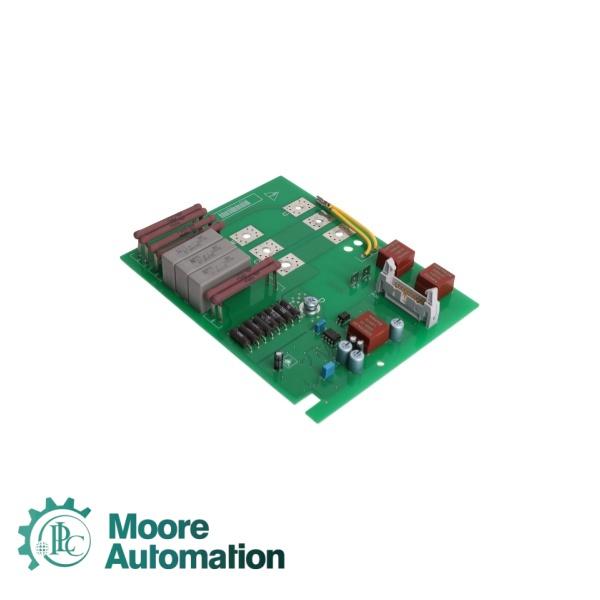

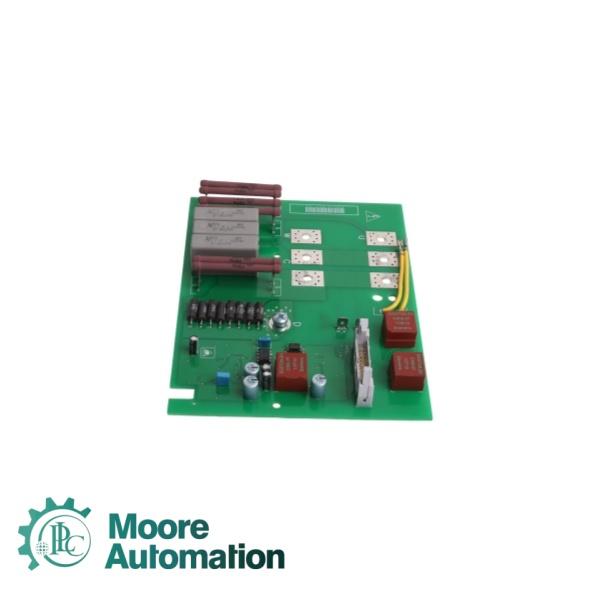

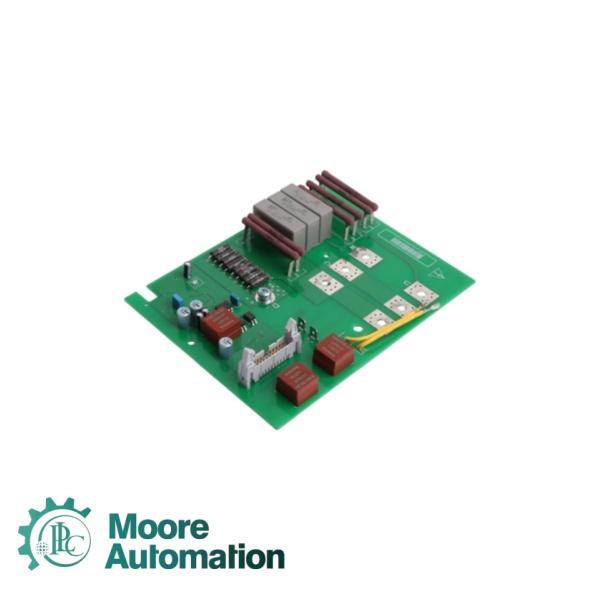

SIEMENS C98043-A7044-L1-6/RSS70-DCF-40 Printed Circuit Board

SIEMENS    C98043-A7044-L1-6/RSS70-DCF-40

      The Siemens C98043-A7044-L1-6/RSS70-DCF-40 is a high-reliability industrial PC board (printed circuit board) designed for advanced automation, drive control, or signal processing applications. Engineered for continuous operation in demanding environments, this 24V DC-powered module serves as a critical processing or interface unit within Siemens industrial systems. It combines a compact mechanical footprint with electrical isolation features to ensure stable data handling and system communication in control cabinets .

Key Features of the C98043-A7044-L1-6/RSS70-DCF-40

✜Robust Power Design: Operates on a standard 24V DC supply with a wide allowable range (18-30V DC), providing resilience against voltage fluctuations in industrial settings .

✜Electrical Isolation: Features a high isolation voltage of ≥500V DC. This protects the main control system from electrical noise and spikes common in heavy industrial environments .

✜Industrial Durability: Engineered for long-term, continuous operation (24/7) with a compact, lightweight design (0.22kg) suitable for dense control cabinets and high-vibration environments .

✜EtherNet/IP Connectivity: Supports EtherNet/IP protocol, allowing seamless integration with higher-level controllers (PLCs) for the exchange of both standard and safety data .

FAQ

Q1: Within the Siemens ecosystem, what is the primary functional role of the C98043-A7044-L1-6/RSS70-DCF-40?

A1: This board functions as a dedicated processing and control interface for specific industrial drives or automation components. Unlike a standard PLC CPU, this board is typically used within a modular drive chassis or specialized control cabinet to handle high-speed signal processing, logic sequencing, or acting as a communication gateway between the field devices and the central automation controller .

Q2: How does this module ensure system reliability during prolonged, continuous industrial operation?

A2: The module is engineered for "24/7" service with several protective features. Electrically, it utilizes a high isolation voltage (≥500V DC) to protect against surges and transients. Thermally, it maintains a low typical power draw (<15W) to minimize heat buildup. Structurally, the compact 0.22kg PCB design reduces stress from vibration, making it suitable for 365-day operation in factory environments .

Q3: What are the specific voltage tolerances for this board, and how do they protect connected equipment?

A3: While rated at 24V DC, the board tolerates an input range of 18V to 30V DC. This wide tolerance allows the board to ride through momentary brownouts (dips to 18V) without resetting. The >500V DC isolation prevents high-voltage leakage from the power side to the logic side, ensuring that a failure in the power section does not immediately destroy the control processor or data network .
