SIEMENS C98043-A7009-L1/6RY1703-0GA01 Interface Board

Welcome to inquiry

SIEMENS  C98043-A7009-L1/6RY1703-0GA01

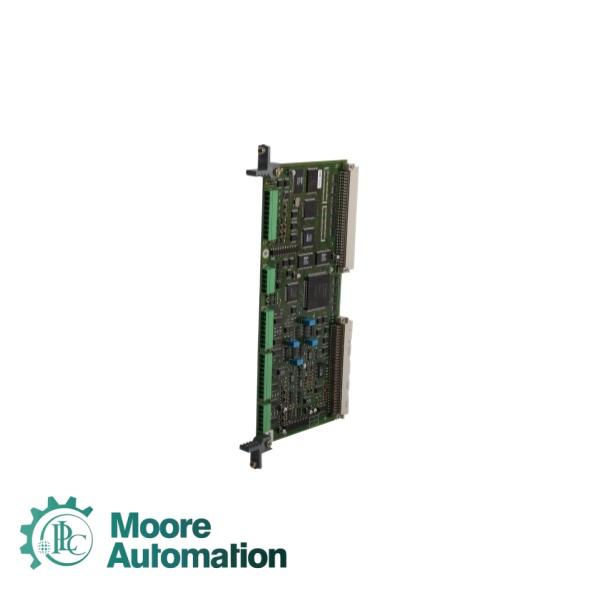

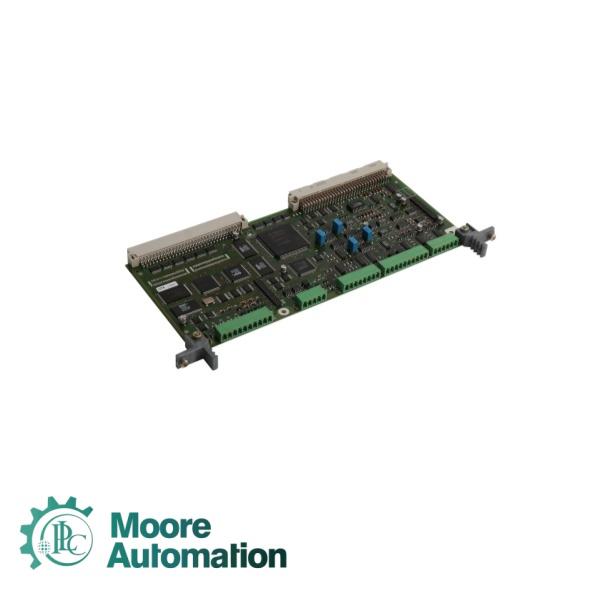

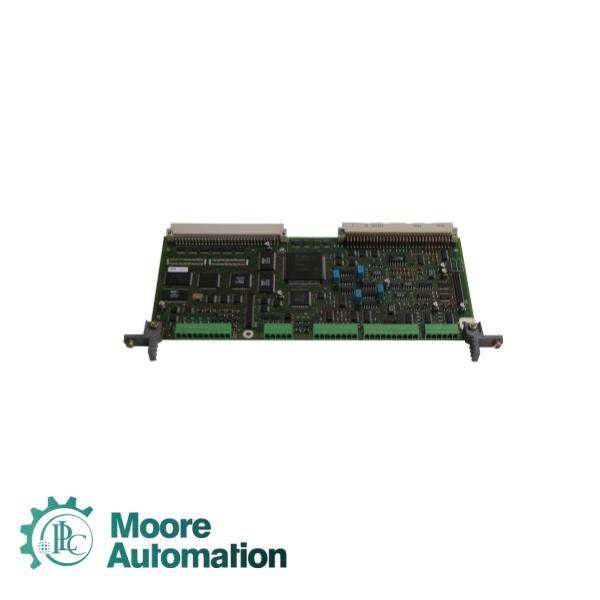

The Siemens C98043-A7009-L1/6RY1703-0GA01 is an interface board (also referred to as an expansion module or inverter power board spare part) designed for Siemens industrial drive and converter systems . This module corresponds to the earlier PG16 module and is specifically suitable for connection to SITOR power sections . The expansion module is designed to be inserted on a CPU module (PM5 or PM6). A maximum of 2 expansion modules (ITxx) can be inserted on a single CPU module, with one ITxx occupying 1 slot in addition to the slot in the CPU module .

Detailed Information

Part Numbers: C98043-A7009-L1 / 6RY1703-0GA01

Product Type: Interface Board / Expansion Module / Inverter Power Board

Input Voltage: 24 V DC (rated)

Input Phase: Three Phase

Output Power: 50 W

Output Current: 10 A

Output Voltage Range: -10 V to +10 V

Resolution: 12 bits

Pulse Frequency: Max. 1 MHz

Input Resistance: Approx. 40 kΩ

Ambient Temperature (Operating): 0 to +55℃

Features

• 12-Bit Resolution: Provides precise signal conversion (12-bit resolution) and reliable data acquisition for industrial control applications .

• High-Speed Pulse Processing: Supports a maximum pulse frequency of 1 MHz, enabling fast and efficient processing of high-speed signals .

• SITOR Power Section Compatibility: Specifically suitable for connection to SITOR power sections (Siemens thyristor/rectifier power units) .

• CPU Module Integration: Designed to be inserted on a CPU module (PM5 or PM6) for expanded functionality .

• Multi-Module Support: Supports up to 2 expansion modules per CPU module .

• Non-Floating Binary Inputs: Features 4 non-floating binary inputs for reliable digital signal acquisition .

Application

The C98043-A7009-L1/6RY1703-0GA01 interface board is used in heavy industrial drive and power conversion applications :
