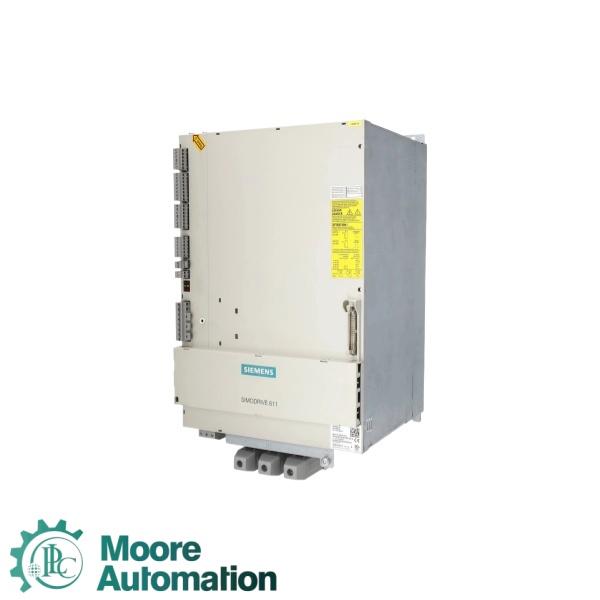

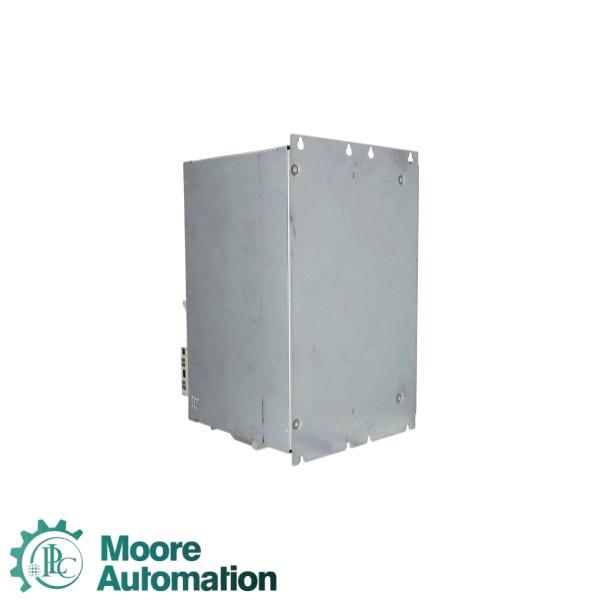

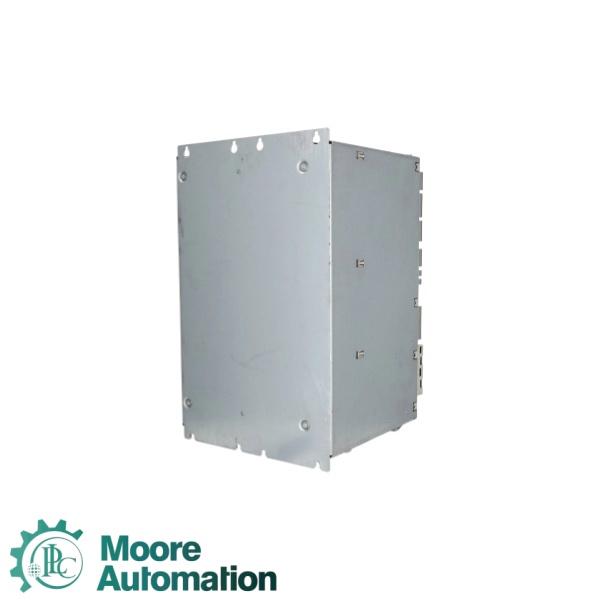

SIEMENS 6SN1145-1BB00-0FA1 VERSION A SIMODRIVE E/R-MODULE

│Contact us│

Sales manager: Yuki

Email: sales6@askplc.com

WhatsApp: +8617359287459

│Basic Information │

The Siemens 6SN1145-1BB00-0FA1 is a high-capacity Infeed/Regenerative Feedback Module (E/R-Module) that serves as the central power supply backbone for a modular SIMODRIVE 611 drive converter system. Installed at the left-most position of the drive line-up, it rectifies incoming 3-phase AC line voltage into a stabilized 600 VDC link bus voltage to feed adjacent power sections (LT-Modules). Unlike basic infeed units, this regenerative module functions bi-directionally; during machine braking phases, it acts as an inverter to feed kinetic energy back into the factory electrical grid instead of wasting it as heat through braking resistors. Operating under a Version A hardware release state with internal fan cooling, this 100 kW module provides centralized line monitoring, overvoltage protection, and electronic power distribution for high-demand, multi-axis industrial CNC machinery and heavy automated systems.

│Details│

Rated Infeed Power (Continuous): 100 kW

Peak Infeed Power (Short-Term): 130 kW (for up to 45 seconds)

Maximum Peak Infeed Power: 150 kW (for up to 4 seconds)

Regenerative Feedback Capacity (Continuous): 100 kW

Rated AC Input Line Voltage: 3-Phase 380 V / 400 V / 415 VAC (±10%)

Nominal Output DC Link Voltage: 600 VDC

Rated Output DC Link Current: 167 A

Peak Output DC Link Current: 250 A

Mains Frequency Compatibility: 47 Hz to 63 Hz

│Applications│

➟ High-Speed Main Spindle Drives: Supplies high-current electrical output to main spindle motors (1PH series) on metalcutting and woodwork routing machinery requiring high torque at high RPMs.

➟ Automated Automotive Assembly Lines: Deployed inside modular drive cabinets powering robotic positioning arms, synchronized lifters, and conveyor tracks across automotive body shops.

➟ Precision Metal Stamping and Pressing: Drives heavy-duty servo press feeders and coil handling auxiliary systems that require rapid acceleration and rigid dynamic current monitoring.
