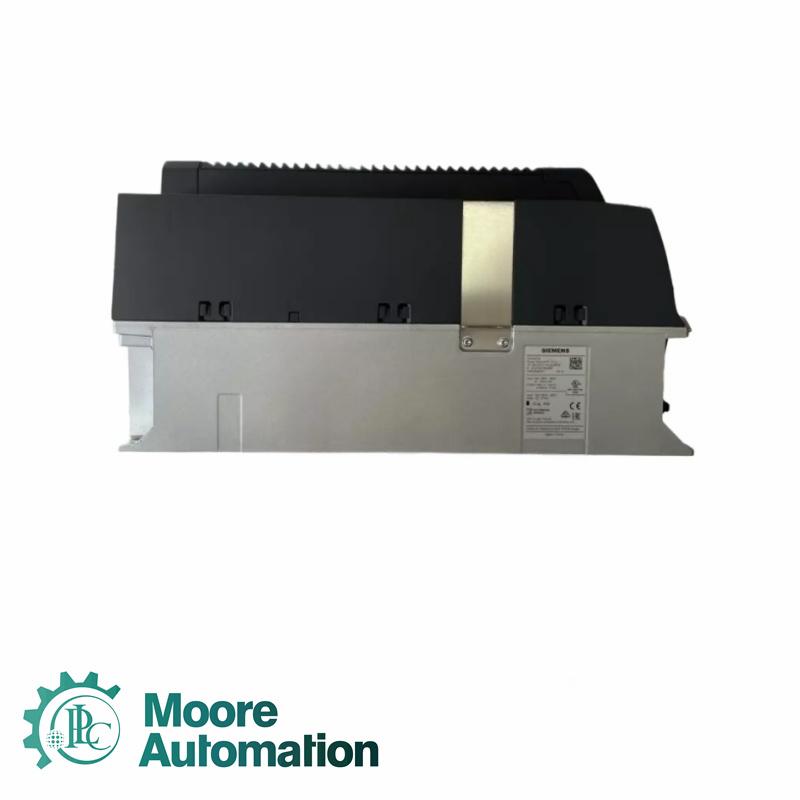

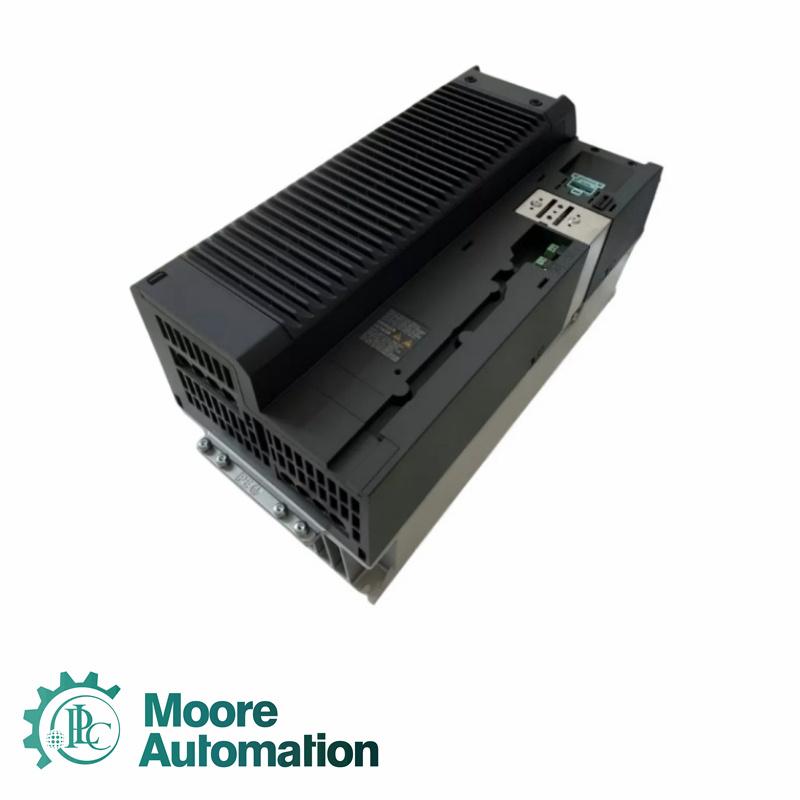

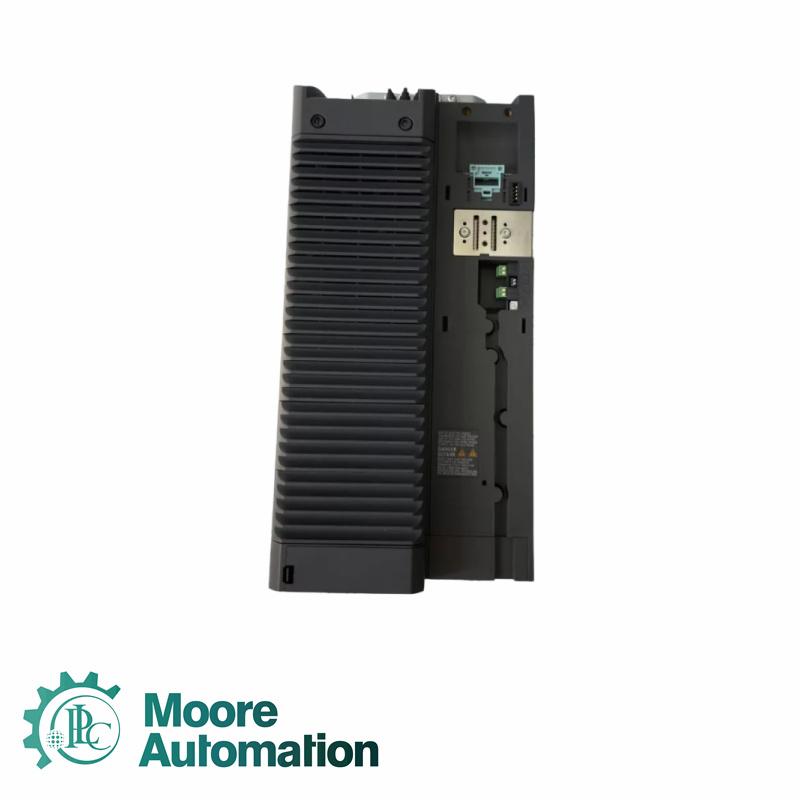

Siemens 6SL3210-1PE27-5AL0 Power module

100% Original New
1 Year Warranty
Competitive Pice
Email: sales3@askplc.com

Brand:
Siemens
Order(MOQ):
1
Payment:
T/T
Product Origin:
Germany
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

Product Summary

The 6SL3210-1PE27-5AL0 is a high-performance power module in the Siemens SINAMICS series. It integrates advanced frequency conversion technology and circuit protection logic, providing smooth and precise drive control for various industrial motors.

For more information, please contact John Yang. I can provide product photos and videos, as well as other information.

-----------------------------------------------------------------------------------------------------------------------------------------------

Email: sales3@askplc.com & Mobile(WhatsApp): 86-18150117685

Technical Details
Parameter	Value
Dimensions	20 x 47.2 x 23.7 cm
Net Weight	18.50 kg
Input Phases	3 AC
Line Voltage	380–480 V ±10%
Line Frequency	47–63 Hz
Rated Input Current (LO)	70.00 A
Rated Input Current (HO)	62.00 A
Output Phases	3 AC
Rated Output Power (LO)	37.00 kW / 50.00 hp
Rated Output Power (HO)	30.00 kW / 40.00 hp
Rated Output Current (LO)	75.00 A
Rated Output Current (HO)	60.00 A
Maximum Output Current	120.00 A
Pulse Frequency	4 kHz
Output Frequency (Vector Control)	0–200 Hz
Output Frequency (V/f Control)	0–550 Hz
Power Factor λ	0.95
Offset Factor cos φ	0.99
Efficiency η	0.98
Sound Pressure Level (1 m)	72 dB
Power Loss	1.02 kW
Filter Class (Integrated)	Class A
Cooling Type	Internal Air Cooling
Cooling Air Requirement	0.055 m³/s (1.942 ft³/s)
Installation Altitude	1000 m (3280.84 ft)
Conductor Cross-section	10.00–35.00 mm² (AWG 8–AWG 2)
Maximum Motor Cable Length (Shielded)	200 m (656.17 ft)
Maximum Motor Cable Length (Unshielded)	300 m (984.25 ft)
Degree of Protection	IP20 / UL Open Type

Frequently Asked Questions

Q: What is the rated output current of the 6SL3210-1PE27-5AL0 in High Load (HO) mode?
A: In HO mode, the rated output current is 60.00 A for heavy-load applications.

Q: Can the 6SL3210-1PE27-5AL0 meet high electromagnetic compatibility requirements?
A: Yes, it has a built-in Class A filter and complies with CE and Low Voltage standards.

Q: How does the 6SL3210-1PE27-5AL0 adapt to input grid frequency fluctuations?
A: It supports 47–63 Hz, compatible with both 50Hz and 60Hz grids.

Q: What is the maximum shielded cable distance supported by the 6SL3210-1PE27-5AL0?
A: Up to 200 m for shielded cables and 300 m for unshielded cables.

Q: How does the power factor of the 6SL3210-1PE27-5AL0 help factory energy saving?
A: Its high power factor and efficiency reduce reactive power consumption and improve energy utilization.

Moore Specializing In:

Drives

Speedtronic

Excitation

Panel Controllers

HMI and Display Panels

Control Systems (DCS, PLC, CNC)

Online monitoring and protection system

Application

Heavy machinery manufacturing plant: Drives large lifting and conveyor equipment with strong overload startup capability.

Precision machine tool plant: Ensures high-accuracy spindle motor control with stable vector drive performance.

Automated winding plant: Reduces long-term energy consumption through high-efficiency continuous operation.

Water treatment pumping station: Provides stable motor control for pump and fan loads with support for long cable layouts.

Metal rolling processing plant: Maintains high dynamic torque output in demanding industrial environments.
