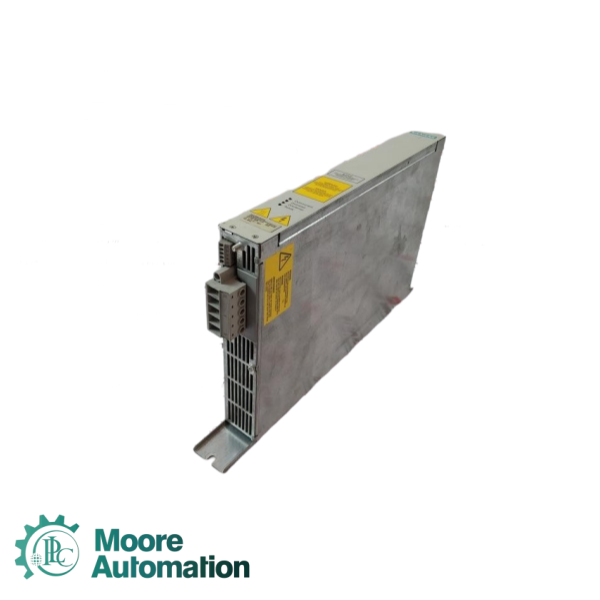

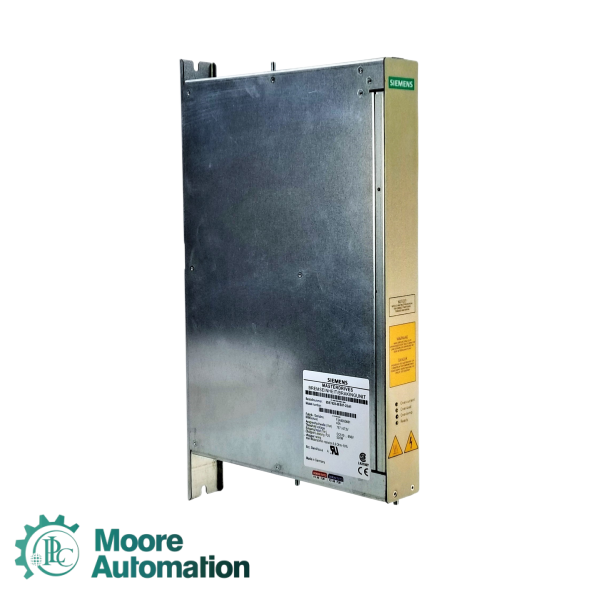

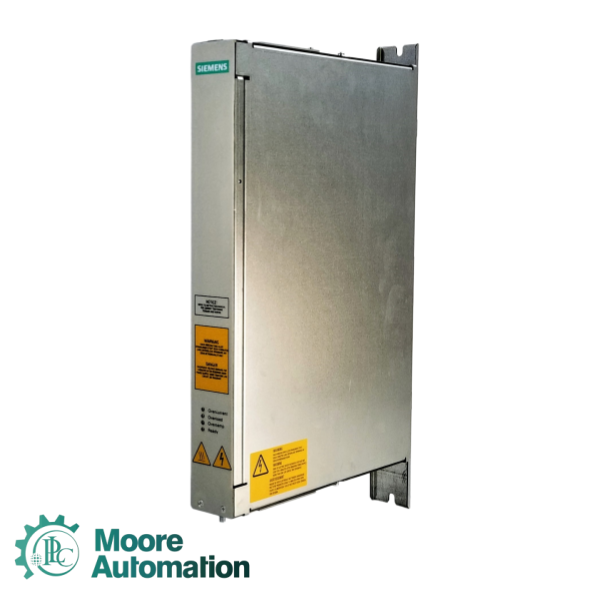

Siemens 6SE7028-0ES87-2DA1 Braking Module

Sales manager: Yuki Huang

Email : sales6@askplc.com

Skype : +86-17359287459 (Whatsapp)

Website : https://www.controldcs.com/

Let me introduce 6SE7028-0ES87-2DA1 to you

The 6SE7028-0ES87-2DA1 is a MASTERDRIVES braking module designed for regenerative braking operations.
It is specifically applied with MICROMASTER 440 drives of sizes FX and GX (90-200kW range) which lack an integrated braking chopper.
This module provides a peak braking power P20 of 50 kW (for 20s every 90s), a maximum peak power P3 of 75 kW (for 3s), and a continuous braking power PDB of 12.5 kW.
It requires an external braking resistor, ordered separately as 6SE7028-0ES87-2DC0 (8 Ω). For protection, two 3NE4121 fuses are required for installation.
The module connects to the DC link terminals (C/L+ and D/L-) of the inverter. It includes a fault signaling relay and features a factory-set response threshold of 774V DC, which can be reduced to 673V via an internal switch if needed.

More information of  6SE7028-0ES87-2DA1 Advantages

· Optional FluidLoc cable technology effectively prevents oil and other liquids from leaking through the cable interior, improving equipment safety

and reducing the risk of contamination or failure.

· The 6SE7028-0ES87-2DA1 offers flexible cable lengths: up to 3m to the inverter and 15m to the resistor.

This allows remote resistor mounting for heat dissipation, simplifies cabinet layout, and enhances system reliability and installation convenience.

· With IP20 protection and a compact 350mm depth, the 6SE7028-0ES87-2DA1 mounts conveniently next to the inverter on a wall or floor, ensuring

flexible, space-saving integration into industrial control panels.

· The 6SE7028-0ES87-2DA1 includes a fault signaling relay and overtemperature protection for both the module and resistor. These contacts can be

wired in series to automatically open the main contactor, disconnecting the drive inverter from the line supply during faults or overheating. This integrated

monitoring capability prevents damage, enhances safety, and ensures reliable system operation.
