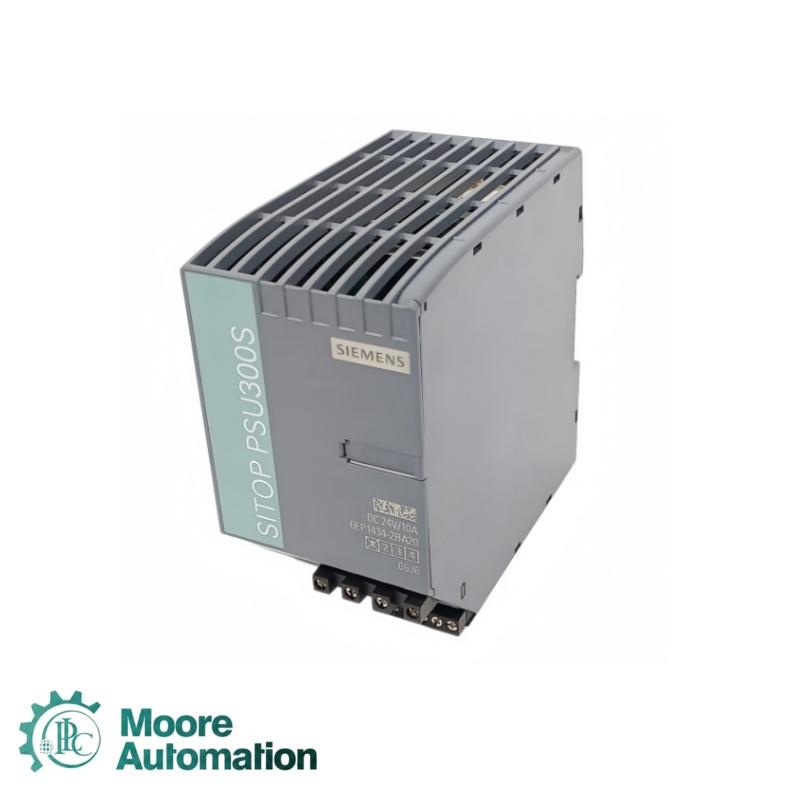

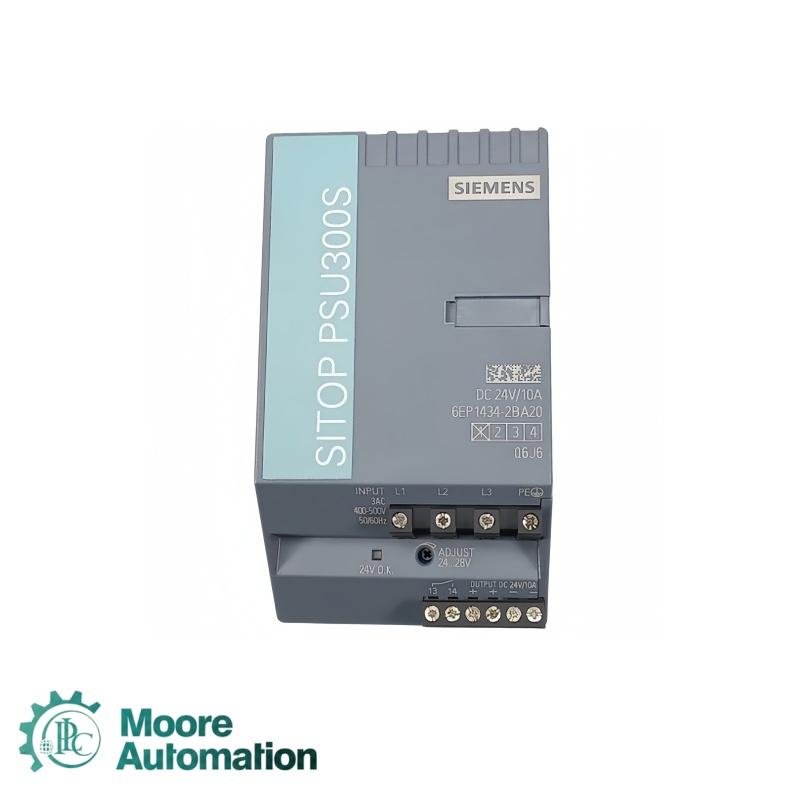

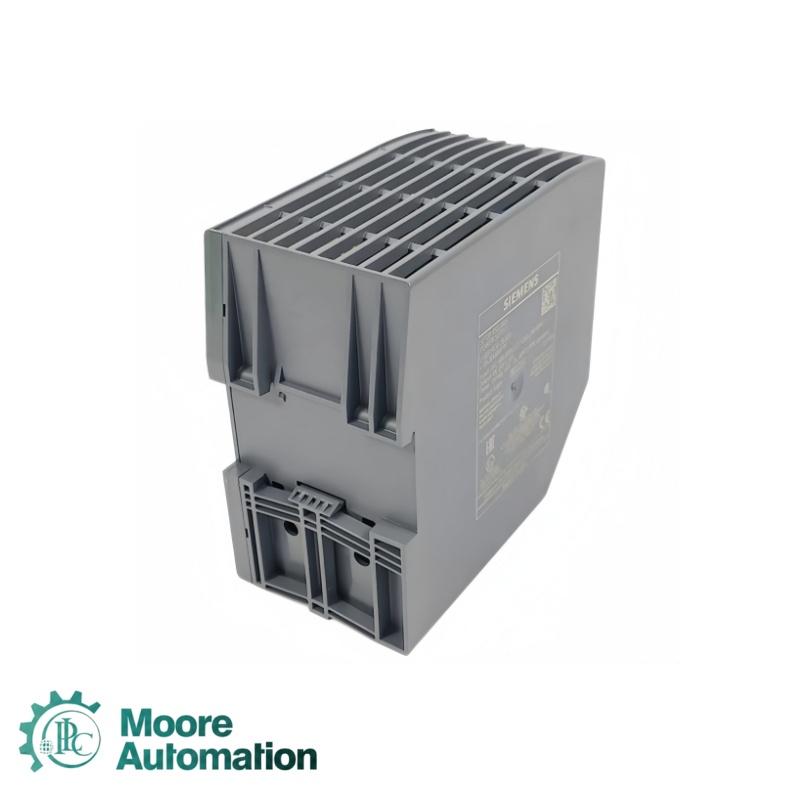

 Siemens 6EP1434-2BA20 SITOP PSU300S 24 V/10 A Stabilized Power Supply
6EP1434-2BA20 6EP1434-2BA20 6EP1434-2BA20

Siemens 6EP1434-2BA20 SITOP PSU300S 24 V/10 A Stabilized Power Supply

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Item NO.:

    6EP1434-2BA20

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    UK

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Warranty:

    1 year

  • Product Origin:

    UK

  • Lead Time:

    3-5 days
Contact Us

  • Product Detail

Specifications
The Siemens 6EP1434-2BA20 is a SITOP PSU300S stabilized three-phase power supply for automated machines and systems. It accepts a rated 400–500 V three-phase AC input and supplies a regulated 24 V DC output at 10 A. The documented wide-range input, adjustable output, overload capability and DIN-rail format support industrial 24 V control-power designs.
Product typeStabilized industrial power supply
Product familySITOP smart, SITOP PSU300S
Rated input3 AC 400–500 V
Input operating range3 AC 340–550 V
Mains frequency47–63 Hz
Rated output24 V DC
Rated output current10 A
Output adjustment24–28 V DC, maximum 240 W
Efficiency91%
Degree of protectionIP20
Dimensions (W × H × D)70 × 125 × 120 mm
Mounting35 mm DIN rail to EN 60715
Operating temperature−25 to +70 °C, natural convection
Electrical connectionScrew terminals
Application Industry
01
Automated machineryProvides regulated 24 V control power from a three-phase industrial AC supply.
02
Plant systemsSupports 24 V DC loads in machine and plant construction using a 400–500 V three-phase input.
03
Industrial control cabinetsFits 35 mm DIN-rail installations where compact three-phase control power is required.
04
High-availability 24 V designsCan be combined with documented redundancy, buffer, selectivity and DC UPS modules.
FAQ
What three-phase input supply is required for SIEMENS 6EP1434-2BA20?
The rated input is 400–500 V three-phase AC. The documented wide-range operating window is 340–550 V AC at 47–63 Hz.
Can the DC output of SIEMENS 6EP1434-2BA20 be adjusted?
Yes. The regulated output can be adjusted from 24 to 28 V DC; observe the documented maximum output power of 240 W.
How should SIEMENS 6EP1434-2BA20 be mounted inside a control cabinet?
Snap the unit onto a 35 mm DIN rail in an enclosure and maintain the natural-convection installation conditions specified in the manufacturer manual.
Which input protection should be used with SIEMENS 6EP1434-2BA20?
Use a three-pole coupled circuit breaker rated 3–16 A with characteristic C, and connect protective earth and the screw terminals as specified. Installation must be performed by qualified personnel.
Can SIEMENS 6EP1434-2BA20 be combined with modules for higher 24 V availability?
Yes. The power supply can be used with documented redundancy, buffer, selectivity and DC UPS modules. Confirm the selected module and load design against current manufacturer documentation.
