 Siemens 6ED1052-1HB08-0BA1 LOGO! 24RCE Logic Module
6ED1052-1HB08-0BA1 6ED1052-1HB08-0BA1 6ED1052-1HB08-0BA1

Siemens 6ED1052-1HB08-0BA1 LOGO! 24RCE Logic Module

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    UK

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Warranty:

    1 Year

  • Product Origin:

    UK

  • Lead Time:

    3-5 Days
Contact Us

  • Product Detail

Specifications

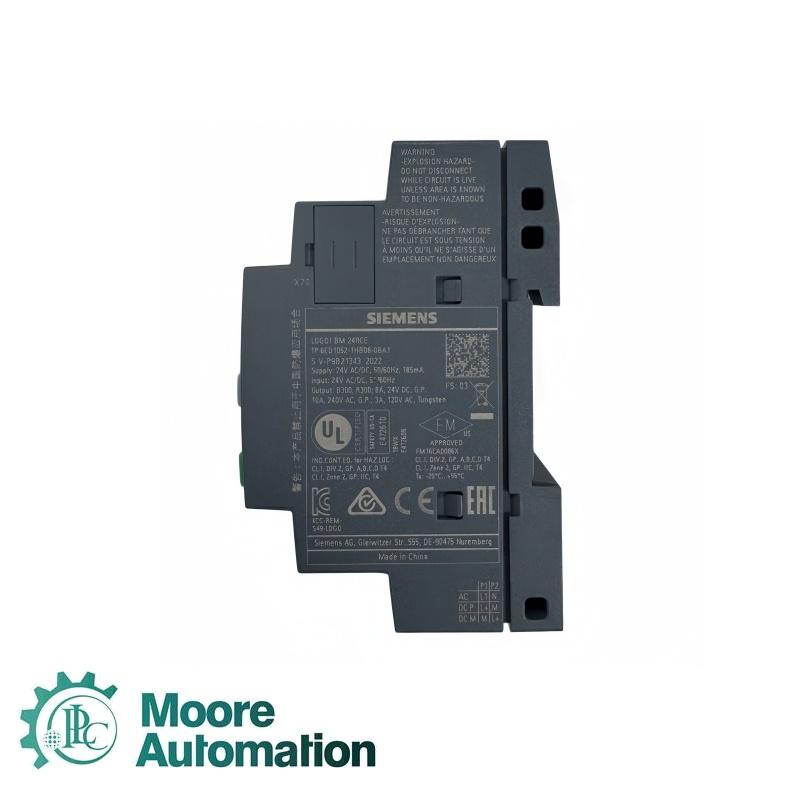

The Siemens 6ED1052-1HB08-0BA1 is a LOGO! 24RCE logic module with an integrated display, 24 V AC/DC supply, eight digital inputs, four relay outputs, Ethernet, integrated web server and support for a standard microSD card. It is modularly expandable and is engineered with LOGO! Soft Comfort V8.3 or higher.
Product typeLogic module
Product lineLOGO! 8.3 basic unit
DisplayIntegrated display
Supply voltage24 V AC/DC
Permissible DC range20.4–28.8 V DC
AC line frequency47–63 Hz
Digital inputs8
Digital outputs4 relay outputs
Resistive load per relay10 A max.
Inductive load per relay3 A max.
Program memory400 blocks
Time switches400 max., function-specific
Power reserve480 h
Mounting35 mm DIN rail, 4 spacing units
CommunicationEthernet
Memory cardStandard microSD card
Engineering softwareLOGO! Soft Comfort V8.3 or higher
Operating temperature-20 to +55 °C, no condensation
Storage/transport temperature-40 to +70 °C
Dimensions (W × H × D)71.5 × 90 × 60 mm
Application Industry
01
Compact machine controlCombines eight digital inputs and four relay outputs for small automation panels.
02
Networked control panelsUses Ethernet and the integrated web server for connected operating and monitoring tasks.
03
Time-based automationSupports function-specific time switching with a 480-hour clock power reserve.
04
Expandable logic systemsFits modular LOGO! installations on a standard 35 mm DIN rail.
FAQ
What supply must be used for 6ED1052-1HB08-0BA1?
Use a 24 V AC or DC supply. For DC operation, keep the voltage within 20.4 to 28.8 V; for AC operation, use 47 to 63 Hz.
How many onboard inputs and outputs does 6ED1052-1HB08-0BA1 provide?
The unit provides eight digital inputs and four relay outputs.
How should 6ED1052-1HB08-0BA1 be mounted in a control cabinet?
Mount the unit on a 35 mm DIN rail. It occupies four spacing units and measures 71.5 × 90 × 60 mm.
Which engineering software is required for 6ED1052-1HB08-0BA1?
Use LOGO! Soft Comfort V8.3 or higher. Older projects remain executable on the basic unit.
What relay loads can 6ED1052-1HB08-0BA1 switch?
Each relay contact is rated up to 10 A with a resistive load or 3 A with an inductive load; external fusing is required.
